RDL HR-DDA4 Digital Audio Distributor - AES/EBU and S/PDIF


  • Dale #:

    RDL-HRDDA4
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Please Note: requires PS-24AS Power Supply (sold separately)

Description

The HR-DDA4 is the ideal choice in installations requiring high quality distribution of a digital audio signal. The input and each of the four outputs support AES/EBU, S/PDIF or AES-3ID formats. The HR-DDA4 automatically detects a valid input on any of the four input jacks: S/PDIF optical, S/PDIF... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

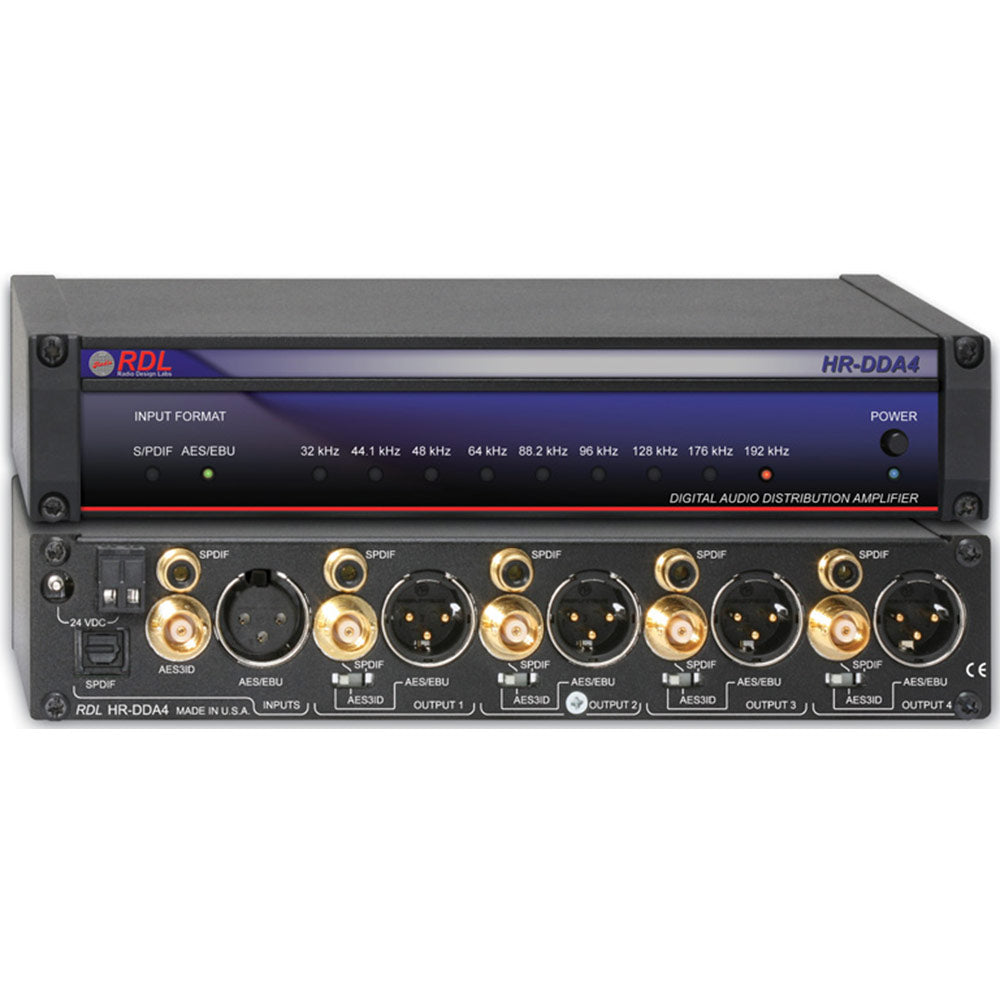

The HR-DDA4 is the ideal choice in installations requiring high quality distribution of a digital audio signal. The input and each of the four outputs support AES/EBU, S/PDIF or AES-3ID formats. The HR-DDA4 automatically detects a valid input on any of the four input jacks: S/PDIF optical, S/PDIF coaxial, AES-3ID or AES/EBU. The input is decoded, reclocked and retransmitted to four individually buffered outputs. Front-panel LEDs display the digital audio format and sample rate of a valid source received without any phase-lock or bit errors.

Each output is switch-selectable to provide an AES/EBU, S/PDIF coaxial or AES-3ID output. The switch enables the appropriate output jack and any required electrical and data format conversion. The AES/EBU input and outputs are 110 ohm terminated the S/PDIF coaxial and AES-3ID jacks are 75 ohm terminated.The HR-DDA4 is powered from 24 Vdc, which may be connected through the detachable terminal block or through the dc power jack. A front-panel power switch is provided.
    Features:
  • Digital Signal Reclocking
  • Transformer Isolated AES/EBU Input and Outputs
  • Exclusive Sure-Lok&trade Auto-Recovery Sentinel
  • Operation Up to 24 bits, 192 kHz
  • Format Conversion for Selected Output Format
  • Each Output: AES/EBU, S/PDIF or AES-3ID
  • Input: AES/EBU, Coaxial or Optical S/PDIF, AES-3ID
  • 1 x 4 Digital Audio Distribution for All Formats
  • Sample Rate Indicator
  • Digital Signal Lock Indicator for Each Input Format

RDL's proprietary Sure-Lok auto recovery supervision monitors possible causes of latch-up and reinitiates digital signal lock, bringing a high level of stability to digital audio signal distribution under the variety of conditions encountered in professional environments.

More +

Product Specs

Inputs (4):110 AES/EBU XLR, transformer isolated
S/PDIF optical 75 S/PDIF coaxial phono jack 75 AES-3ID BNC
Outputs (12):110 AES/EBU XLR (4), transformer isolated
75 S/PDIF coaxial phono jack (4)
75 AES-3ID BNC (4)
Selector (4):Rear-panel output format selector (1 per output)
Sample Rate:32 kHz to 192 kHz
Resolution:16 to 24 bits
Indicators (12):POWER LED INPUT FORMAT LEDs (2) Sample Rate LEDs (9)
Standards:AES3-2003, IEC60958
Power Requirement:GROUND-REFERENCED
24 to 33 Vdc @ 50 mA
Ambient Operating Environment:0 degrees C to 50 degrees C
