RDL HR-DSX4 Digital Audio Selector - AES/EBU and S/PDIF

Sale price$940.14 Regular price$1,253.53
Save $313.39
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.

  • Please Note: requires PS-24AS Power Supply (sold separately)


    LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

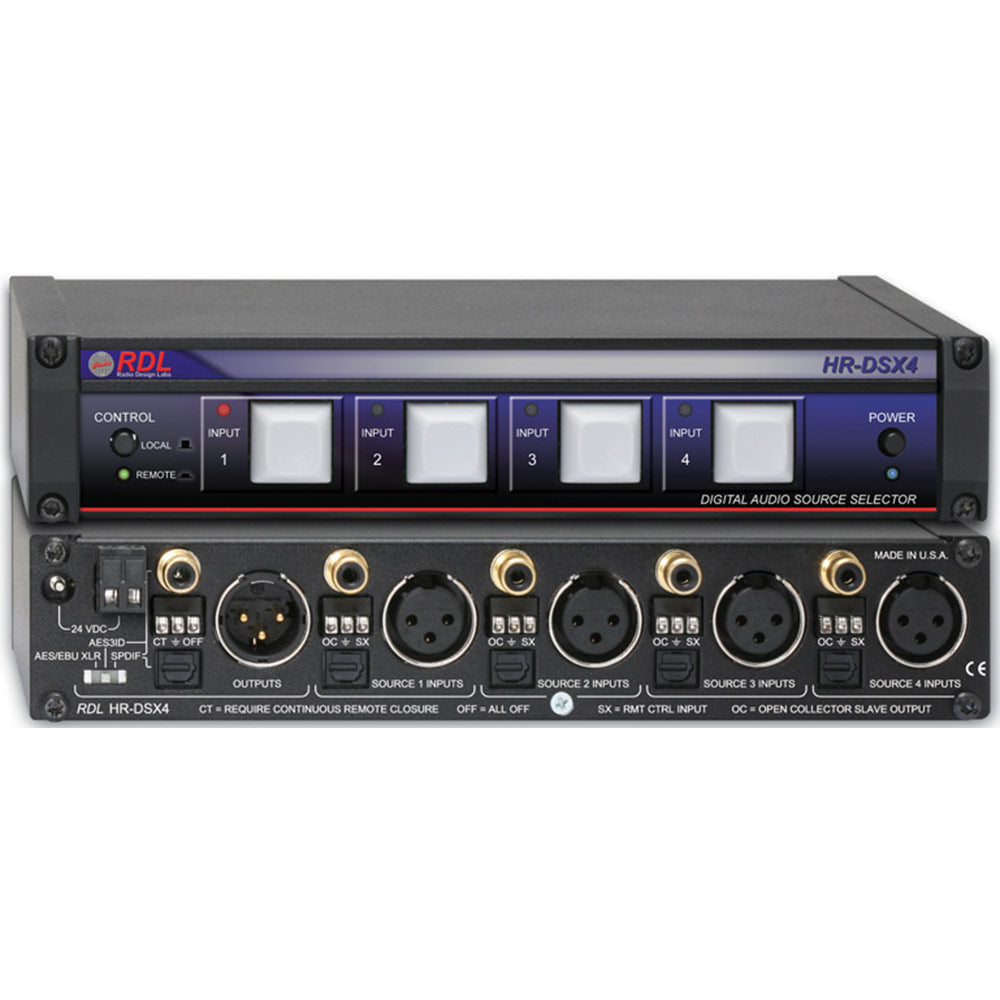

    The HR-DSX4 is the ideal choice in installations requiring high quality source selection between digital audio signals. Solid-state switching is used to select one of four inputs. Each input may be fed through one of three jacks: S/PDIF optical, S/PDIF (or AES-3ID) coaxial or AES/EBU. The output is switch-selectable to provide an AES/EBU, S/PDIF coaxial, S/PDIF optical or AES-3ID output. The switch enables the appropriate output jack and any required electrical and data format conversion. The AES/EBU inputs and output are 110 ohm terminated the S/PDIF coaxial and AES-3ID signals connect through 75 ohm terminated phono jacks. RDL™s proprietary Sure-Lok auto recovery supervision monitors possible causes of latch-up and reinitiates signal lock to provide highly stable operation in the variety of conditions encountered in professional environments.

    The front panel features four high-reliability, keyboard-style source selection pushbuttons with corresponding LEDs. Upon selecting a source, the LED lights if a valid input is present otherwise it flashes. If the button for a selected source is pushed again, all inputs are turned off. A front-panel LOCAL/REMOTE switch enables either the front-panel buttons or the rear-panel remote control terminals provided on detachable terminal blocks. In the REMOTE mode, inputs are selected by an external switch or open-collector closure to ground, which may be momentary or continuous. When a source is selected, the HR-DSX4 provides a 50 mA open-collector output to control other equipment or modules.The HR-DSX4 is powered from 24 Vdc, which may be connected through the detachable terminal block or through the dc power jack. A front-panel power switch is provided.
      Features:
    • 4 x 1 Digital Audio Selection with Signal Reclocking
    • Each Input: AES/EBU, Coaxial or Optical S/PDIF
    • Output: AES/EBU, Coaxial or Optical S/PDIF
    • Format Conversion for Selected Output Format
    • Operation Up to 24 bits, 192 kHz
    • Exclusive Sure-Lok Auto-Recovery Sentinel
    • Transformer Isolated AES/EBU Inputs and Output
    • Local or Remote Controlled Switching
    • Open-Collector Output for Selected Input
    • Input LED Flashes if Valid Input is Not Connected
    Power Requirement:GROUND-REFERENCED
    24 to 33 Vdc @ 50 mA
    Standards:AES3-2003, IEC60958
    Indicators (6):POWER LED INPUT Source Selected LED (4) REMOTE Control Mode LED
    Sample Rate:32 kHz to 192 kHz
    Resolution:16 to 24 bits
    Selector:Rear-panel output format: AES/EBU, S/PDIF or AES-3ID
    Outputs (3):110 AES/EBU XLR, transformer isolated
    S/PDIF optical 75 S/PDIF or AES-3ID phono jack
    Inputs (12):110 AES/EBU XLR (4), transformer isolated S/PDIF optical (4) 75 S/PDIF or AES-3ID coaxial phono jack (4)
    Ambient Operating Environment:0 degrees C to 50 degrees C

    The HR-DSX4 is the ideal choice in installations requiring high quality source selection between digital audio signals. Solid-state switching is used to select one of four inputs. Each input may be fed through one of three jacks: S/PDIF optical, S/PDIF (or AES-3ID) coaxial or AES/EBU. The output is switch-selectable to provide an AES/EBU, S/PDIF coaxial, S/PDIF optical or AES-3ID output. The switch enables the appropriate output jack and any required electrical and data format conversion. The AES/EBU inputs and output are 110 ohm terminated the S/PDIF coaxial and AES-3ID signals connect through 75 ohm terminated phono jacks. RDL™s proprietary Sure-Lok auto recovery supervision monitors possible causes of latch-up and reinitiates signal lock to provide highly stable operation in the variety of conditions encountered in professional environments.

    The front panel features four high-reliability, keyboard-style source selection pushbuttons with corresponding LEDs. Upon selecting a source, the LED lights if a valid input is present otherwise it flashes. If the button for a selected source is pushed again, all inputs are turned off. A front-panel LOCAL/REMOTE switch enables either the front-panel buttons or the rear-panel remote control terminals provided on detachable terminal blocks. In the REMOTE mode, inputs are selected by an external switch or open-collector closure to ground, which may be momentary or continuous. When a source is selected, the HR-DSX4 provides a 50 mA open-collector output to control other equipment or modules.The HR-DSX4 is powered from 24 Vdc, which may be connected through the detachable terminal block or through the dc power jack. A front-panel power switch is provided.
      Features:
    • 4 x 1 Digital Audio Selection with Signal Reclocking
    • Each Input: AES/EBU, Coaxial or Optical S/PDIF
    • Output: AES/EBU, Coaxial or Optical S/PDIF
    • Format Conversion for Selected Output Format
    • Operation Up to 24 bits, 192 kHz
    • Exclusive Sure-Lok Auto-Recovery Sentinel
    • Transformer Isolated AES/EBU Inputs and Output
    • Local or Remote Controlled Switching
    • Open-Collector Output for Selected Input
    • Input LED Flashes if Valid Input is Not Connected
    Power Requirement:GROUND-REFERENCED
    24 to 33 Vdc @ 50 mA
    Standards:AES3-2003, IEC60958
    Indicators (6):POWER LED INPUT Source Selected LED (4) REMOTE Control Mode LED
    Sample Rate:32 kHz to 192 kHz
    Resolution:16 to 24 bits
    Selector:Rear-panel output format: AES/EBU, S/PDIF or AES-3ID
    Outputs (3):110 AES/EBU XLR, transformer isolated
    S/PDIF optical 75 S/PDIF or AES-3ID phono jack
    Inputs (12):110 AES/EBU XLR (4), transformer isolated S/PDIF optical (4) 75 S/PDIF or AES-3ID coaxial phono jack (4)
    Ambient Operating Environment:0 degrees C to 50 degrees C
