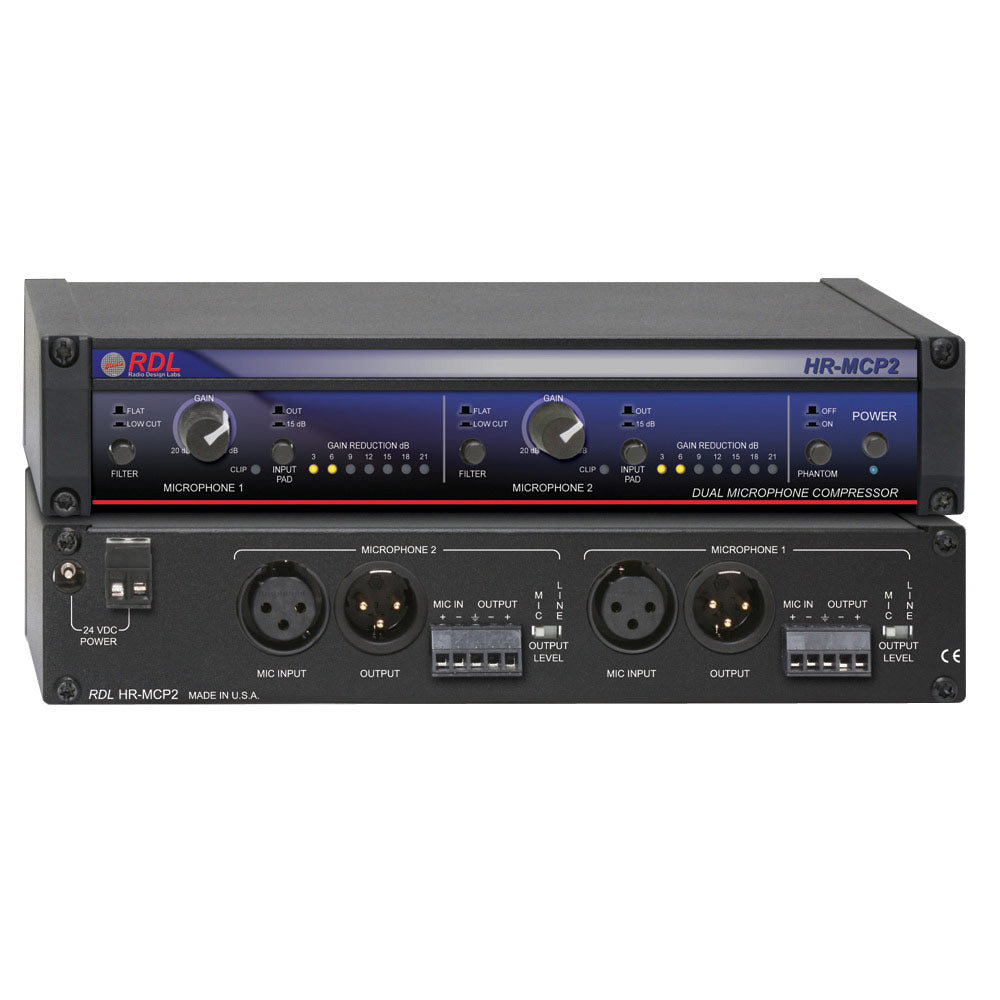

RDL HR-MCP2 2 Channel Installation Microphone Compressor


  • Dale #:

    RDL-HRMCP2
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Please Note: requires PS-24AS Power Supply (sold separately)

Description

The HR-MCP2 is a dual channel microphone compressor that produces a consistent audio output level over wide variations (up to 25 dB) in the microphone input level. Rear-panel switches allow setting each output to mic or line level. Each channel can therefore be used as a mic-level in-line compres... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The HR-MCP2 is a dual channel microphone compressor that produces a consistent audio output level over wide variations (up to 25 dB) in the microphone input level. Rear-panel switches allow setting each output to mic or line level. Each channel can therefore be used as a mic-level in-line compressor or as a microphone preamplifier with compression. The unique circuit design preserves full studio-quality low-noise performance at any gain setting. The HR-MCP2 is compatible with dynamic and condenser microphones. A front-panel switch is provided to enable 48 Vdc phantom to both microphone inputs.

Features:

  • Two Independent Microphone Input Compression Channels
  • Produces Consistent Levels from Any Microphone
  • Installs Between Microphone and Mixer or Amplifier Mic Input
  • Line-Level Outputs Permit Operation as Dual Mic Preamp
  • Controls Overloads that Cause Distortion and Clipping
  • Balanced Mic Inputs on XLR and Detachable Terminal Block
  • Balanced Outputs on XLR and Detachable Terminal Block
  • Each Output Allows Balanced or Unbalanced Connection
  • Independent Controls for Stereo or Dual Mono Operation
  • Front-Panel Gain Adjustment from 20 to 60 dB for Line Outputs
  • Switch-Selectable 15 dB Input Pads
  • Switch-selectable 48 Volt Phantom for Both Inputs
  • 7 LED Gain Reduction Meter in 3 dB Increments per Channel
  • CLIP Indicators for Peaks 1 dB Below Clipping

The HR-MCP2 is designed to hold average output levels constant without altering the sonic integrity of dynamic sources. Gain reduction is nearly instantaneous for both expected and severe input overloads. Automatic release time adjustments result in nearly inaudible compression action over the entire dynamic gain reduction range. The HR-MCP2 improves sound quality and intelligibility by producing consistent audio levels and controlling overloads that produce distortion and clipping. It is ideally installed as the microphone preamplifier, or in-line between a microphone and its associated mixer input, in on-air broadcast studios (announce mic, guest mics, crowd mics), voice-over studios, public address systems, meeting rooms, public venues and commercial sound systems.

The HR-MCP2 offers exceptional input headroom, wide flat frequency response and extremely low noise with very high common-mode signal rejection. Total harmonic distortion and crosstalk are below the noise floor, allowing the HR-MCP2 to be operated as a stereo mic compressor or preamplifier, or as two separate mono compressor/preamplifiers. Each channel provides two balanced input and output formats on the rear panel: Detachable terminal block and XLR. Balanced inputs and outputs may be wired unbalanced. The rear panel also provides a detachable terminal block and a power input jack to connect 24 Vdc power. The HR-MCP2 is constructed in a durable half-rack-width shielded metal enclosure for free-standing use or for mounting in an RDL rack adapter, available separately.

More +

Product Specs

Inputs (4):XLR (2, 3 pin, rear panel,1=GND, 2+, 3-); detachable terminal block (2)
Input level (for uncompressed output):-60 dBu to -20 dBu (without input pad); -45 dBu to -5 dBu (with input pad)
Maximum Input Level:> +5 dBu (input pad disabled), +22 dBu (input pad enabled)
Input Impedance:> 1.5 kO balanced
Phantom power:Selectable 48 V phantom (IEC 1938: 1996-12)
Input pad (2):15 dB nominal (1 per input channel)
Outputs (4):XLR (2, 3 pin, rear panel,1=GND, 2+, 3-); detachable terminal block (2)
Output level:Mic: -45 dBu (nominal, into 600 Ohms)
Line: +4 dBu balanced (nominal, dynamic audio source), +1 dBu balanced (nominal, sine-wave producing 3 dB compression)
Output Impedance:150Ω balanced
Channels:2 (1 and 2; may be used for stereo or as two separate mono channels)
Gain Trim (2):20 dB to 60 dB (line-level output; front panel adjustable; one for each channel)
Frequency Response:10 Hz to 25 kHz (+/- 0.5 dB, FLAT); -3 dB @ 80 Hz (LOW-CUT FILTER enabled)
THD:Below noise floor (3 dB compression)
CMRR:> 70 dB (50 Hz to 5 kHz)
Residual Noise (below rated output level):< -85 dB (20 Hz to 20 kHz, 40 dB gain, without compression, 150O source)
< -70 dB (20 Hz to 20 kHz, 60 dB gain, without compression, 150O source)
Crosstalk:Below noise floor
Indicators (17):POWER LED (blue), GAIN REDUCTION (7 per channel, yellow, 3, 6, 9, 12, 15, 18, 21 dB), CLIP (2, red)
Power Requirement:24 Vdc @ 200 mA (230 mA with phantom), Ground-referenced
Mounting:Rack-mount using optional rack adapters such as HR-RA2; or operate free-standing (feet included)
Dimensions:Height: 1.7 in, 4.3 cm; Length: 8.6 in, 20.6 cm; Depth: 4.59 in, 11.66 cm
