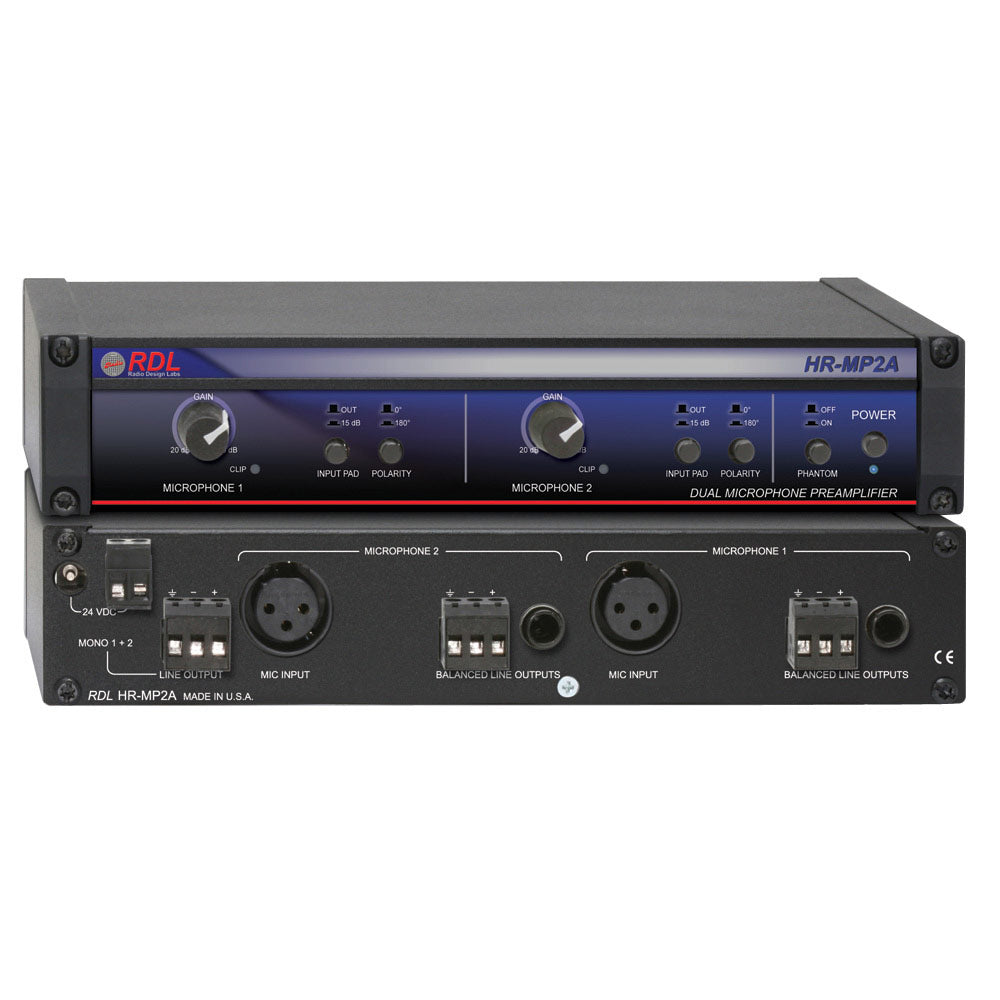

RDL HR-MP2A 2 Channel Installation Microphone Preamp


  • Dale #:

    RDL-HRMP2A
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Please Note: requires PS-24AS Power Supply (sold separately)

Description

The HR-MP2A is a dual channel microphone preamplifier with line-level outputs. Each section provides identical rear-panel signal connections and front-panel controls. Each preamplifier is equipped with a front-panel INPUT PAD switch that allows the operator to attenuate the input signal by 15 dB ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The HR-MP2A is a dual channel microphone preamplifier with line-level outputs. Each section provides identical rear-panel signal connections and front-panel controls. Each preamplifier is equipped with a front-panel INPUT PAD switch that allows the operator to attenuate the input signal by 15 dB prior to the preamplifier input stage, increasing the maximum input level from +5 dBu (attenuator out) to greater than +20 dBu. A POLARITY switch provides signal polarity reversal if needed. The GAIN control provides continuous adjustment between 20 dB and 60 dB. A CLIP LED flashes if a signal peak is within 3 dB of clipping. The trigger threshold of the CLIP LED is 17 dB above a normal +4 dBu output.

Features:

  • Two Independent Microphone Preamplifiers
  • Balanced XLR Microphone Inputs
  • Independent Controls for Each Preamplifier
  • Front-Panel 20 to 60 dB Gain Control
  • Switch-selectable 48 Volt Phantom
  • Switch-Selectable 15 dB Input Pad
  • Switch-Selectable Polarity Reversal
  • Switch-selectable 48 Volt Phantom for Both Preamplifiers
  • CLIP Indicators for Peaks 3 dB Below Clipping
  • Balanced Line-Level Outputs
  • Each Output Allows Balanced or Unbalanced Connection
  • Each Preamp Output on ¼” TRS or Detachable Terminal Block
  • Separate Summed Output 1 + 2 on Detachable Terminal Block

The HR-MP2A offers exceptional input headroom, wide flat frequency response and extremely low noise with very high common-mode signal rejection. Total harmonic distortion and crosstalk are below the noise floor, allowing the HR-MP2A to be operated as a stereo preamplifier or as two separate mono preamplifiers.

Each preamplifier provides two balanced line-level output formats: Detachable terminal block and ¼” TRS. A separate summing amplifier provides a combined mono output on a line-level detachable terminal block. Balanced outputs may be wired unbalanced. The rear panel also provides a detachable terminal block and a power input jack to connect 24 Vdc power.The HR-MP2A is constructed in a durable half-rack-width shielded metal enclosure for free-standing use or for mounting in an RDL rack adapter, available separately.

More +

Product Specs

Inputs (2):XLR (3 pin, rear panel,1=GND, 2+, 3-)
Input level (for +4 dBu output):-56 dBu to 0 dBu (maximum gain without pad, minimum gain with pad)
Maximum Input Level:>+5 dBu (input pad disabled), +22 dBu (input pad enabled)
Input Impedance:< 1 kO balanced
Phantom power:Switchable (both preamplifiers) 48 V phantom (IEC 1938: 1996-12)
Input pad (2):15 dB nominal (1 per preamplifier)
Outputs (5):Each preamplifier (rear-panel): Detachable terminal block, ¼” TRS
Mono sum (rear-panel): detachable terminal block
Output level:+4 dBu balanced, -4 dBV unbalanced; +24 dBu maximum balanced
Output Impedance:150 O balanced
Channels:2 (1 and 2; may be used for stereo or as two separate mono preamplifiers)
Gain Trim (2):20 dB to 60 dB (front panel adjustable; one for each preamplifier)
Frequency Response:10 Hz to 70 kHz (+/- 0.5 dB)
THD:Below noise floor
CMRR:> 80 dB (50 Hz to 5 kHz)
Residual Noise (below +4 dBu output):<-85 dB (20 Hz to 20 kHz, 40 dB gain, 150 O source); <-70 dB (20 Hz to 20 kHz, 60 dB gain, 150 O source)
Crosstalk:Below noise floor
Indicators (3):POWER LED (blue), CLIP (2, red)
Power Requirement:24 Vdc @ 165 mA (190 mA with phantom), Ground-referenced
Mounting:Rack-mount using optional rack adapters such as HR-RA2; or operate free-standing (feet included)
Dimensions:Height: 1.7 in, 4.3 cm; Length: 8.6 in, 20.6 cm; Depth: 4.59 in, 11.66 cm
