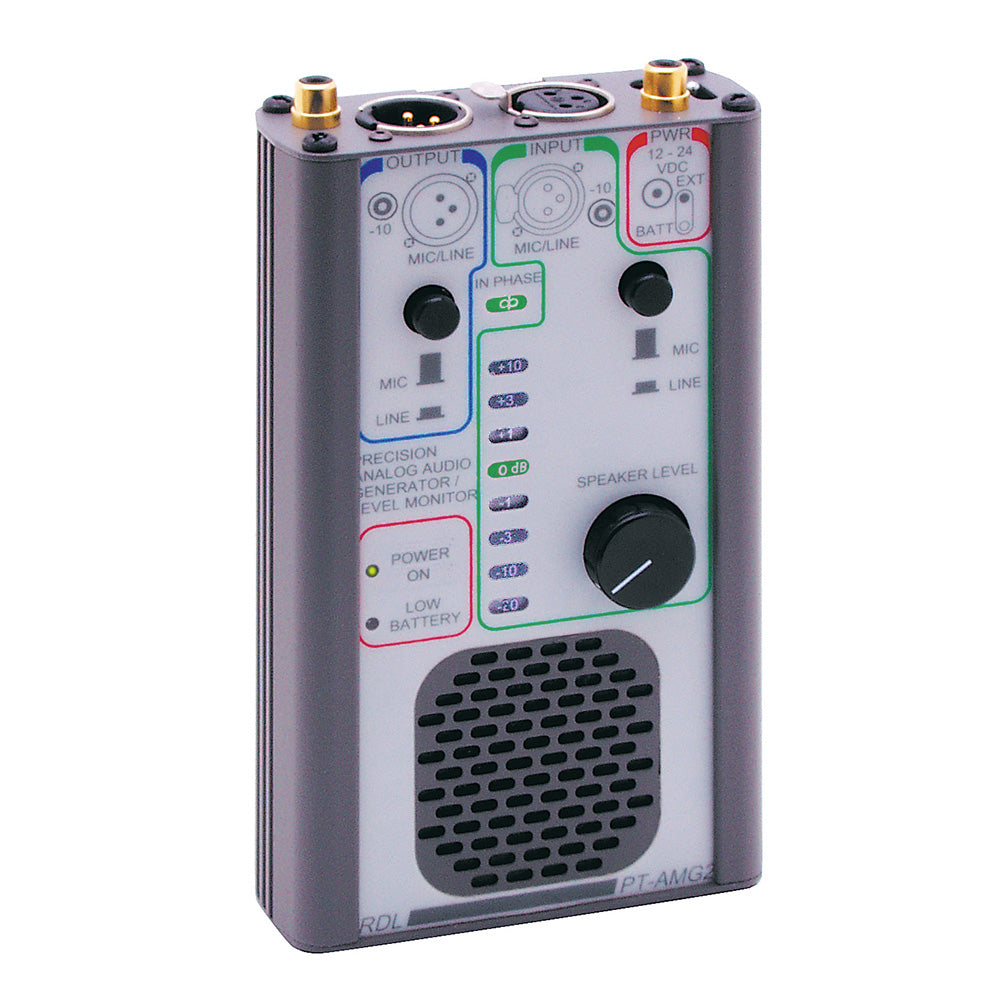

RDL PT-AMG2 Portable Audio Signal Generator & Monitor

This portable audio instrument is comprised of a precision audio oscillator, precision level meter and speaker.

The 700 Hz oscillator section features two outputs. The balanced XLR output is front-panel switch selectable for MIC or LINE level (pro level). The unbalanced output operates at -10 dBV (consumer). Output stability is suited to accurate bench top audio testing.The audio metering circuit features two inputs, an LED meter and a monitor speaker. The balanced input is front-panel switch selectable for MIC or LINE input (pro). The unbalanced input operates at -10 dBV (consumer). Either input may be used to feed the metering circuit. For balanced +4 dBu inputs, meter 0 dB = +4 dBu. For unbalanced inputs, meter 0 dB = -10 dBV. A front-panel volume knob controls the speaker level. The IN PHASE LED illuminates when the oscillator output and metering input are in phase (0 dB level or greater). The PT-AMG operates either from two internal 9 volt batteries or from an external 1 Vdc to 30 Vdc supply. Test leads and bench top support bracket are included. The balanced line levels (input and output) may be preset by the user to +4 dBu or +6 dBu.

Features:
• Portable or Bench Audio Generator, Meter and Monitor
• Mic and Line-Level Audio Tone Oscillator with Metering
• Selectable Mic / Line-Level Input and Output
• Balanced and Unbal Connectorized Inputs/Outputs
• Operation from Standard 9 Volt Batteries or 4 Vdc
• +4 dBu or +6 dBu Precision Stable Reference Level
