RDL PT-ASG1 Portable Audio Signal Generator



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:RDL-PTASG1

Please Note: requires PS-24AS Power Supply (sold separately)

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)

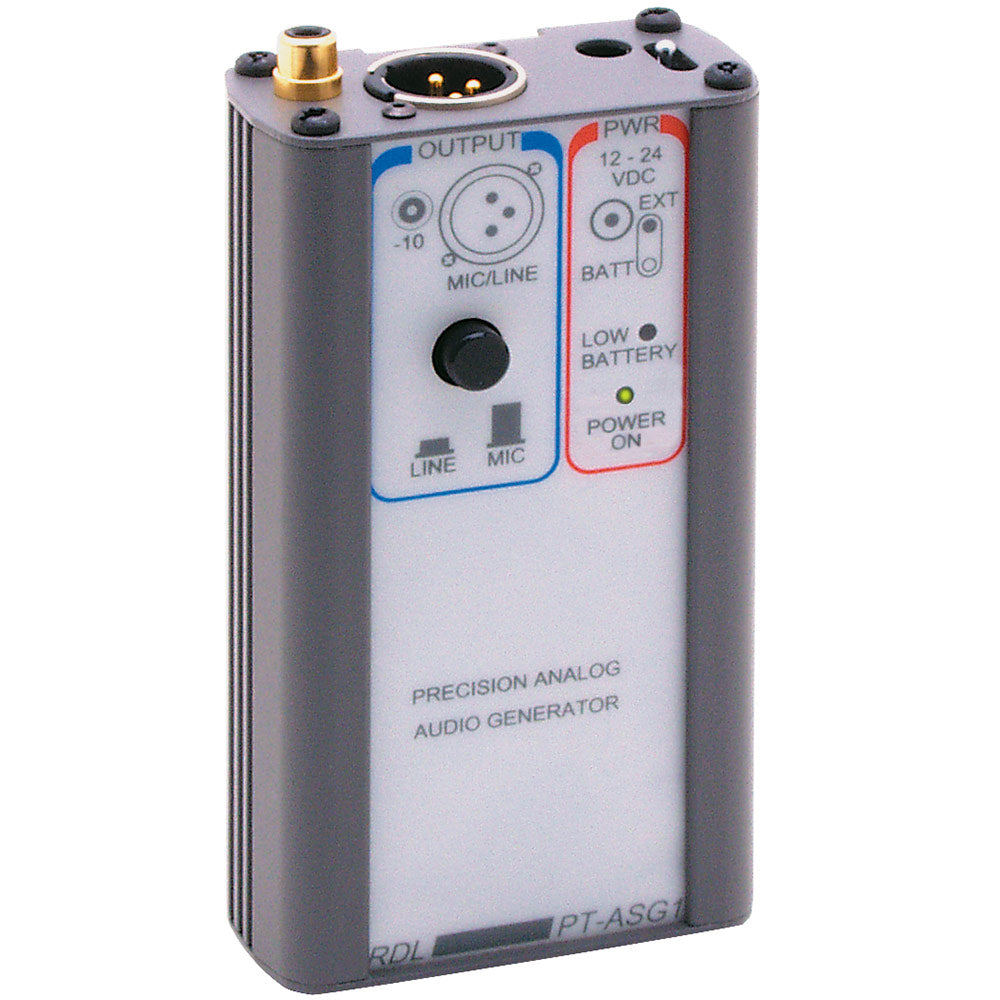

  • The PT-ASG1 is a portable or benchtop audio oscillator used in applications requiring a stable audio signal source for system verification, alignment and testing. The internal oscillator operates at 700 Hz allowing aural monitoring of the signal without the fatigue associated with oscillators running at a higher frequency such as 1000 Hz. The 700 Hz signal falls in the passband of an audio system and is easily distinguished from either 400 Hz or 1 kHz signals. The oscillator output is compared against an internal temperature-stable reference in a gain controlled loop that adjusts the final output level with stability suted to accurate bench top audio testing.

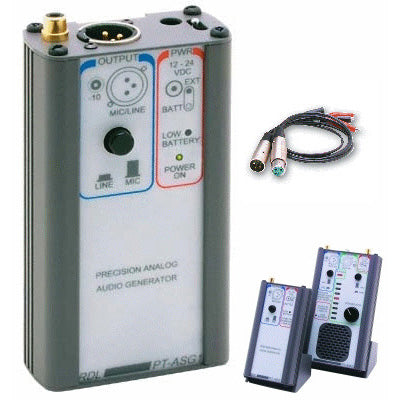

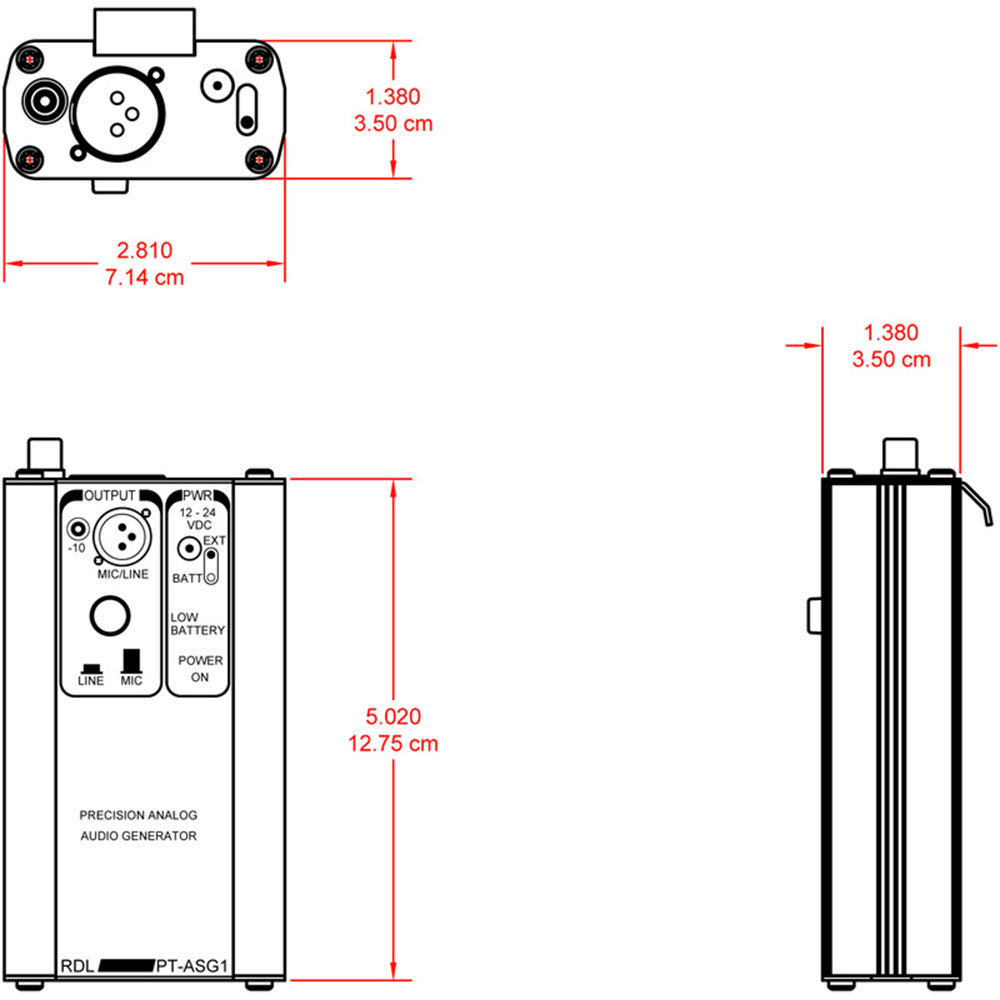

    Two outputs are provided on the PT-ASG1. The XLR balanced output is front-panel switch selectable for MIC or LINE level. The line level is factory set to +4 dBu, but can be programmed to +6 dBu. When the front-panel level switch is set to MIC, the XLR output level is set to -46 dBu, 50 dB below +4. The unique output network produces the same output level into low impedance (200 ohm ) and higher impedance (>1 k ohm ) mic preamps.The PT-ASG1 operates either from an internal 9 volt battery or from an external 12 Vdc to 30 Vdc supply. Test leads and a bench top support bracket are included. A switch in the battery compartment allows the user to preset the balanced line-level output to +4 dBu or +6 dBu.
      Features:
    • Stable Portable or Bench Audio Generator
    • Selectable Mic or Line Level Output
    • Precision Audio Reference Level
    • Connectorized Balanced and Unbalanced Outputs
    • Operation from Standard 9 Volt Battery or 24 Vdc
    • +4 dBu or +6 dBu Precision Stable Reference Level
  • Outputs (2):XLR (front-panel selectable mic or line), Phono (consumer level)
    Balanced Output Level (Selectable):
    Line:+4 dBu or +6 dBu* (2.5 k load)
    Mic:-46 dBu (2.5 k load, 50 dB below +4 dBu)
    Unbalanced Output Level:-10 dBV
    Oscillator Frequency:700 Hz nominal
    Output Stability:Better than 0.01 dB
    *Reference Level Preset:Switch-selectable +4 dBu or +6 dBu
    Power Requirement:9 V internal or 12 to 30 Vdc external @ 20 mA
    Ambient Operating Environment:0 degrees C to 50 degrees C
