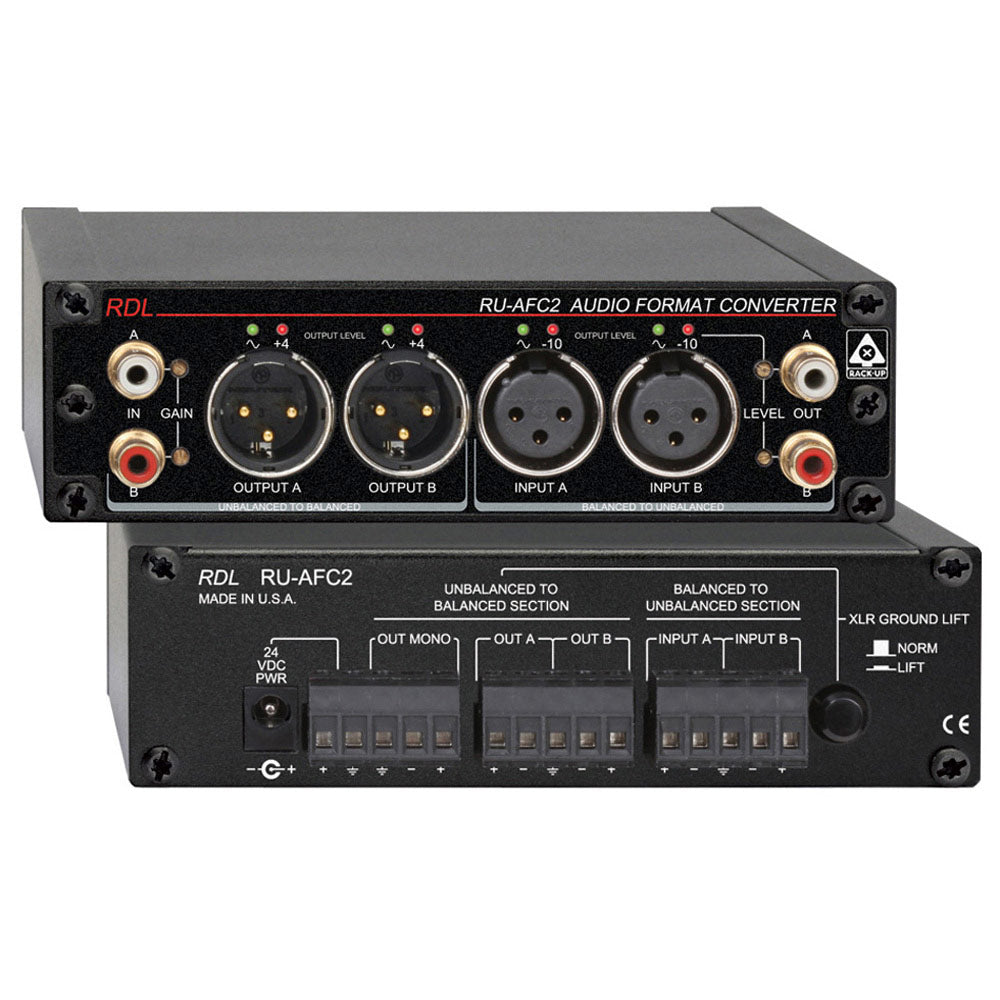

RDL RU-AFC2 Audio Format Converter


  • Dale #:

    RDL-RUAFC2
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Please Note: requires PS-24AS Power Supply (sold separately)

Description

The RU-AFC2 is a stereo bi-directional audio format converter. The bi-directional format allows the RU-AFC2 to fully convert the stereo input and stereo output of a consumer audio product to professional balanced standards. It can equally convert the stereo input and stereo output of a profession... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The RU-AFC2 is a stereo bi-directional audio format converter. The bi-directional format allows the RU-AFC2 to fully convert the stereo input and stereo output of a consumer audio product to professional balanced standards. It can equally convert the stereo input and stereo output of a professional audio product to consumer unbalanced standards. The audio fidelity, low noise, low distortion and excellent crosstalk performance of the RU-AFC2 are ideally suited to the most critical applications. The RU-AFC2 has been carefully engineered in meticulous detail to provide the ultimate audio interface package available.

Features:

  • Unparalleled Audio Performance
  • Unbalanced to Balanced Audio Conversion
  • Additional Summed MONO Out
  • Switch-Selectable Ground Lift for XLR Output Jacks
  • Balanced to Unbalanced Audio Conversion
  • Unbalanced RCA Connections on Front Panel
  • Balanced XLR Connections on Front Panel
  • Balanced Connections on Rear Panel Detachable Terminal Blocks
  • Front-Panel Multi-Turn LEVEL Trimmers
  • Dual-LED VU Meter for Each Channel
  • Gold-Plated Connectors
  • Exceptional Headroom and Frequency Response
  • 1/3 Rack, High Density Rack Mounting

The RU-AFC2 operates from ground-referenced 24 Vdc. Use the RU-AFC2 individually, or combine it with other RDL products as part of a complete audio/video system. Unbalanced audio connections are available on front-panel RCA jacks. Balanced audio connections are available on front-panel XLR jacks and on rear-panel detachable terminal blocks. The shield connections of the XLR output jacks are connected to the case through a rear-panel ground-lift switch. The unbalanced to balanced section includes an additional MONO summed output on a rear-panel detachable terminal block which may be wired balanced or unbalanced. The mono output may be used to drive patch-bay jacks, powered monitors or subwoofer amplifiers.

Each of the left and right outputs is equipped with a dual-LED VU-meter. The intensity of the green LED is proportional to the audio level. The red LED flashes at the calibrated output level, -10 dBV unbalanced or +4 dBu balanced. An individual multi turn level trimmer is provided on the front panel for each output channel.

More +

Product Specs

Unbal to Bal Section:(Referred to -10 dBV input feeding +4 dBu)
Inputs (2):Unbalanced line-level, +25 dBV max.
Input Connectors (2):RCA Phono jack (left and right)
Outputs (3):+4 dBu balanced (left, right, mono sum), +25 dBu max.
Output Connectors (4):XLR (2) and/or detachable terminal block (left and right); detachable terminal block (mono sum)
Gain adjustment:-25 dB to +9 dB (rel. +4 dBu)
Frequency Response:10 Hz to 150 kHz (+/- 0.25 dB)
THD+N:< 0.005%
Noise:< -90 dB (below +4 dBu)
Crosstalk:< -80 dB (20 Hz to 20 kHz)
Headroom:> 20 dB
Bal to Unbal Section:(Referred to +4 dBu input feeding -10 dBV)
Inputs (2):Balanced line-level, +25 dBu max.
Input Connectors (3):XLR (2) or detachable terminal block (left and right)
Outputs (2):-10 dBV unbalanced (left and right), +17 dBV max.
Output Connectors (2):RCA Phono jack (left and right)
Level adjustment:-28 dB to +5 dB (rel. -10 dBV)
CMRR:> 80 dB (50 to 120 Hz)
Frequency Response:10 Hz to 150 kHz (+/- 0.25 dB)
THD+N:< 0.001%
Noise:< -100 dB (below -10 dBV)
Crosstalk:< -90 dB (10 Hz to 20 kHz)
Headroom:> 20 dB
Power Requirement:GROUND-REFERENCED, 24 Vdc @ 60 mA (idle), 100 mA (max)
Ambient Operating Environment:0° C to 55° C
Dimensions:Height: 1.7 in (4.3 cm), Width: 5.8 in (15 cm), Depth: 4.375 in (11.11 cm)
