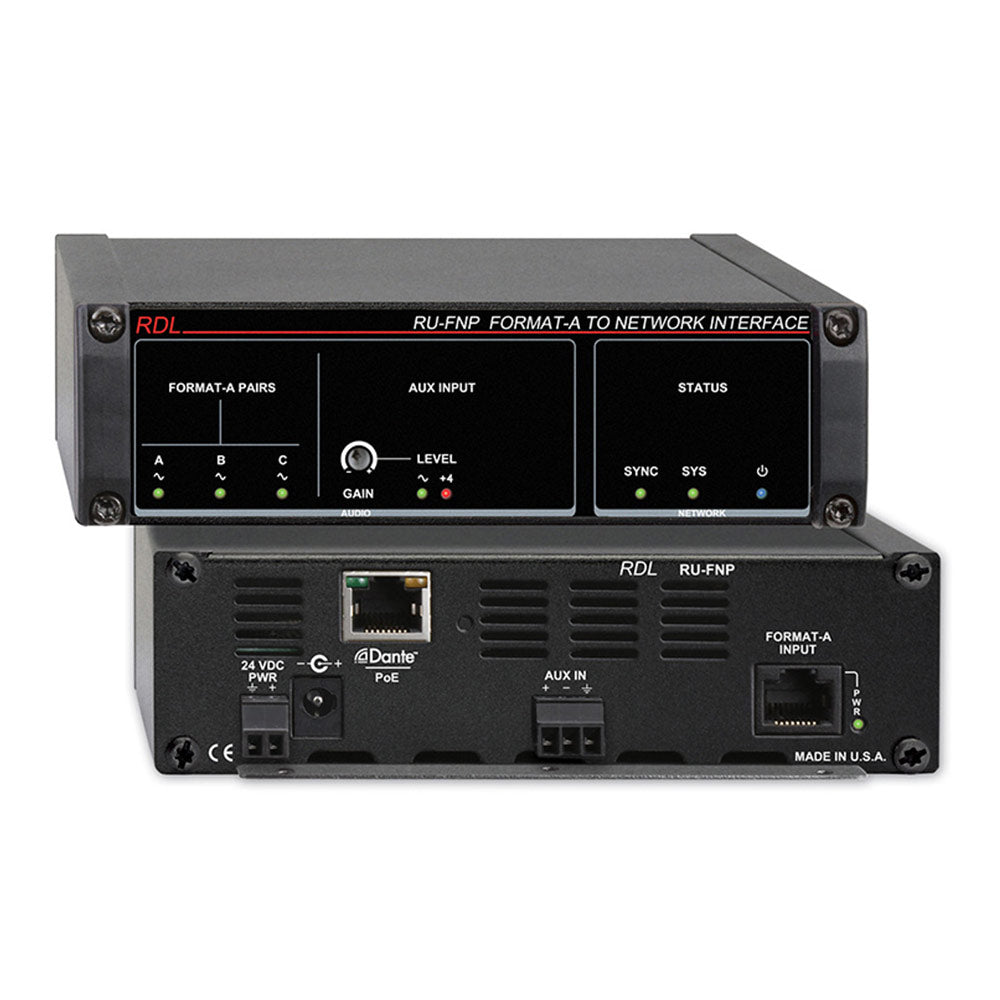

RDL RU-FNP Format-A to Dante Network Interface (with PoE)


  • Dale #:

    RDL-RUFNP
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The RU-FN is an RDL Format-A receiver that connects to a Dante-enabled network. It converts the three Format-A audio pairs to Dante networked digital audio channels. Each network channel corresponds to Pair A, B or C of the Format-A input. The unit converts a fourth input, balanced or unbalanced ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The RU-FN is an RDL Format-A receiver that connects to a Dante-enabled network. It converts the three Format-A audio pairs to Dante networked digital audio channels. Each network channel corresponds to Pair A, B or C of the Format-A input. The unit converts a fourth input, balanced or unbalanced line-level AUX, to Dante.

The RU-FNP is equipped for PoE which powers the RU-FN and the connected Format-A senders. If PoE power and an external 24 Vdc supply are both feeding an RU-FNP, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external 24 V supply.

Features:

  • Converts RDL Format-A and Aux Source to Four Dante Network Channels
  • Easy Installation with Format-A Connections on RJ45 through CATx Cable
  • Format-A Audio Sources from Pairs A, B and C Converted to Dante
  • Fourth Dante Audio Channel Fed from Unbalanced or Balanced Aux Line Input
  • Front-Panel Gain Adjustment with Dual-LED VU Meter for Aux Input
  • Signal LEDs Indicate Audio for Each of the Three Format-A Pairs
  • High Resolution 24 Bit Analog to Digital Conversion
  • Legendary RDL Analog Filtering Enhances Superb Audio Performance
  • Powers Remote Format-A Senders through Format-A Input Jack
  • LED Indicators Show Network Sync Status
  • Normal or Hot-Standby Operation from PoE (Model RU-FNP)
  • Compatible with Wide Array of RDL Format-A Active and Passive Senders
  • Equipped for Rack Mounting or Surface Mounting

The RU-FN modules are Dante audio network interface products compatible with RDL Format-A twisted pair products. These modules are designed to be mounted in equipment racks, closets, conference tables and on shelves or backboards in commercial/industrial installations.

One front-panel green signal LED corresponds to each of the three Format-A input channels. Received audio level is indicated on the variable-intensity LED indicator, facilitating setup when a networked computer is not connected at the module's location. A Dual-LED VU meter facilitates adjustment of the front-panel AUX input gain control. The AUX input supports the complete range of normal unbalanced and balanced line-level sources.

The Format-A input jack provides up to 200 mA of power to connected Format-A senders. Multiple senders may be daisy chained from the Format-A input jack.

The RU-FN Format-A input supports the entire range of Format-A senders, making each input pair available for end-user connection on various wall plates, or receiving signals from other equipment using rack-mounted, shelf-mounted or utility Format-A senders. The wide array of Format-A senders provides compatibility with commercial audio equipment operating at standard professional levels. High resolution digital audio converters coupled with RDL's renowned analog filters provide superior fidelity with a very low noise floor. Each Format-A sender may be connected near the RU-FN or up to several thousand feet distant.

The RU-FN is powered from an external 24 Vdc power supply, available separately. The external supply powers the RU-FN and Format-A senders connected to the Format-A input. The RU-FNP is equipped for PoE which powers the RU-FN and the connected Format-A senders. If PoE power and an external 24 Vdc supply are both feeding an RU-FNP, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external 24 V supply. The power feeding the Format-A RJ45 connector is separately protected by an automatically resetting fuse. A power LED is associated with the connector, facilitating identification of wiring faults.

PoE relies on the use of a PoE enabled network switch. The RU-FNP will reserve power from the switch even while being powered from an external 24 Vdc supply.

The RU-FN is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Built to last. Built to outperform.

More +

Product Specs

Network ConnectorRJ45 with Link and Speed indicators
Digital Audio Ethernet ProtocolDante
Transmission Rate100 Mbps
Sample Rates Supported44.1 kHz, 48 kHz (default)
Bit Depth Supported24 bits
Audio Operating Levels-18 dBFS = +4 dBu
Format-A InputRDL Format-A RJ45
Format-A Signal Pairs Used (3)A, B, C
Frequency Response20 Hz to 20 kHz (± 0.5 dB)
THD+N< 0.1%
Noise below +4 dBu< -75 dB
CMRR> 90 dB (50 Hz to 120 Hz, any input pair)
Crosstalk< 80 dB (20 Hz to 20 kHz)
Headroom above +4 dBu> 18 dB
AUX Input
InputBalanced, detachable terminal block
Input Impedance> 20 k
Input Level for +4 dBu-16 dBu to +12 dBu, +22 dBu maximum
Frequency Response20 Hz to 20 kHz (± 0.75 dB)
THD+N< 0.1%
Noise below +4 dBu< -75 dB
CMRR> 60 dB (50 Hz to 120 Hz)
Crosstalk< 80 dB (20 Hz to 20 kHz)
Headroom above +4 dBu> 18 dB
Indicators (11)Power In (1); Power Out (1); Audio Signal LEDs (3), AUX Dual-LED VU Meter (2), Network Sys and Sync (2), Ethernet Link and Speed (2)
Power Connections (2)Power Jack; Detachable Terminal Block
Ambient Operating Environment0° C to 40° C
Power Requirement24 Vdc @ 100 mA plus connected loads, or PoE (RU-FNP)
PoE (RU-FNP)Class 0, IEEE 802.3af
Dimensions5.8" (15 cm) W; 1.7" (4.3 cm) H; 5.2" (13.2 cm) D
Package TypeCardboard Box
Package Dimensions6 x 6 x 2.625 in.
Shipping Weight1.585 lbs. (RU-FN); 1.61 lbs. (RU-FNP)
WEEE weight1.325 lbs. (RU-FN); 1.35 lbs. (RU-FNP)
Tariff code8517.18.0050
