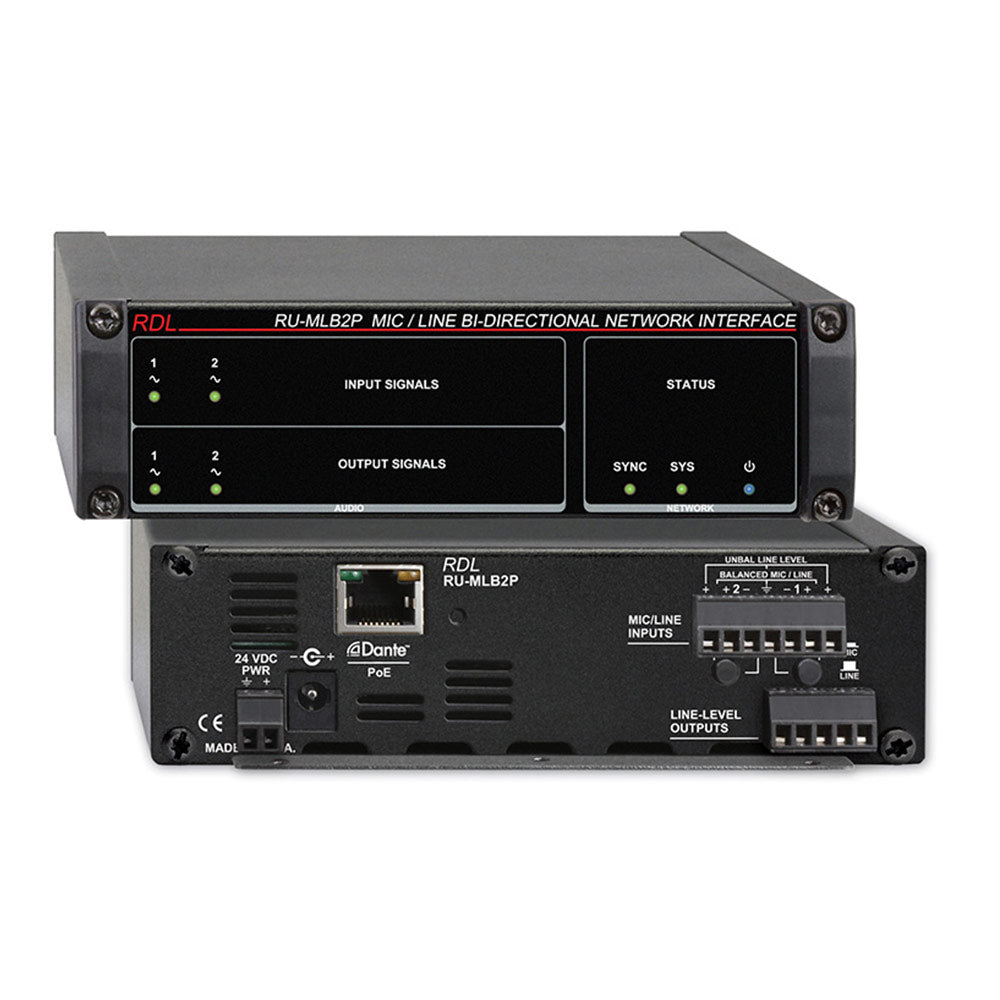

RDL RU-MLB2P Mic/Line Bi-Directional Dante Network Interface (with PoE)


  • Dale #:

    RDL-RUMLB2P
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The RU-MLB2 is a high quality converter that provides professional line-level outputs from two Dante network received audio channels. It also converts two professional or consumer line-level sources, or dynamic or condenser microphones to Dante network audio channels. The RU-MLB2P is equipped to ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The RU-MLB2 is a high quality converter that provides professional line-level outputs from two Dante network received audio channels. It also converts two professional or consumer line-level sources, or dynamic or condenser microphones to Dante network audio channels.

The RU-MLB2P is equipped to operate from a PoE enabled network switch. The RU-MLB2P will reserve power from the switch even while being powered from an external 24 Vdc supply. If PoE power and an external 24 Vdc supply are both feeding an RU-MLB2P, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply.

Features:

  • Interfaces Two Dante Inputs and Two Dante Outputs
  • Converts Two Standard Mic or Line Audio Sources to Dante Network Channels
  • Each Input is Switch-Selectable for Mic or Line
  • No User or Installer Gain Adjustments are Required
  • Automatic Microphone Gain of 40 dB for Condenser Mics and 60 dB for Dynamic Mics
  • P48 Phantom is Provided on Each Microphone Input
  • Line-Level Inputs Accept Unbalanced -10 dBV or Balanced +4 dBu Signals with > 18 dB Headroom
  • Front-Panel Signal LED for Each Audio Input
  • Converts Two Dante Network Audio Signals to Balanced Line Level
  • Line-Level Outputs Provide +4 dBu with > 18 dB Headroom
  • Signal LEDs Indicate Audio for Each of the Received Network Signal Channels
  • High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
  • Legendary RDL Analog Filtering Enhances Superb Audio Performance
  • LED Indicators Show Network Sync Status
  • Normal or Hot-Standby Operation from PoE (Model RU-MLB2P)
  • Equipped for Rack Mounting or Surface Mounting

The RU-MLB2 modules are Dante audio network interface products compatible with microphones and line-level audio equipment inputs and outputs. These modules are designed to be mounted in equipment racks, closets, conference tables and on shelves or backboards in commercial/industrial installations.

APPLICATION: The RU-MLB2 is a high quality converter that provides professional line-level outputs from two Dante network received audio channels. It also converts two professional or consumer line-level sources, or dynamic or condenser microphones to Dante network audio channels.

Network to Line Level Interface Section

The RU-MLB2 converts two Dante audio channels to balanced line level. Each output provides +4 dBu balanced for a network digital audio level of -18 dBFS. The professional output directly interfaces with other professional and commercial equipment without the need for additional gain. Crosstalk is below the noise floor between all outputs across the entire audio spectrum. The noise floor is better than 80 dB below operating level.

One front-panel green signal LED corresponds to each of the two Dante input channels. Received audio level is indicated on the variable-intensity LED indicator, facilitating setup when a networked computer is not connected at the module's location.

Mic or Line Level to Network Interface Section

The RU-MLB2 converts two audio sources to Dante networked digital audio channels. Each input is equipped with a rear-panel input selector the installer sets to mic or line. In the mic position, the balanced input provides P48 phantom to an associated microphone jack. Connection of a dynamic microphone sets the preamplifier gain to 60 dB. Connection of a condenser microphone sets the gain to 40 dB. The automatic gain setting is always active so that no user adjustment is required when changing microphones. In the line position, the balanced input accepts a standard +4 dBu source, and the unbalanced line input terminals accept a -10 dBV source for normal operating level. Separate wiring terminals are provided for balanced and unbalances sources. A front-panel variable-intensity LED indicator is provided for each of the two inputs to facilitate setup.

The RU-MLB2 is powered from an external 24 Vdc power supply, available separately. The RU-MLB2P is equipped to operate from a PoE enabled network switch. The RU-MLB2P will reserve power from the switch even while being powered from an external 24 Vdc supply. If PoE power and an external 24 Vdc supply are both feeding an RU-MLB2P, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply.

The RU-MLB2's superior performance specifications make it ideally suited to the most demanding installations, and an exceptional value in commercial networked audio systems.

The RU-MLB2 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Built to last. Built to outperform.

More +

Product Specs

Network Connector RJ45 with Link and Speed indicators
Digital Audio Ethernet Protocol Dante
Transmission Rate 100 Mbps
Sample Rates Supported 44.1 kHz, 48 kHz (default)
Bit Depth Supported 24 bits
Audio Operating Levels -18 dBFS = +4 dBu
Mic/Line Inputs to Network Interface Section
Mic Inputs
Inputs (2) Balanced, detachable terminal block
Gain Automatic; 40 dB for condenser mics, 60 dB for dynamique mics
Input Level for +4 dBu 56 dBu (dynamic), -36 dBu maximum; -36 dBu (condenser), -19 dBu maximum (unclipped), -14 dBu maximum (soft clipped)
Input Impedance > 1 k
Phantom Power P48, 48 Vdc
Standard for Phantom IEC 61938: 2013
Frequency Response 20 Hz to 20 kHz (± 0.5 dB)
THD+N < 0.1%
Noise below +4 dBu < -70 dB
CMRR > 70 dB (50 to 120 Hz)
Crosstalk < 70 dB (20 to 20 kHz)
Line Inputs
Inputs (4) Balanced, detachable terminal block (2); Unbalanced, detachable terminal block (2)
Input Level for +4 dBu +4 dBu (balanced); -10 dBV (unbalanced)
Input Impedance > 20 k
Frequency Response 20 Hz to 20 kHz (± 0.5 dB)
THD+N < 0.1%
Noise below +4 dBu < -75 dB
CMRR > 60 dB (50 Hz to 120 Hz)
Crosstalk < 75 dB (1 kHz, any line to any mic channel), < 70 dB (20 to 20 kHz)
Headroom above +4 dBu > 18 dB
Network to Line Level Interface Section
Outputs (2) Balanced, detachable terminal block
Output Level +4 dBu (nominal)
Output Impedance 150 balanced; 75 unbalanced
Frequency Response 20 Hz to 20 kHz (± 0.5 dB)
THD+N < 0.05%
Noise below +4 dBu < -80 dB (output active); < -95 dB (outputs muted)
Crosstalk < 85 dB (20 Hz to 20 kHz)
Headroom above +4 dBu > 18 dB
Selectors (2) MIC or LINE (rear panel)
Indicators (9) Power In (1); Output Signal LEDs (2); Input Signal LEDs (2); Network Sys and Sync (2), Ethernet Link and Speed (2)
Power Connections (2) Power Jack; Detachable Terminal Block
Ambient Operating Environment 0° C to 40° C
Power Requirement 24 Vdc @ 175 mA plus connected phantom loads, or PoE (RU-MLB2P)
PoE (RU-MLB2P) Class 0, IEEE 802.3af
Dimensions 5.8" (15 cm) W; 1.7" (4.3 cm) H; 5.2" (13.2 cm) D
Package Type Cardboard Box
Package Dimensions 6 x 6 x 2.625 in.
Shipping Weight 1.774 lbs. (RU-MLB2); 1.799 lbs. (RU-MLB2P)
WEEE weight 1.514 lbs. (RU-MLB2); 1.539 lbs. (RU-MLB2P)
Tariff code 8517.18.0050
