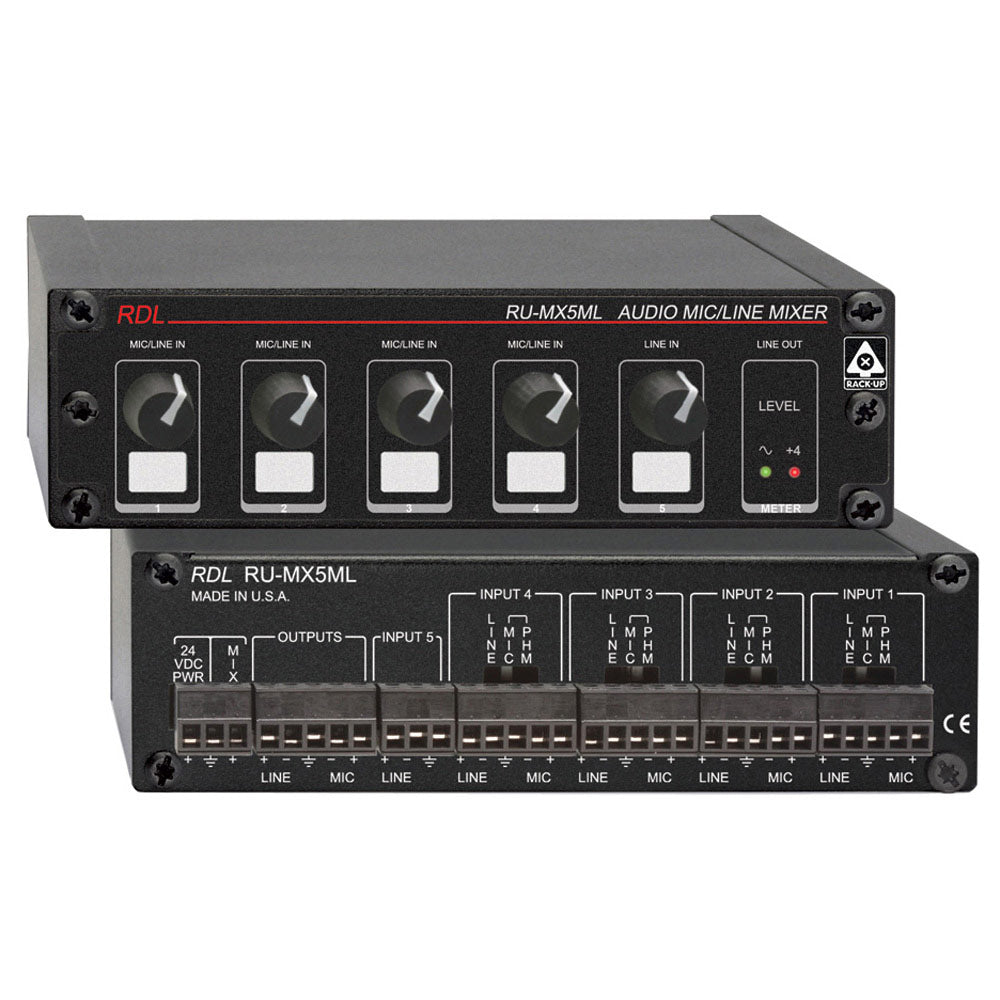

RDL RU-MX5ML 5 Channel Installation Mic/Line Mixer


  • Dale #:

    RDL-RUMX5ML
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Please Note: requires PS-24AS Power Supply (sold separately)

Description

The RU-MX5ML is the ideal choice in many applications where a combination of balanced mic and/or balanced or unbalanced line-level signals needs to be mixed with the ability for additional expansion. All connections are made using detachable terminal blocks on the rear panel. Four of the RU-MX5ML... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The RU-MX5ML is the ideal choice in many applications where a combination of balanced mic and/or balanced or unbalanced line-level signals needs to be mixed with the ability for additional expansion. All connections are made using detachable terminal blocks on the rear panel. Four of the RU-MX5ML inputs can accept either mic or line inputs. The fifth input is for line level sources.

24 V phantom is individually switch selectable for each mic input. The output from one RU-MX5ML may connect to the MIX input of another RU-MX5ML to expand mixing capabilities. Up to 3 RU-MX5ML mixers may be rack mounted in a single rack unit using an RDL RU-RA3HD rack adapter. The output section provides both a balanced line (+4 dBu) and balanced microphone level (-45 dBu) output. Both outputs may be used at the same time. Audio levels are adjustable on the front panel. The output is equipped with a front-panel dual-LED VU meter that follows standard VU ballistics.

Features:

  • Mic or Line Level Audio Mixer
  • Five Channel Audio Mixer with Expansion Capability
  • Inputs and Outputs on Detachable Terminal Blocks
  • Switchable 24 V Phantom for Each Mic Input
  • Balanced Mic and Line Outputs
  • Expansion Bussing Capability
  • Output Level dual-LED VU Metering
  • Studio-Quality, Low-Noise Performance

More +

Product Specs

Inputs (6):4 selectable mic or line level; 1 line level; 1 direct MIX; detachable terminal block
Input Impedance:Mic: >1.2 kO balanced; Line: >10 kO balanced
Maximum Input Level:Mic: -20 dBu; Line: +24 dBu
Phantom:Switch-selectable 24 V (IEC 1938: 1996-12)
Gain:Mic: Off to 65 dB; Line: Off to 15 dB
Outputs (2):Mic: -45 dBu balanced; Line: +4 dBu balanced; detachable terminal block
Output Impedance:150 O balanced
Frequency Response:Mic: 80 Hz to 40 kHz (±1 dB, < -6 dB at 20 Hz with integral high-pass filter); Line: 10 Hz to 35 kHz (± 0.5 dB)
THD+N:Mic: < 0.03%; Line: <0.003%
Headroom:20 dB (above +4 dBu output)
Noise:< -70 dB below +4 dBu output (20 Hz to 20 kHz, all mic channels at 50 dB gain; or one mic channel active at 60 dB gain); < -90 dB below +4 dBu (20 Hz to 20 kHz, all channels off)
CMRR:Mic: > -65 dB (10 Hz to 10 kHz); Line: > -45 dB
Metering:Dual-LED VU Meter (calibrated to +4 dBu)
Power Requirement:GROUND-REFERENCED, 24 Vdc @ 75 mA (120 mA max. including phantom); detachable terminal block
Dimensions:Height: 1.7 in. 4.3 cm; Width: 5.8 in. 15.0 cm; Depth: 4.8 in. 12.2 cm
Ambient Operating Environment:0° C to 55° C
