RDL RU-SC2 RS-232/422 Serial Converter (Full-Duplex)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

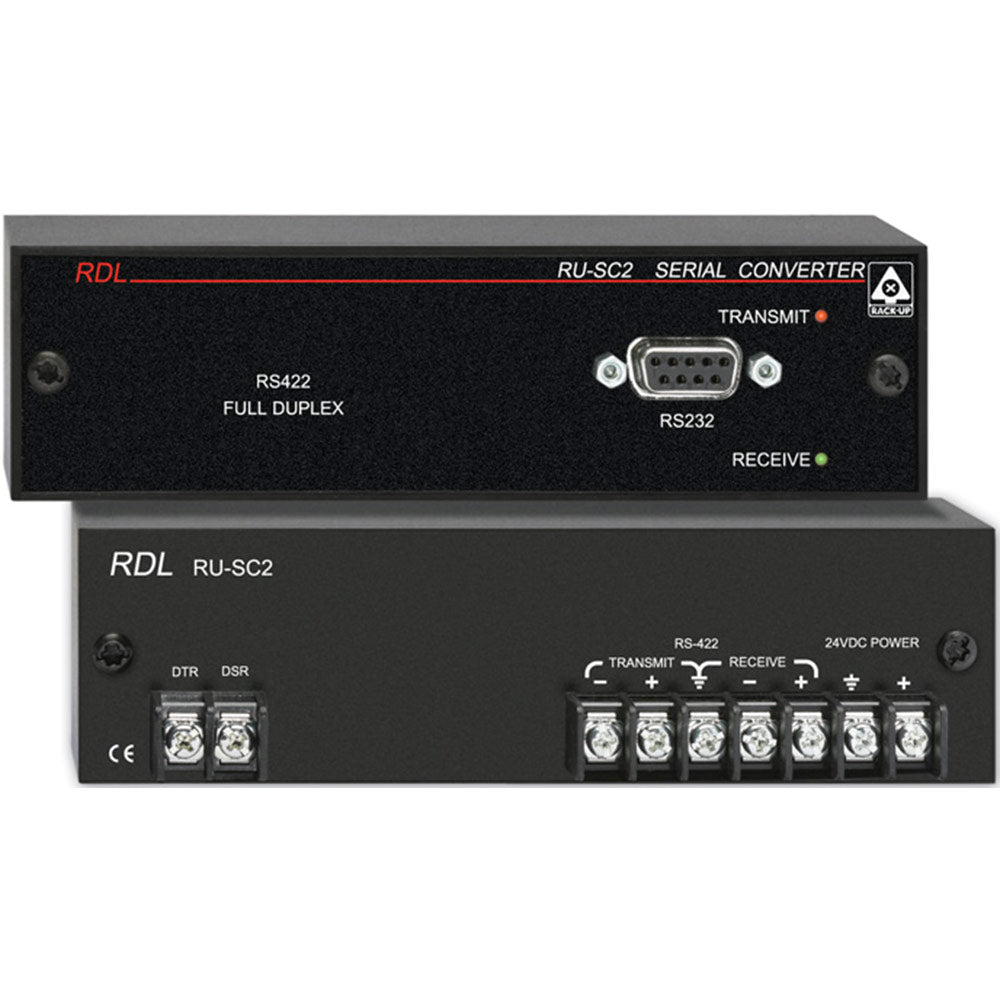

The RU-SC2 is the ideal choice in installations when two RS-232 devices requiring full-duplex communication are to be connected at a long distance. Connection to the RS-232 device is made on the front panel. The RS-422 input and output connections and power connections are made on the rear panel through full-size, clearly identified, barrier block terminals. Two RU-SC2s may be connected (using the RS-422 connections) at each end of 2-pair of long, balanced, twisted-pair line to permit feeding data between two RS-232 ports, thereby permitting serial communications over much greater distances than with conventional serial cables.
-
Features:
- Conversion RS-232 RS-422
- Serial Data Over Long Lines
- Rack-Mountable Convenience
| Input/Output: | 1 each RS-232 (front panel-DB9 female) and RS-422 (rear-panel barrier block) |
| Baud Rate: | Determined by RS-232 device, up to 115.2 kbps |
| Indicators: | 2 LED indicators (Transmit and receive) |
| Power Requirement: | GROUND-REFERENCED, 24 to 33 Vdc @ 125 mA |
| Ambient Operating Environment: | 10 degrees C to 55 degrees C |
The RU-SC2 is the ideal choice in installations when two RS-232 devices requiring full-duplex communication are to be connected at a long distance. Connection to the RS-232 device is made on the front panel. The RS-422 input and output connections and power connections are made on the rear panel through full-size, clearly identified, barrier block terminals. Two RU-SC2s may be connected (using the RS-422 connections) at each end of 2-pair of long, balanced, twisted-pair line to permit feeding data between two RS-232 ports, thereby permitting serial communications over much greater distances than with conventional serial cables.
-
Features:
- Conversion RS-232 RS-422
- Serial Data Over Long Lines
- Rack-Mountable Convenience
| Input/Output: | 1 each RS-232 (front panel-DB9 female) and RS-422 (rear-panel barrier block) |
| Baud Rate: | Determined by RS-232 device, up to 115.2 kbps |
| Indicators: | 2 LED indicators (Transmit and receive) |
| Power Requirement: | GROUND-REFERENCED, 24 to 33 Vdc @ 125 mA |
| Ambient Operating Environment: | 10 degrees C to 55 degrees C |
