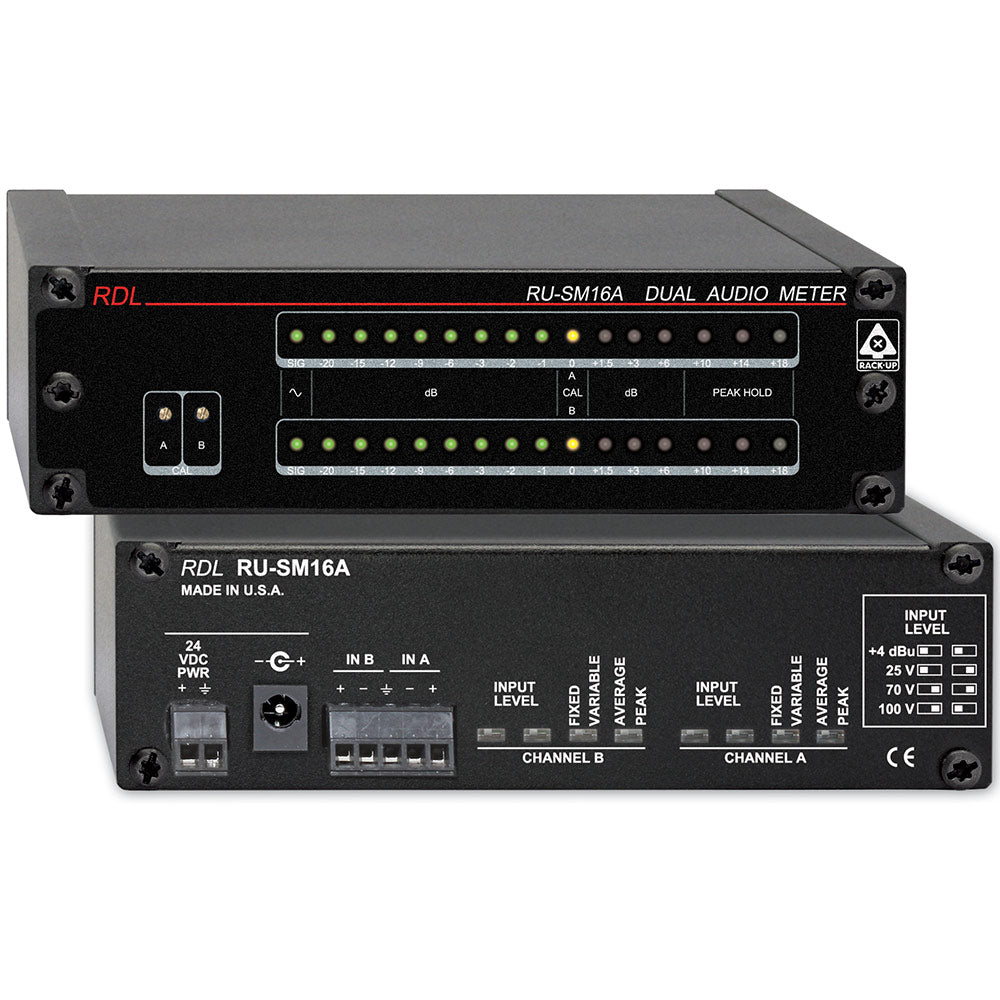

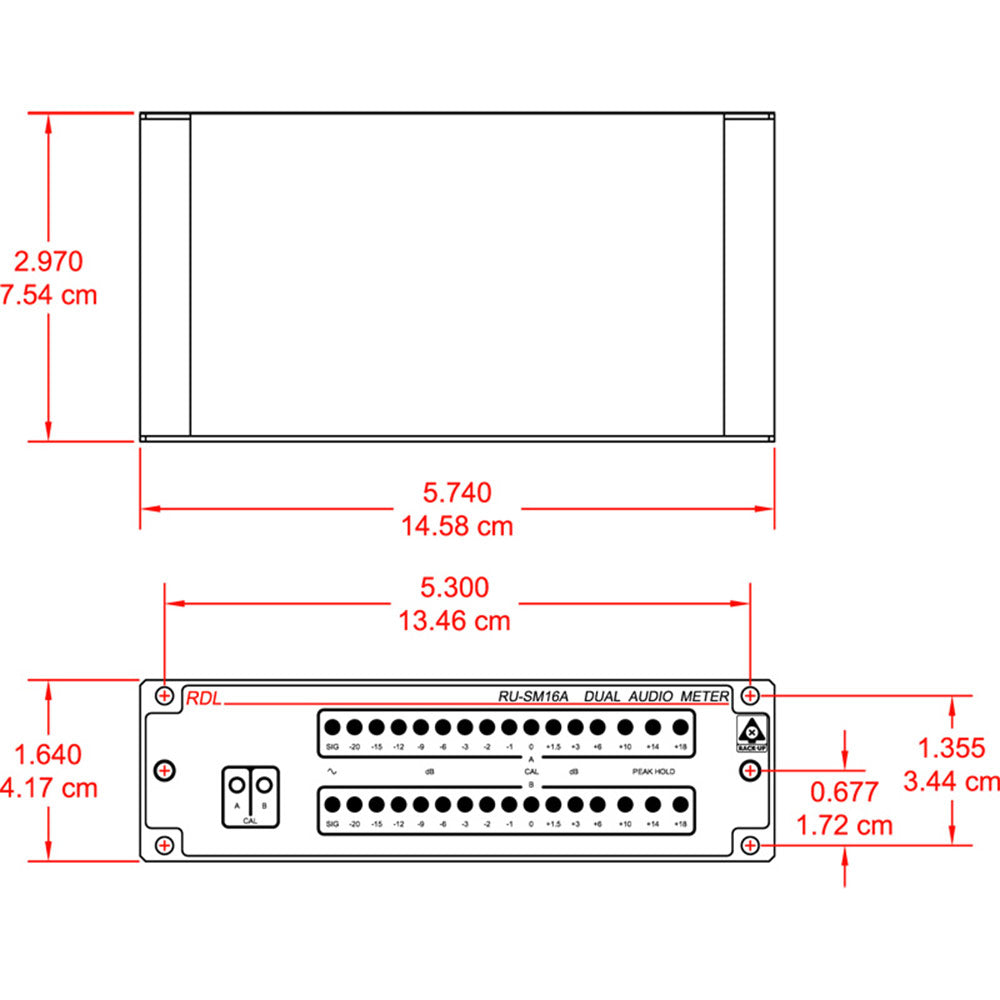

RDL RU-SM16A 2-Channel Audio Meter
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The RU-SM16A is the ideal choice in most applications where audio level metering is to be designed into a system or added to existing equipment. The RU-SM16A has two separate inputs. Each input may be individually calibrated for unbalanced consumer, balanced professional, 8 Ohm speaker line or constant voltage speaker lines (25 V, 70 V or 100 V). All connections are made using detachable terminal blocks.
Features:
- Precision Audio Level Metering
- Digital 16 LED String Display Indication
- Two Mono Meters or Stereo Metering
- Line-Level, Speaker-Level or 25/70/100 V Audio Input
- Selectable Fixed or Variable Calibration
- Individual Channel Calibration Controls
- Selectable Peak or Average Metering
- Peak-Hold Display for +10, +14, +18 dB
A rear-panel switch selects variable or fixed calibration for 25V, 70V, 100V and +4 dBu sources. In the "variable" position, front-panel multi-turn trimmers adjust the calibrated meter levels.
Rear-panel switches allow the installer to set each meter individually for either peak or average audio level display. In stereo applications, either peak or average is typically selected. In monaural installations, it may be advantageous to feed the mono source to both meters, setting one for peak and the other for average. In either mode the upper three LEDs (+10, +14, +18) remain in the PEAK HOLD mode.
The RU-SM16A uses bright LEDs for good visibility. Each channel input has a label area for identification of the source or function being metered.
| Inputs (2) | Line level or Amplified speaker level |
| Input Impedance | > 40 k balanced or unbalanced |
| 0 dB Calibration | Fixed or Variable (switch-selectable) |
| Fixed Input Level | +4 dBu (+4 switch settings, for 0 dB reading) 25 V* (25 V switch settings, for 0 dB reading) 70 V* (70 V switch settings, for 0 dB reading) 100 V* (100 V switch settings, for 0 dB reading) |
| Variable Input Level Range | -24 dBu to +12 dBu (+4 switch settings, for 0 dB reading) 2 V to 90 V* (25 V switch settings, for 0 dB reading) 4 V to 90 V* (70 V switch settings, for 0 dB reading) 5 V to 100 V* (100 V switch settings, for 0 dB reading) *Constant-voltage or low-impedance (4 Ohms, 8 Ohms) amplifier output |
| Metering Freq. Response | 20 Hz to 20 kHz |
| Indicators | SIG, -20, -15, -12, -9, -6, -3, -2, -1, 0, +1.5, +3, +6, +10, +14, +18 (+10, +14, +18 are PEAK HOLD indicators only) |
| Metering Response | Each channel individually selectable PEAK or AVG (switch-selectable) |
| Rise Time (10% to 90%): Rise Time (0% to 100%): Fall Time (90% to 10%): Fall Time (100% to 0%): | Peak Mode Average Mode 50 us 130 ms 60 us 300 ms (VU Characteristic) 65 ms 185 ms 100 ms 300 ms (VU Characteristic) |
| Ambient Operating Environment | 0¡ C to 55¡ C |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 250 mA |
| Package Type | Cardboard Box |
| Package Dimensions | 6 x 6 x 2.625 in. |
| Shipping Weight | 1.205 lbs. |
| WEEE weight | 0.965 lbs. |
| Tariff code | 9030.40.0000 |
The RU-SM16A is the ideal choice in most applications where audio level metering is to be designed into a system or added to existing equipment. The RU-SM16A has two separate inputs. Each input may be individually calibrated for unbalanced consumer, balanced professional, 8 Ohm speaker line or constant voltage speaker lines (25 V, 70 V or 100 V). All connections are made using detachable terminal blocks.
Features:
- Precision Audio Level Metering
- Digital 16 LED String Display Indication
- Two Mono Meters or Stereo Metering
- Line-Level, Speaker-Level or 25/70/100 V Audio Input
- Selectable Fixed or Variable Calibration
- Individual Channel Calibration Controls
- Selectable Peak or Average Metering
- Peak-Hold Display for +10, +14, +18 dB
A rear-panel switch selects variable or fixed calibration for 25V, 70V, 100V and +4 dBu sources. In the "variable" position, front-panel multi-turn trimmers adjust the calibrated meter levels.
Rear-panel switches allow the installer to set each meter individually for either peak or average audio level display. In stereo applications, either peak or average is typically selected. In monaural installations, it may be advantageous to feed the mono source to both meters, setting one for peak and the other for average. In either mode the upper three LEDs (+10, +14, +18) remain in the PEAK HOLD mode.
The RU-SM16A uses bright LEDs for good visibility. Each channel input has a label area for identification of the source or function being metered.
| Inputs (2) | Line level or Amplified speaker level |
| Input Impedance | > 40 k balanced or unbalanced |
| 0 dB Calibration | Fixed or Variable (switch-selectable) |
| Fixed Input Level | +4 dBu (+4 switch settings, for 0 dB reading) 25 V* (25 V switch settings, for 0 dB reading) 70 V* (70 V switch settings, for 0 dB reading) 100 V* (100 V switch settings, for 0 dB reading) |
| Variable Input Level Range | -24 dBu to +12 dBu (+4 switch settings, for 0 dB reading) 2 V to 90 V* (25 V switch settings, for 0 dB reading) 4 V to 90 V* (70 V switch settings, for 0 dB reading) 5 V to 100 V* (100 V switch settings, for 0 dB reading) *Constant-voltage or low-impedance (4 Ohms, 8 Ohms) amplifier output |
| Metering Freq. Response | 20 Hz to 20 kHz |
| Indicators | SIG, -20, -15, -12, -9, -6, -3, -2, -1, 0, +1.5, +3, +6, +10, +14, +18 (+10, +14, +18 are PEAK HOLD indicators only) |
| Metering Response | Each channel individually selectable PEAK or AVG (switch-selectable) |
| Rise Time (10% to 90%): Rise Time (0% to 100%): Fall Time (90% to 10%): Fall Time (100% to 0%): | Peak Mode Average Mode 50 us 130 ms 60 us 300 ms (VU Characteristic) 65 ms 185 ms 100 ms 300 ms (VU Characteristic) |
| Ambient Operating Environment | 0¡ C to 55¡ C |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 250 mA |
| Package Type | Cardboard Box |
| Package Dimensions | 6 x 6 x 2.625 in. |
| Shipping Weight | 1.205 lbs. |
| WEEE weight | 0.965 lbs. |
| Tariff code | 9030.40.0000 |
