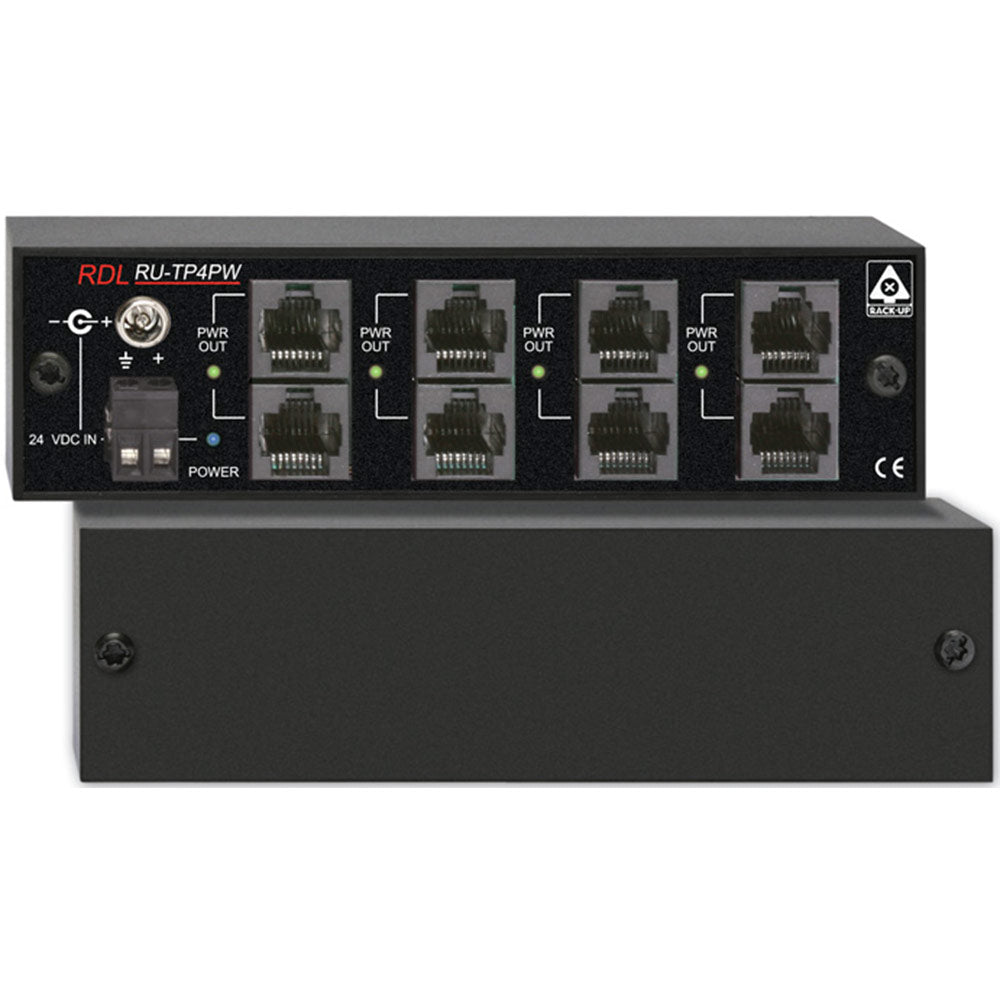

RDL RU-TP4PW Power Inserter - Twisted Pair - four sets of outputs - signal loop-through


  • Dale #:

    RDL-RUTP4PW
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Please Note: requires PS-24AS Power Supply (sold separately)

Description

The RU-TP4PW is a four output power inserter compatible with RDL twisted pair products. The RU-TP4PW is powered from a 24 Vdc power supply using either the power jack or the detachable terminal block. Four dual-RJ45 jack sets are provided to connect remote twisted pair senders and receivers. Powe... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The RU-TP4PW is a four output power inserter compatible with RDL twisted pair products. The RU-TP4PW is powered from a 24 Vdc power supply using either the power jack or the detachable terminal block. Four dual-RJ45 jack sets are provided to connect remote twisted pair senders and receivers. Power is provided to all modules connected to the RJ45 jacks. Signal pairs feed through the associated RJ45s. The voltage feeding each dual-RJ45 jack set is separately protected by an automatically resetting fuse. A power LED is associated with each dual-RJ45 jack set, facilitating identification of wiring faults. Module power is indicated by a front-panel LED. The RU-TP4PW is ideal for powering remote twisted pair modules from a central equipment rack.

    Features:
  • Power Four Sets of Remote Senders and Receivers from a Convenient Location
  • 24 Vdc Input on dc Power Jack or Detachable Terminal Block
  • Blue Power LED Shows Module is Receiving Power
  • Green LEDs Indicate Correct dc Output Voltage on RJ45s
  • Two Associated RJ45s Provided for Each Power Output
  • One Associated RJ45 may Power Receivers
  • The Other Associated RJ45 may Power Senders
  • High-Density Rack Mounting Using RACK-UP Accessories

More +

Product Specs

Outputs (4):Dual-RJ45
Indicators (5):Power In (1) Power Out (4)
Power Connections (2):Power Jack Detachable Terminal Block
Power Requirement:24 Vdc @ 25 mA plus connected loads

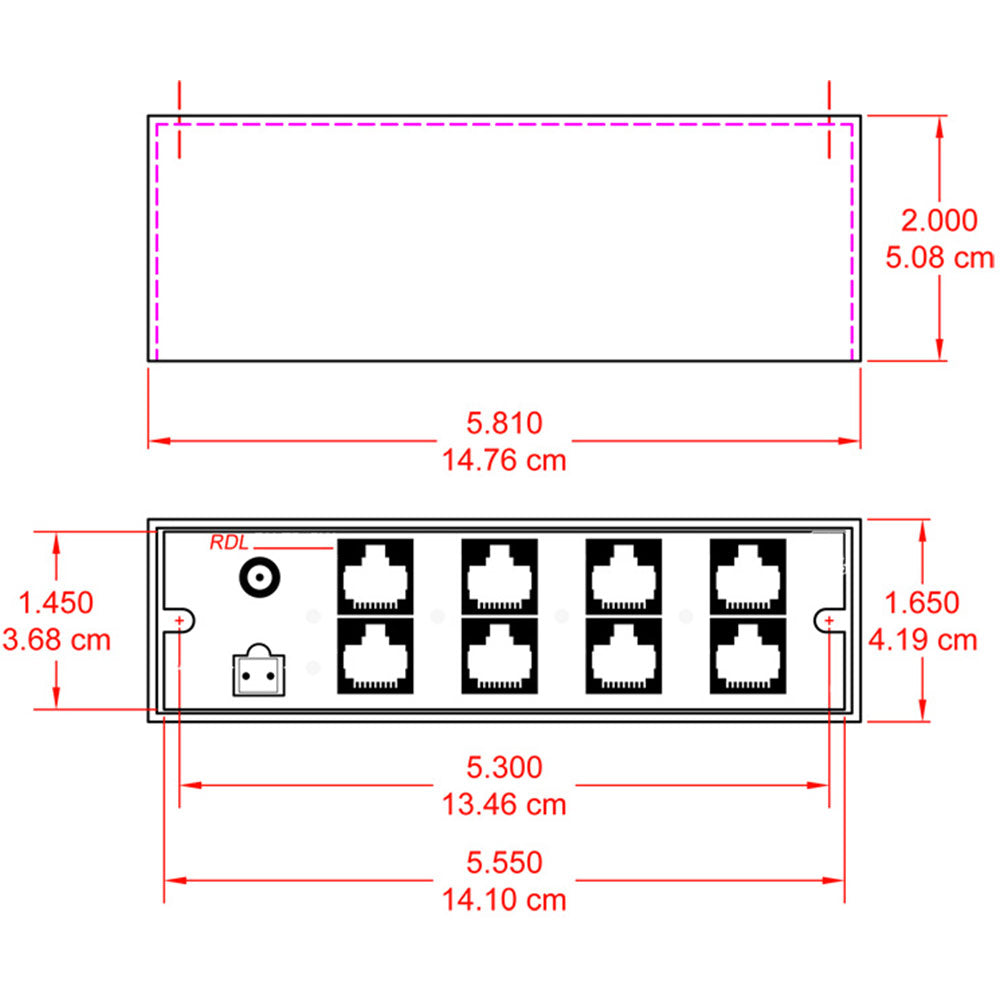

Dimensions:5.8 (15 cm) W 1.7 (4.3 cm) H 2.2 (5.59 cm) D
Ambient Operating Environment:0 degrees C to 55 degrees C
