RDL RU-VDA4b NTSC/PAL Video Distribution Amplifier - 1x4 - BNC
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

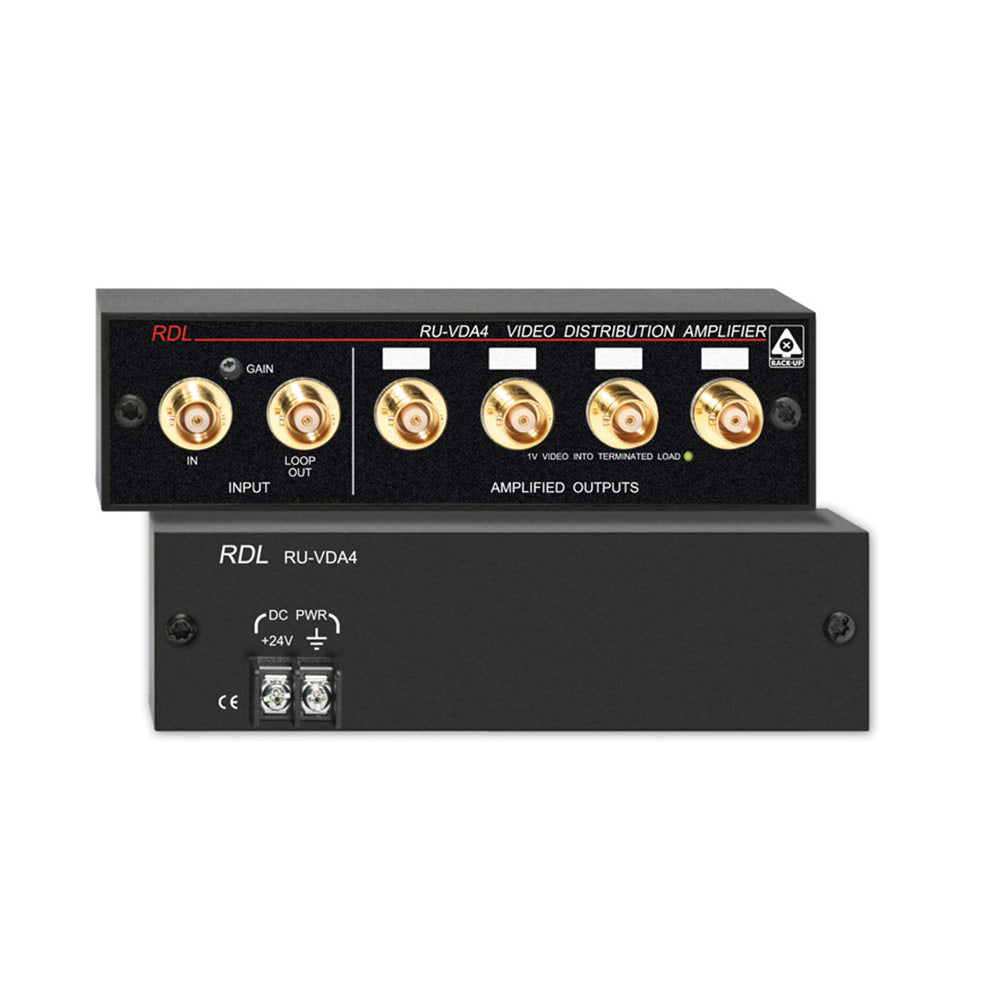

The RU-VDA4 is the ideal choice in most applications where video signals need to be distributed. Video inputs and outputs are made on the front panel via BNC, PHONO, or type F jacks. Power connections are made using full-size barrier block terminals on the rear panel. The RU-VDA4 has two jacks in the input stage. One jack is for the input signal; the other is a loop through output of the source signal. The input stage is bridging. If 75 ohm termination of the input signal is required, the termination is plugged onto the LOOP OUT jack. Gain is user adjustable from the front panel. The GAIN potentiometer allows adjustment from -1 dB to +7 dB.
Features:
- Video Distribution with 4 Outputs
- Adjustable Gain Amplification
- Input LOOP OUT Jack
- Video 1 Volt Signal Indicator
- 10 MHz Bandwidth, NTSC or PAL
- 1/3-Rack, High-Density Rack Mounting
| Input | 1 k bridging 75 line |
| Gain | -1 dB to +7 dB (0.9 to 2.25 V p-p, adjustable) |
| Outputs | 1 LOOP OUT from input signal; 4 amplified outputs |
| Output Level | 1 V p-p into 75 |
| Frequency Response | 10 Hz to 10 MHz (± 0.2 dB) |
| Noise | < -70 dB below (1 V p-p) |
| Output Isolation | > 40 dB |
| Differential Gain | 0.1% |
| Differential Phase | 0.1 degree (measured at 10% and 90 APL) |
| Connector Type | BNC, PHONO, or Type F |
| Ambient Operating Environment | 0¡ C to 55¡ C |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 60 mA |
| Dimensions | Height: 1.7 in (4.3 cm), Width: 5.8 in (15.0 cm), Depth: 3.0 in (7.7 cm) |
| Package Type | Cardboard Box |
| Package Dimensions | 4.375 x 7 x 2.25 in. |
| Shipping Weight | 0.93 lbs. |
| WEEE weight | 0.665 lbs. |
| Tariff code | 8518.40.2000 |
