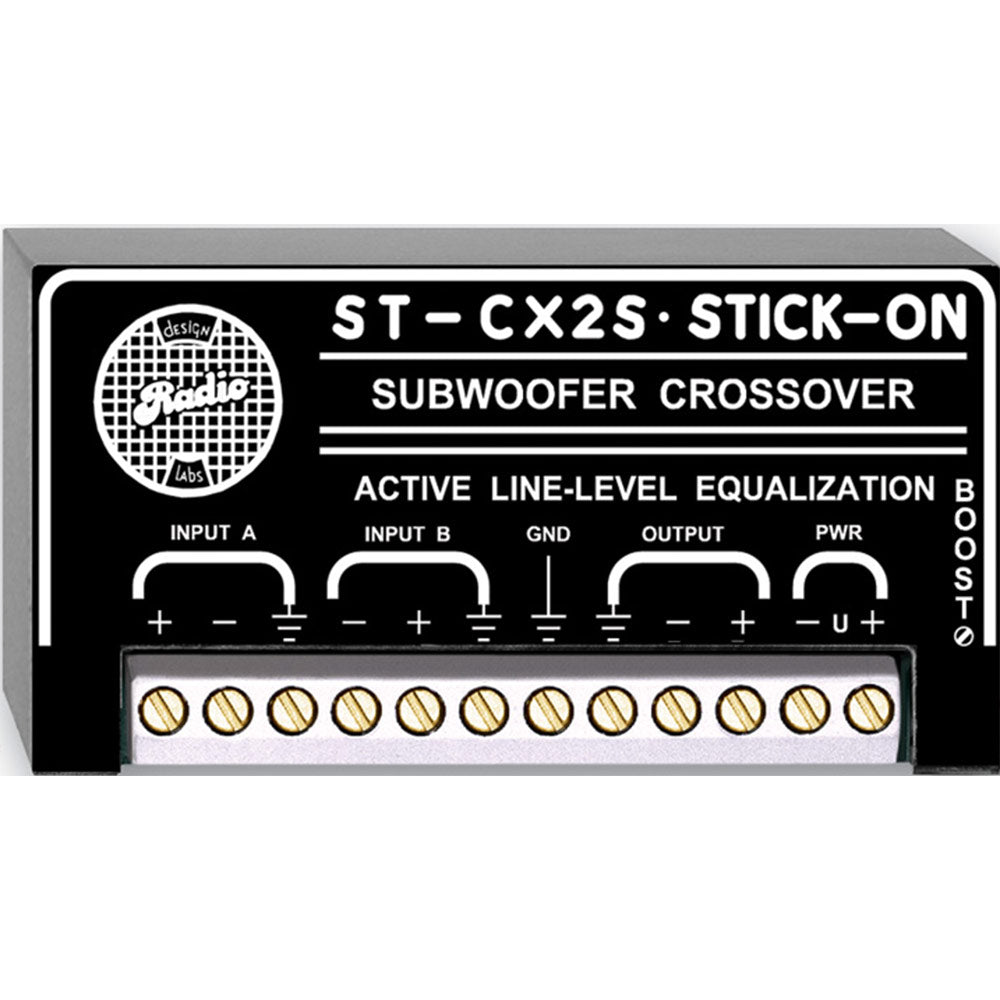

RDL ST-CX2S Subwoofer Crossover Filter
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
RDL ST-CX2S Subwoofer Crossover Filter
Sale price$174.13
Regular price$232.17
Description
The S is a subwoofer signal equalizer in the STICK-ON series of products from RDL. The S offers flexibility in equalization adjustment, with the exceptional performance of RDL.
The S features two separate, isolated balanced bridging inputs which may each be wired balanced or unbalanced. The output driver is 150 ohm balanced which can drive low or high impedance balanced or unbalanced lines. The module operates at unity gain at 63 Hz (balanced input to balanced output). A BOOST control permits adjustment of the output at 32 Hz from flat to +5.5 dB.The S features RDL™s SupplyFlex power input configuration for operation directly from ground-referenced, floating or bipolar 24 Vdc power.-
Features:
- Active Subwoofer Equalization
- Subwoofer Signal from Stereo Source
- Adjustable Low-Frequency Boost
- Low-Noise and Low-Distortion Crossover
- Active Crossover Component
- RDL SupplyFlex&trade Power Input Configuration
| Inputs (2): | 50 k balanced line-level (+4 dBu) |
| Output: | 150 balanced line-level (+4 dBu) |
| Output Bandwidth: | 22 Hz to 80 Hz, (adjustable BOOST) |
| High Frequency Attenuation: | > 45 dB (at 400 Hz) |
| Gain: | Unity at 63 Hz adjustable flat to +5.5 dB at 32 Hz |
| Headroom: | 18 dB minimum at 30 Hz (maximum boost), 22 dB typical |
| THD+N: | < 0.05% |
| Input CMRR: | > 60 dB (30 Hz or above) |
| Residual Noise: | < 90 dB (referred to +4 dBu) 95 dB typical |
| Power Requirement: | GROUND-REFERENCED or FLOATING, 24 to 33 Vdc @ 30 mA |
| Ambient Operating Environment: | 0 degrees C to 55 degrees C |
