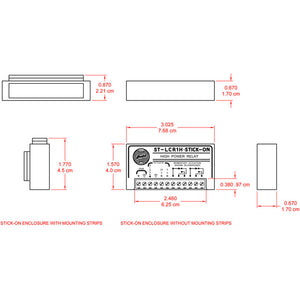

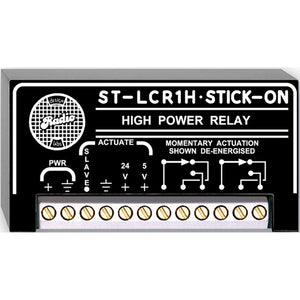

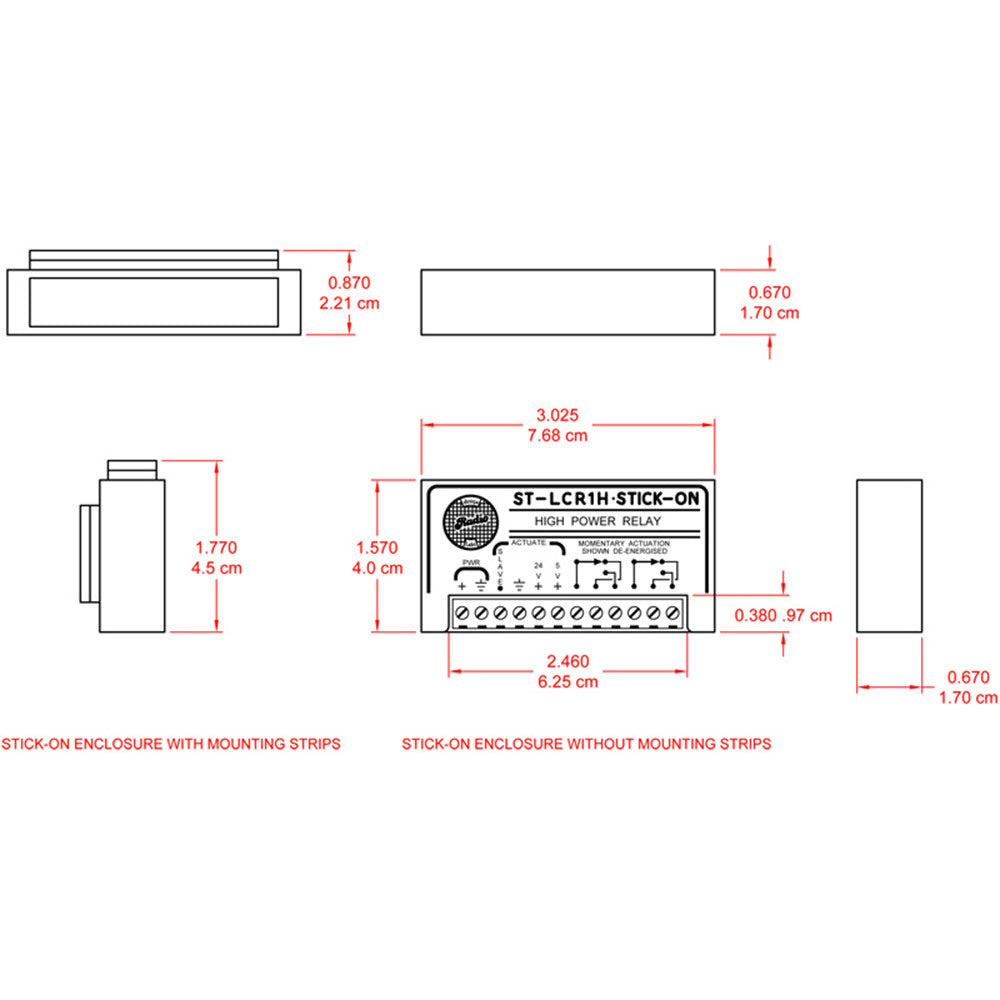

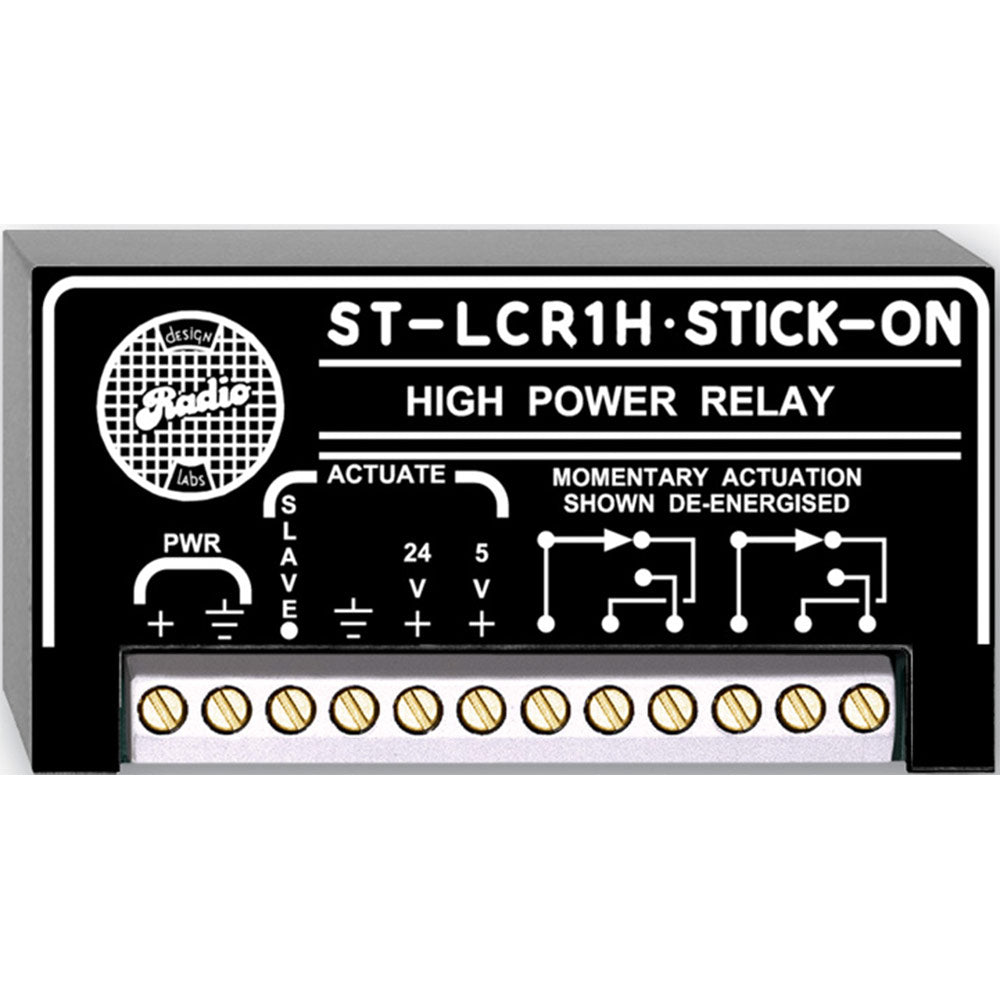

RDL ST-LCR1H High Power Logic Controlled Relay - 8 A
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
RDL ST-LCR1H High Power Logic Controlled Relay - 8 A
Sale price$154.36
Regular price$205.81
Description
The H provides dry-switching contacts for high power switching, an LED indicator showing relay activation, and input connections. Switching contacts are suited to switching many 8 ohm , 70.7 V or 100 V speaker lines.
The relay closes when an input signal is applied. The relay releases when the input signal is removed. The H is ideally suited to applications where high power switching contacts need to be added to nearly any type of control signal. The relay may be activated from any of 3 input signals: 5 Vdc, 24 Vdc, or open-collector.Use the H individually, or combine it with other RDL products as part of a complete audio/video system.-
Features:
- Switching of Speaker Lines
- Control from Switch or Logic Circuits
- DPDT Switching Contacts
- Open-Collector Switching
- 8 Amp Relay Contacts
| Control Inputs: | SLAVE terminal used as an input from remote push-button or switch turns on relay when that switch is on. Activation is by connecting this input to Ground. Input from other equipmentªs open-collector output turns relay on when open-collector is on. Note: RDL switchingSTICK-ONs have open-collector outputs suitable for driving an ST-LCR1H. 5V+ accepts 3.5 to 12 Vdc to turn on relay. Relay is on only when this control signal is applied. 24V+ accepts 12 to 35 Vdc to turn on relay. Relay is on only when this control signal is applied. |
| Control Output: | SLAVE terminal open-collector @ 25 mA suitable to drive indicators or slave LCRs |
| Switching Contacts: | Double-pole, double-throw |
| Maximum Switching Power: | 60 W (220 Vdc, 125 Vac, 2A) |
| Power Requirement: | GROUND-REFERENCED, 24 to 33 Vdc @ 50 mA* * Assumes 20 mA max load at SLAVE output |
| Ambient Operating Environment: | 0 degrees C to 50 degrees C |
The H provides dry-switching contacts for high power switching, an LED indicator showing relay activation, and input connections. Switching contacts are suited to switching many 8 ohm , 70.7 V or 100 V speaker lines.
The relay closes when an input signal is applied. The relay releases when the input signal is removed. The H is ideally suited to applications where high power switching contacts need to be added to nearly any type of control signal. The relay may be activated from any of 3 input signals: 5 Vdc, 24 Vdc, or open-collector.Use the H individually, or combine it with other RDL products as part of a complete audio/video system.-
Features:
- Switching of Speaker Lines
- Control from Switch or Logic Circuits
- DPDT Switching Contacts
- Open-Collector Switching
- 8 Amp Relay Contacts
| Control Inputs: | SLAVE terminal used as an input from remote push-button or switch turns on relay when that switch is on. Activation is by connecting this input to Ground. Input from other equipmentªs open-collector output turns relay on when open-collector is on. Note: RDL switchingSTICK-ONs have open-collector outputs suitable for driving an ST-LCR1H. 5V+ accepts 3.5 to 12 Vdc to turn on relay. Relay is on only when this control signal is applied. 24V+ accepts 12 to 35 Vdc to turn on relay. Relay is on only when this control signal is applied. |
| Control Output: | SLAVE terminal open-collector @ 25 mA suitable to drive indicators or slave LCRs |
| Switching Contacts: | Double-pole, double-throw |
| Maximum Switching Power: | 60 W (220 Vdc, 125 Vac, 2A) |
| Power Requirement: | GROUND-REFERENCED, 24 to 33 Vdc @ 50 mA* * Assumes 20 mA max load at SLAVE output |
| Ambient Operating Environment: | 0 degrees C to 50 degrees C |
