Description

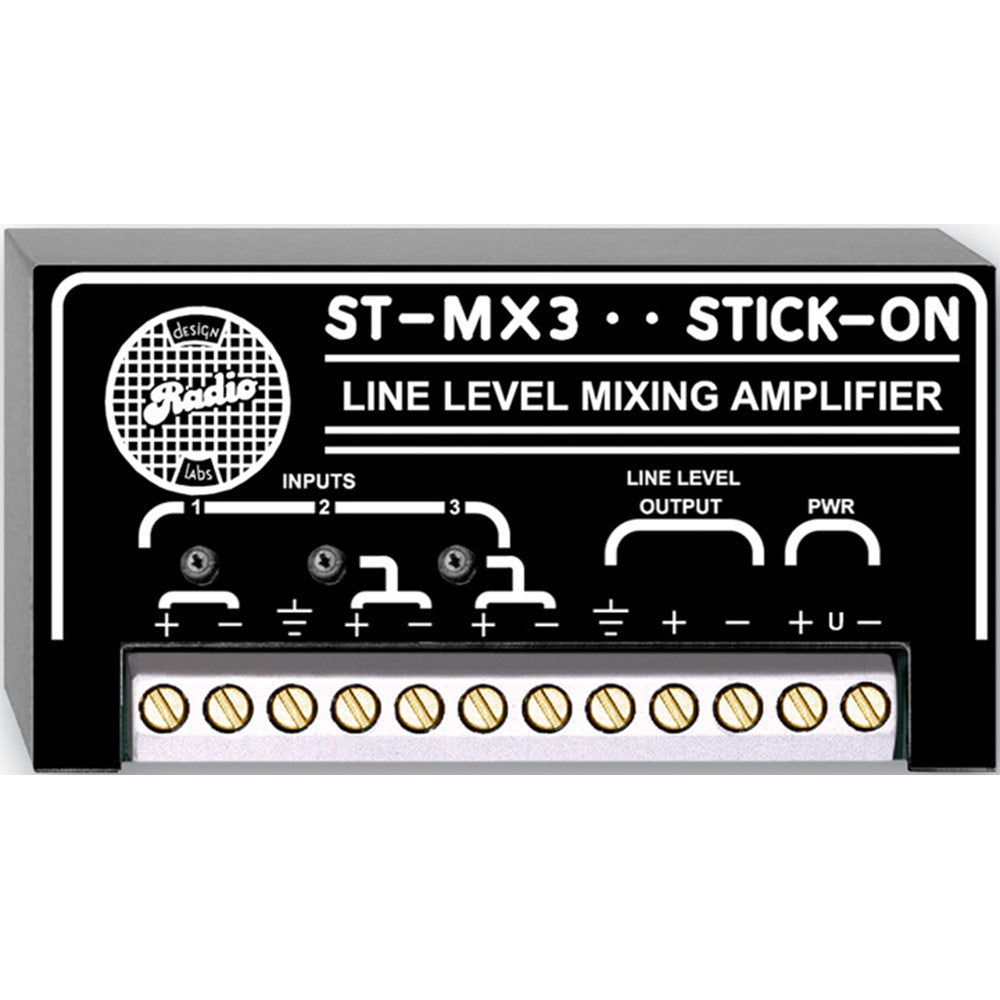

The ST-MX3 is a line-level mixer module in the STICK-ON Series of products. It provides audio mixing of three line-level inputs with individual input gain adjustments. The line-level output is capable of driving either high or low impedance, balanced or unbalanced loads.
The ST-MX3 operates from floating or bipolar dc power.For installations with microphone level inputs, use the ST-UMX3 Universal Audio Mixer.-
Features:
- Mix Line-Level Signals
- Three Individually Adjustable Inputs
- Add Additional Line Level Inputs to an Existing Mixer
- Combine Signals of Different Level, Impedance or Balanced /Unbalanced Configuration
- Isolation Between Input Signals
- Low-Noise and Low-Distortion Performance
- RDL SupplyFlex&trade Power Input Configuration
Inputs (3): | 30 k balanced or unbalanced bridging |
Input Level: | -20 dBu to +18 dBu (for +4 dBu output) -24 dBu to +14 dBu (for 0 dBu output) |
Output: | 400 to drive low or high impedance balanced or unbalanced lines |
Output Level: | +4 dBu nominal, (adjustable unbalanced output 6 dB below balanced line level) |
THD+N: | < 0.03% (10 Hz to 20 kHz) |
Frequency Response: | 10 Hz to 20 kHz (+/- 0.5 dB) |
Noise : | < -80 dB (all inputs @ 10 dB gain, referenced to +4 dBu) |
Headroom: | 18 dB |
Gain (each input): | -14 dB to +24 dB (adjustable) |
CMRR: | > 50 dB (50 to 120 Hz) |
Power Requirement: | GROUND-REFERENCED or FLOATING, 24 to 33 Vdc @ 55 mA |
Ambient Operating Environment: | 0 degrees C to 55 degrees C |
The ST-MX3 is a line-level mixer module in the STICK-ON Series of products. It provides audio mixing of three line-level inputs with individual input gain adjustments. The line-level output is capable of driving either high or low impedance, balanced or unbalanced loads.
The ST-MX3 operates from floating or bipolar dc power.For installations with microphone level inputs, use the ST-UMX3 Universal Audio Mixer.-
Features:
- Mix Line-Level Signals
- Three Individually Adjustable Inputs
- Add Additional Line Level Inputs to an Existing Mixer
- Combine Signals of Different Level, Impedance or Balanced /Unbalanced Configuration
- Isolation Between Input Signals
- Low-Noise and Low-Distortion Performance
- RDL SupplyFlex&trade Power Input Configuration
Inputs (3): | 30 k balanced or unbalanced bridging |
Input Level: | -20 dBu to +18 dBu (for +4 dBu output) -24 dBu to +14 dBu (for 0 dBu output) |
Output: | 400 to drive low or high impedance balanced or unbalanced lines |
Output Level: | +4 dBu nominal, (adjustable unbalanced output 6 dB below balanced line level) |
THD+N: | < 0.03% (10 Hz to 20 kHz) |
Frequency Response: | 10 Hz to 20 kHz (+/- 0.5 dB) |
Noise : | < -80 dB (all inputs @ 10 dB gain, referenced to +4 dBu) |
Headroom: | 18 dB |
Gain (each input): | -14 dB to +24 dB (adjustable) |
CMRR: | > 50 dB (50 to 120 Hz) |
Power Requirement: | GROUND-REFERENCED or FLOATING, 24 to 33 Vdc @ 55 mA |
Ambient Operating Environment: | 0 degrees C to 55 degrees C |
