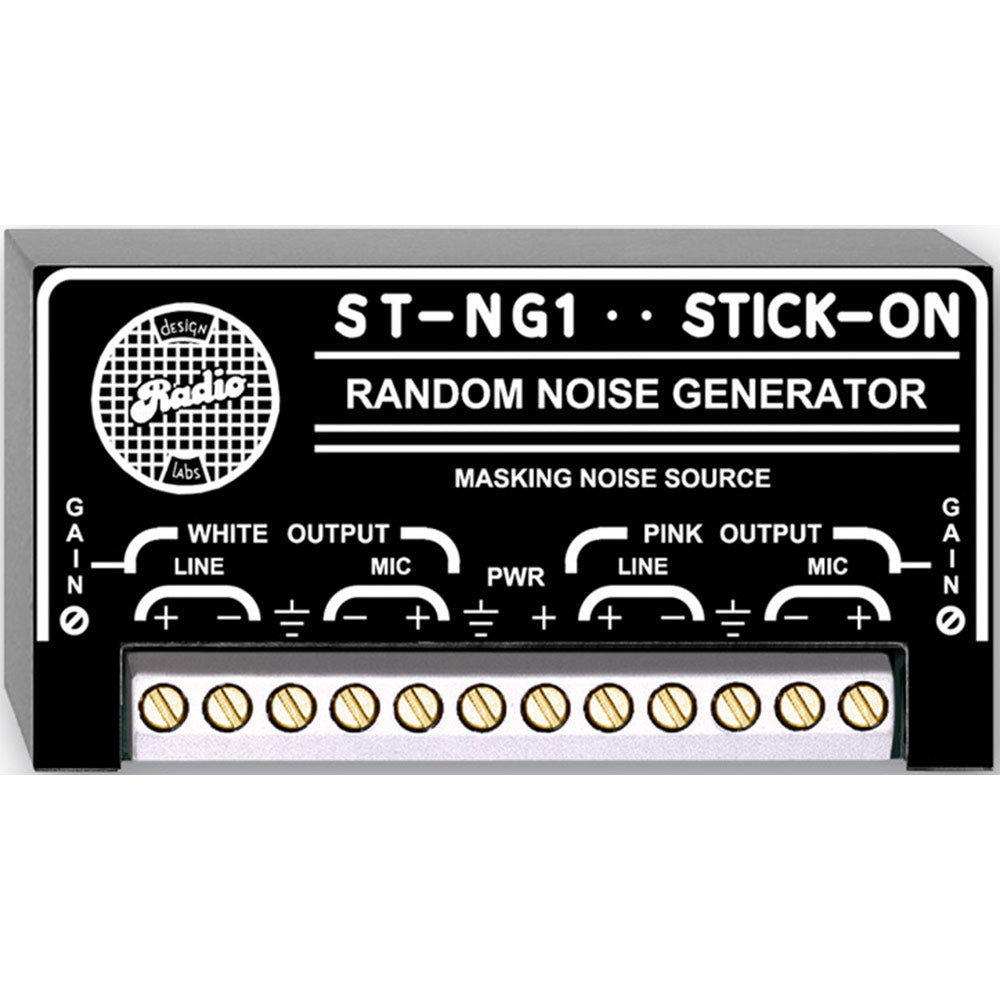

RDL ST-NG1 Stick-On Series Random Noise Generator
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ST-NG1 is the ideal choice where random white or pink noise is needed. It is suitable either as a reference noise source for audio measurements or as a masking noise source in engineered sound or counter-intelligence applications.
Amplitude limiting circuitry in the ST-NG1 controls extreme peak excursions while preserving random variations of at least 20 dB. The noise generating circuitry in the ST-NG1 is truly random analog noise occupying the full bandwidth from 20 Hz to 20 kHz. This makes the ST-NG1 ideal in masking environments where secure, random noise is required. Unlike the typical digitally generated pseudo-random noise generators which can be decoded and removed by effective intelligence equipment, the ST-NG1 produces no repetitive frequency or amplitude pattern.Wherever white or pink noise signals are needed, the ST-NG1 is the ideal choice. Use the ST-NG1 individually, or combine it with other RDL products as part of a complete audio/video system.-
Features:
- Random Noise Source
- Masking Noise Sources
- Pink Noise
- White Noise
- Mic and/or Line Level Noise Signals
| Outputs (each source): | +4 dBu balanced line-level -45 dBu balanced mic-level |
| Output Level: | OFF to +8 dBu (line-level output adjustable) Off to -40 dBu (mic-level output) |
| Spectral Distribution: | White and Pink |
| Power Requirement: | GROUND-REFERENCED 24 to 33 Vdc @ 30 mA |
| Ambient Operating Environment: | 0 degrees C to 55 degrees C |
The ST-NG1 is the ideal choice where random white or pink noise is needed. It is suitable either as a reference noise source for audio measurements or as a masking noise source in engineered sound or counter-intelligence applications.
Amplitude limiting circuitry in the ST-NG1 controls extreme peak excursions while preserving random variations of at least 20 dB. The noise generating circuitry in the ST-NG1 is truly random analog noise occupying the full bandwidth from 20 Hz to 20 kHz. This makes the ST-NG1 ideal in masking environments where secure, random noise is required. Unlike the typical digitally generated pseudo-random noise generators which can be decoded and removed by effective intelligence equipment, the ST-NG1 produces no repetitive frequency or amplitude pattern.Wherever white or pink noise signals are needed, the ST-NG1 is the ideal choice. Use the ST-NG1 individually, or combine it with other RDL products as part of a complete audio/video system.-
Features:
- Random Noise Source
- Masking Noise Sources
- Pink Noise
- White Noise
- Mic and/or Line Level Noise Signals
| Outputs (each source): | +4 dBu balanced line-level -45 dBu balanced mic-level |
| Output Level: | OFF to +8 dBu (line-level output adjustable) Off to -40 dBu (mic-level output) |
| Spectral Distribution: | White and Pink |
| Power Requirement: | GROUND-REFERENCED 24 to 33 Vdc @ 30 mA |
| Ambient Operating Environment: | 0 degrees C to 55 degrees C |
