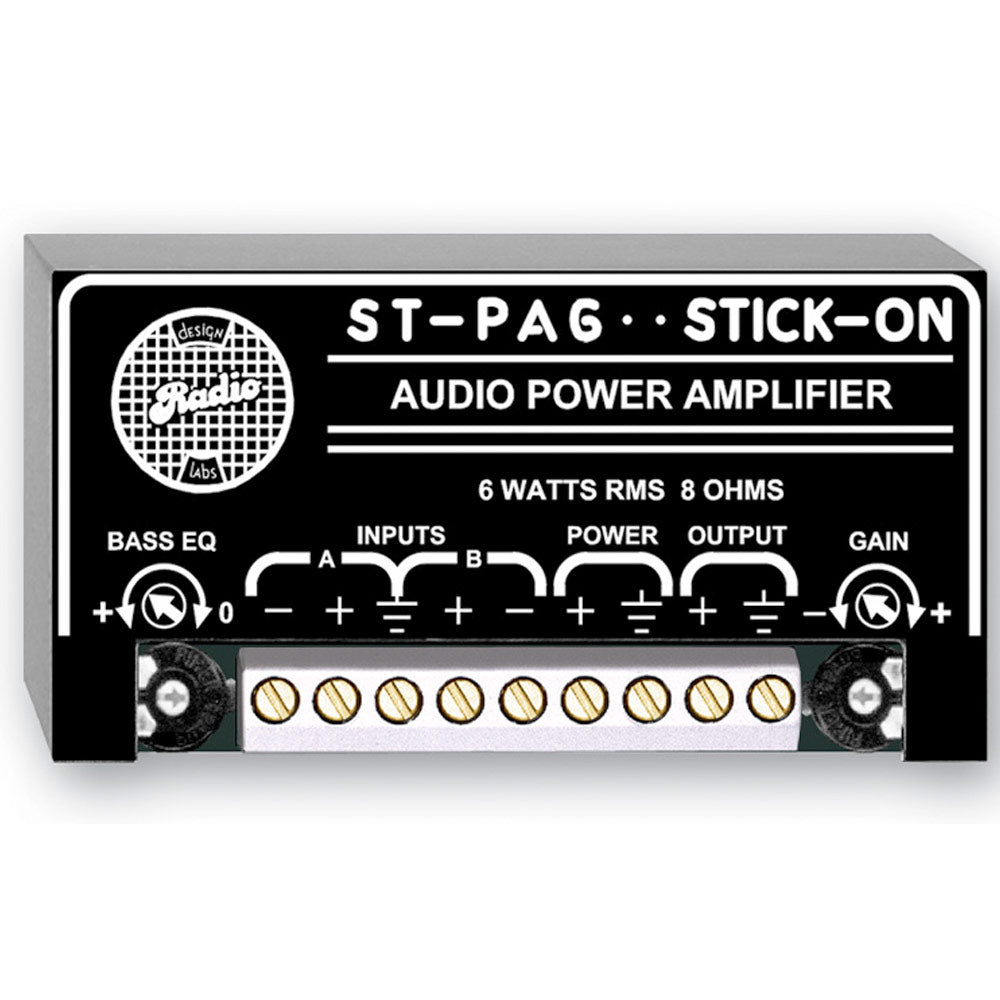

RDL ST-PA6 Stick-On 6-Watt Utility Power Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ST-PA6 represents the second generation of RDLs breakthrough in the traditional power vs. size ratio. Present technology permits features and performance at the most economical cost ever. The ST-PA6 offers 6 watts of power for a price you would expect to pay for 3 watts.
The ST-PA6 features two balanced audio inputs, a gain control, equalization control and an 8 output. The output is designed to deliver a clean 6 watts RMS into an 8 speaker. Each input is a balanced bridge, with the two inputs actively mixed equally. This is particularly useful for monitoring a stereo line. The output stage features protection against short-circuits and thermal overload. The output protection automatically resets once the condition is removed, making fuse protection unnecessary.-
Features:
- 6 Watts RMS into 8 ohm
- Amplifier with Balanced Audio Inputs
- Built-In 2-Input Mixer
- Low-Noise and Low-Distortion Amplifier
- Amplifier with Loudness Equalization
| Inputs (2): | 10 k balanced (may be wired balanced (may be wired |
| Input Level: | 400 mV (RMS) minimum (for rated power output) |
| Frequency Response: | 35 Hz to 20 kHz (+/- 1.5 dB w/EQ setting flat) |
| Equalization: (Single-turn trimmer) | Flat to +5 dB @ 60 Hz (center frequency of boost) Flat to +4 dB @ 100 Hz Flat to +3 dB @ 120 Hz |
| THD+N: | < 0.35% |
| Noise: | < -60 dB |
| Output: | 8 unbalanced, 6 watts RMS |
| Power Requirement: | GROUND-REFERENCED, 24 to 33 Vdc @ 400 mA |
| Ambient Operating Environment: | -10 degrees C to 50 degrees C |
The ST-PA6 represents the second generation of RDLs breakthrough in the traditional power vs. size ratio. Present technology permits features and performance at the most economical cost ever. The ST-PA6 offers 6 watts of power for a price you would expect to pay for 3 watts.
The ST-PA6 features two balanced audio inputs, a gain control, equalization control and an 8 output. The output is designed to deliver a clean 6 watts RMS into an 8 speaker. Each input is a balanced bridge, with the two inputs actively mixed equally. This is particularly useful for monitoring a stereo line. The output stage features protection against short-circuits and thermal overload. The output protection automatically resets once the condition is removed, making fuse protection unnecessary.-
Features:
- 6 Watts RMS into 8 ohm
- Amplifier with Balanced Audio Inputs
- Built-In 2-Input Mixer
- Low-Noise and Low-Distortion Amplifier
- Amplifier with Loudness Equalization
| Inputs (2): | 10 k balanced (may be wired balanced (may be wired |
| Input Level: | 400 mV (RMS) minimum (for rated power output) |
| Frequency Response: | 35 Hz to 20 kHz (+/- 1.5 dB w/EQ setting flat) |
| Equalization: (Single-turn trimmer) | Flat to +5 dB @ 60 Hz (center frequency of boost) Flat to +4 dB @ 100 Hz Flat to +3 dB @ 120 Hz |
| THD+N: | < 0.35% |
| Noise: | < -60 dB |
| Output: | 8 unbalanced, 6 watts RMS |
| Power Requirement: | GROUND-REFERENCED, 24 to 33 Vdc @ 400 mA |
| Ambient Operating Environment: | -10 degrees C to 50 degrees C |
