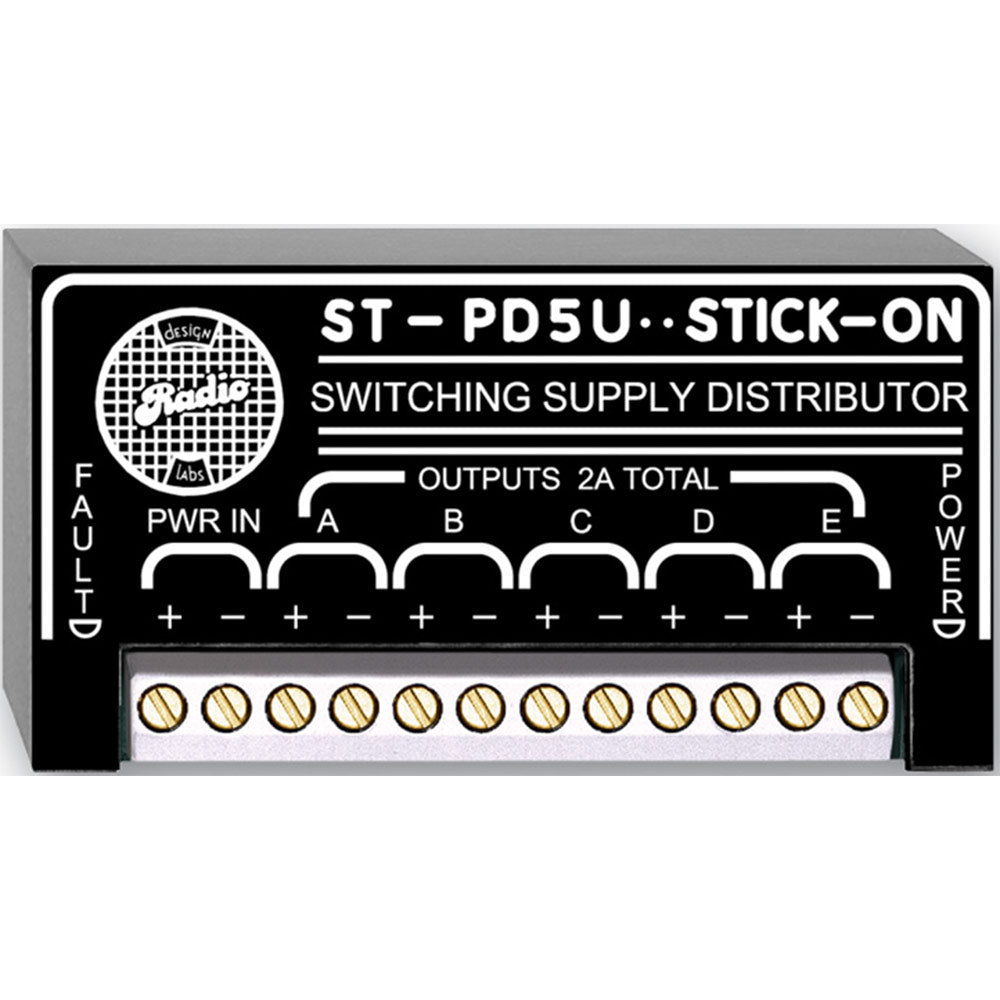

RDL ST-PD5U Stick-On 24-VDC Switching Power Supply Distributor


  • Dale #:

    RDL-STPD5U
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The U is the ideal choice where power distribution from a current-limited switching power supply is needed. It is suitable for powering up to five modules from a single power supply. The current limiting circuitry in many switching power supplies will cause the supply to shut down upon power-up w... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The U is the ideal choice where power distribution from a current-limited switching power supply is needed. It is suitable for powering up to five modules from a single power supply. The current limiting circuitry in many switching power supplies will cause the supply to shut down upon power-up when a high current capacitive load is connected. Upon application of power, the U ramps the voltage up, charging any load capacitance as quickly as possible, then switching full voltage to the load. If reverse polarity is connected to the input, the U disconnects the load until the condition is corrected.

In system design, various modules are frequently operated from a single power supply. Good engineering practice requires that the power wiring to each module originate at the power supply output. The U serves as the power source for each of five modules. A single U can provide power to RDL™s floating modules. A separate U can provide power to ground-referenced modules. (Do not attempt to intermix floating and ground-referenced modules from a single U.) Note: If using a linear power supply, distribute the voltage to multiple modules using an RDL Wherever power distribution from a switching power supply is needed, the U is the ideal choice. Use the U combined with other RDL RACK-UP, STICK-ON, Flat-Pak or TX series products as part of a complete audio/video system.
    Features:
  • Distribution of 24 Vdc Power
  • Soft-Start from Switching Supply
  • Distribution of dc Power
  • Up to 5 Power Distribution Points
  • Voltage Presence Indication
  • Reverse Voltage Protection

More +

Product Specs

Input/Output Voltage:24 Vdc @ 2 A (Intended for use with current limited switching supply)
Number of Outputs (5):Total load current must not exceed 2 A
Indicators (2):POWER LED
FAULT LED
Ambient Operating Environment:0 degrees C to 50 degrees C
