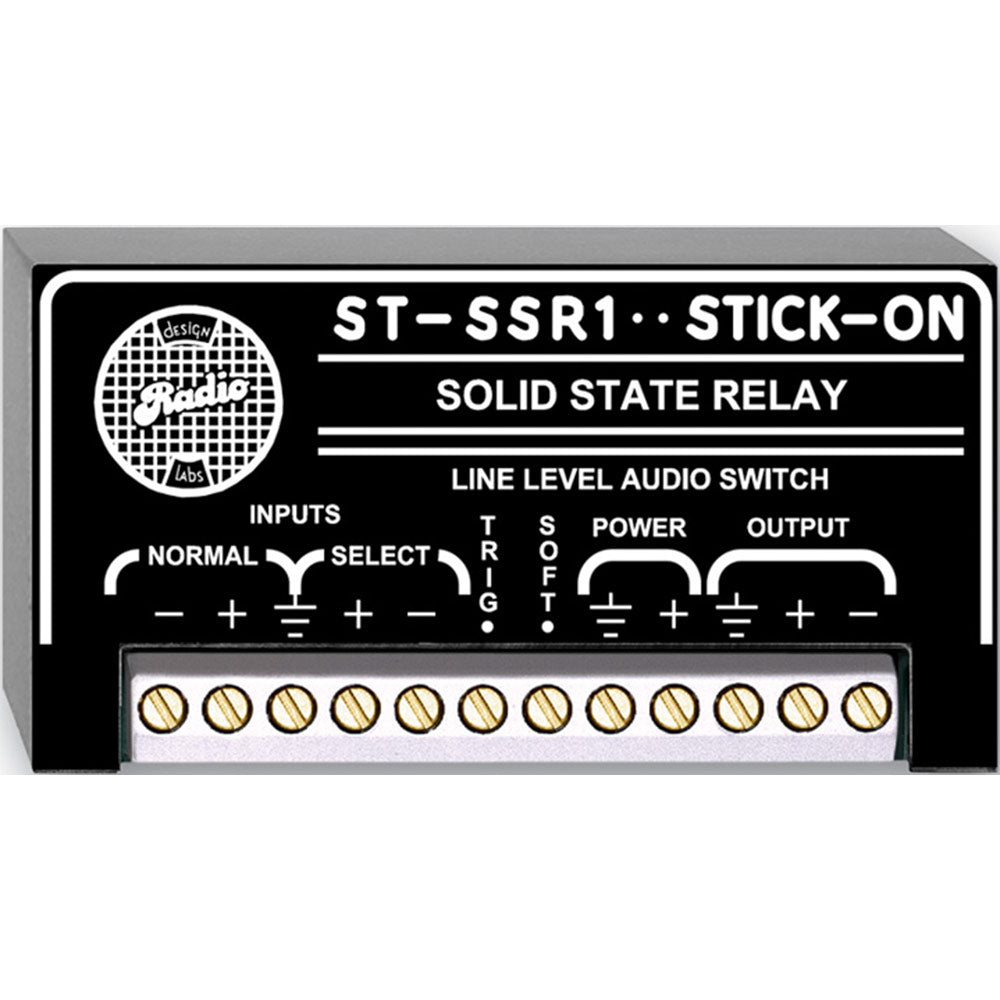

RDL ST-SSR1 Solid State 2X1 Line Level Audio Relay



  • Dale #:

    RDL-STSSR1

  • Availability:

    Not in Stock - Reserve Yours

  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Please Note: requires PS-24AS Power Supply (sold separately)

Description

The ST-SSR1 was designed for absolute silent switching of audio signals. It supports two balanced line-level inputs and one balanced output. Each can be used unbalanced as well. The ST-SSR1 is perfect for switching between two input signals or as a silent On/Off switch for a single channel. Perfo... Read More

Retail Price: $203.41 Our Price: $152.56

affirm logo 3, 6 or 12 monthly payments available.

Learn more

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The ST-SSR1 was designed for absolute silent switching of audio signals. It supports two balanced line-level inputs and one balanced output. Each can be used unbalanced as well. The ST-SSR1 is perfect for switching between two input signals or as a silent On/Off switch for a single channel. Performance is in keeping with the technical standards for which RDL has become known. The user can program the module for either fast or soft switching.

The SELECT input feeds the OUTPUT when the TRIG terminal is grounded, otherwise the OUTPUT is fed by the NORMAL input.The control current required at the TRIG terminal is so minimal (< 0.5 mA) that the ST-SSR1 can be controlled from nearly any source from switches to logic circuits.
    Features:
  • Switch Line Level Sources
  • Select Between Two Balanced Lines
  • Silent Audio Switching
  • Switching Without Hard Relay Contacts
  • Fast Switching for Audio Muting
  • Selection by Open-Collector Logic

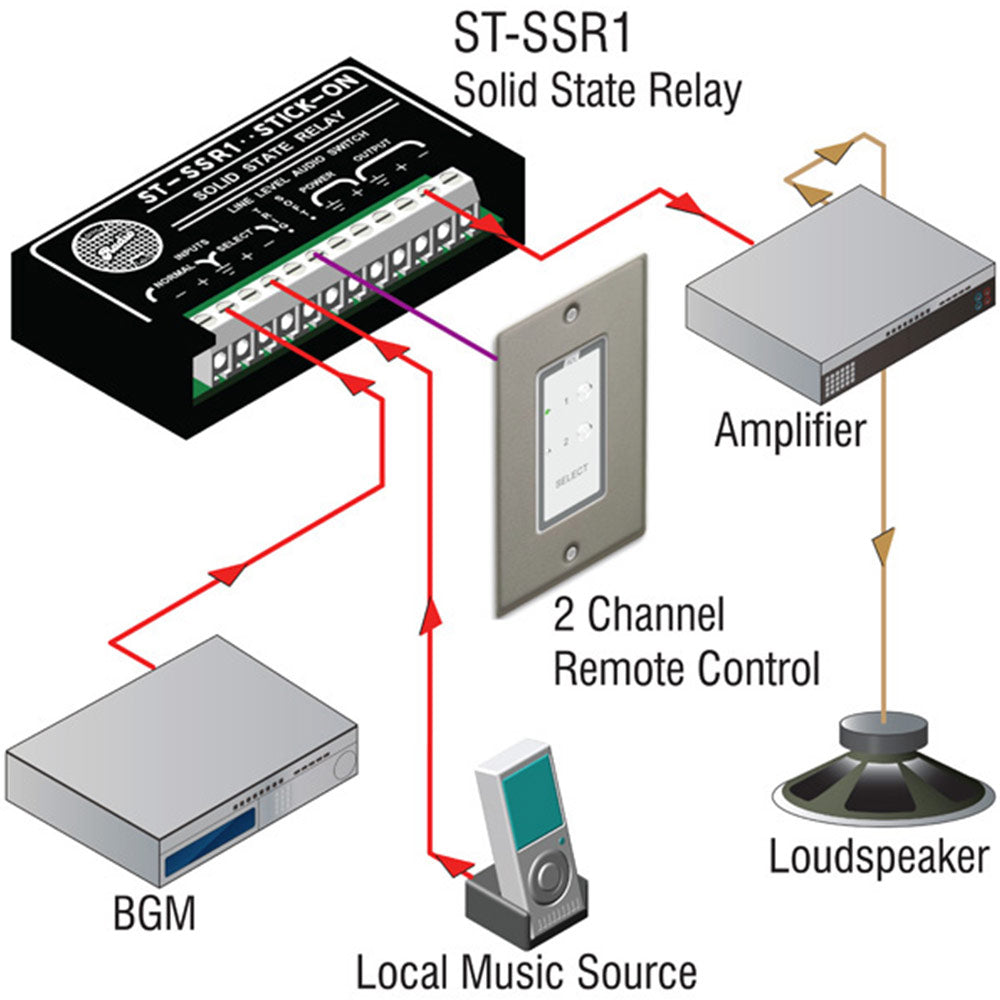

The ST-SSR1 may be controlled using the RDL RC2-ST, RT2 or RUC-4 remote controls.

More +

Product Specs

Switching Time:Fast    /    Soft
Time required for NORMAL input to turn off:10 us   /    5 ms
Time required for NORMAL input to turn on:15 us   /    70 ms
Time required for SELECT input to turn off:15 us   /    10 ms
Time required for SELECT input to turn on:20 us   /    35 ms
Control Signal:TRIG terminal must be externally
pulled to ground
Control Current:0.5 mA
THD+N:< 0.05%
Frequency Response:15 Hz to 20 kHz (+/- 0.5 dB, bridging load)
30 Hz to 20 kHz (+/- 0.5 dB, 600 load)
Noise (below +4 dBu):< -80 dB (85 dB typical)
Headroom (above +4 dBu):> 18 dB
CMRR> 45 dB (100 Hz, either port)
ON Gain:Unity (600 balanced input/output)
OFF Attenuation:> 80 dB (10 Hz to 20 kHz, either input)
Indicators (2):LED showing active input (left LED=NORMAL right LED=SELECT)
Power Requirement:GROUND-REFERENCED, 24 to 33 Vdc @ 40 mA
Ambient Operating Environment:0 degrees C to 55 degrees C
