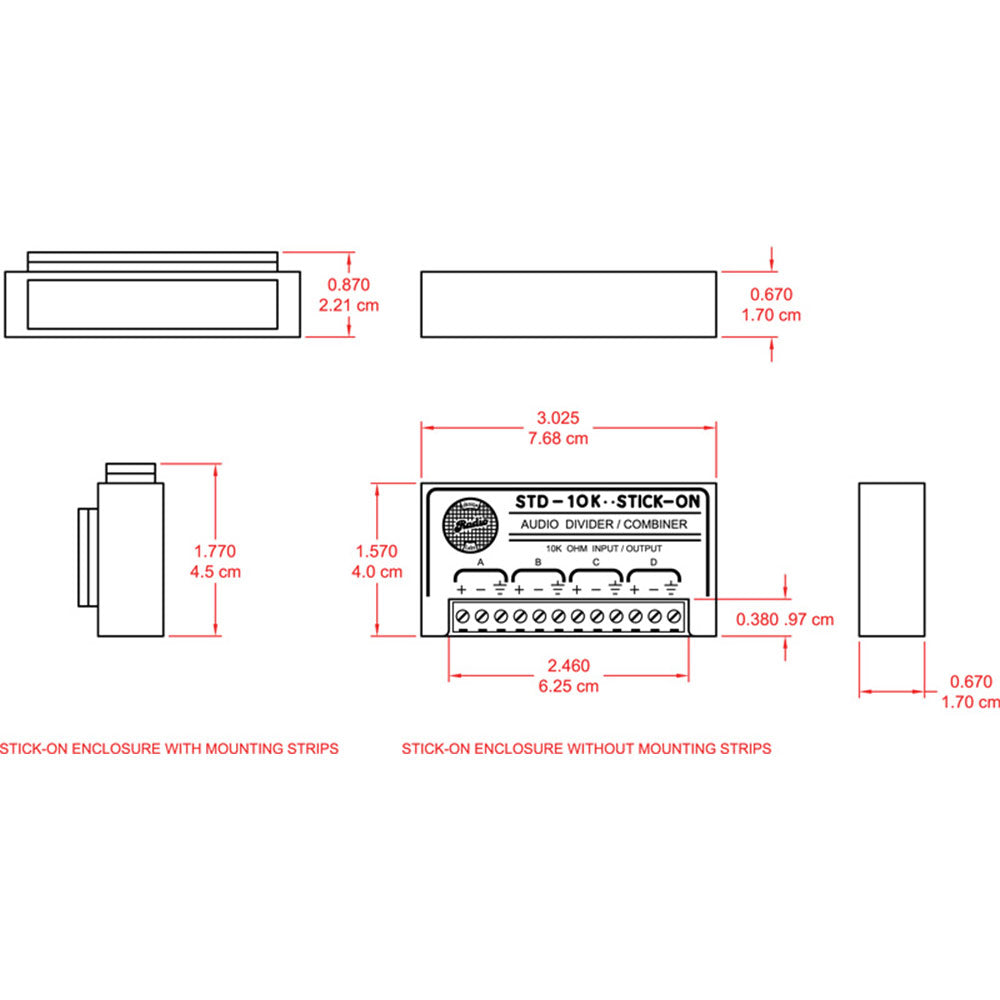

RDL STD-10K Stick-On Audio Divider/Combiner 10K Ohm
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Each module is a resistive branching network with RF filtering on each of the four channels. Any channel, A through D, may be either an input or an output. This permits combining stereo signals into mono inputs, splitting mono signals to multiple inputs, and even combining microphones with output shorting switches into a single amplifier input. The modules are available in 150 ohm , 600 ohm and 10 k ohm models. All inputs and outputs are balanced.
-
Features:
- 150, 600 or 10 k ohm Operation
- Combine Audio Signals to a Single Output
- Filter RF from an Audio Line
- Combine Stereo Signals
- Feed a Mono Signal to Stereo Inputs
- Combine Multiple Mics to a Single Amp
- Compactness of RDL STICK-ONs
| Circuit Type: | Passive |
| Circuit Configuration: | Balanced |
| Input/Output Impedance: | 150 , 600 , or 10 k, as marked |
| Number of Inputs / Outputs: | 4 total usable in any combination split 1 in to 3 out 2 in to 2 out 3 in to 1 out |
| Insertion Loss: | 3 dB |
| Isolation Between Channels: | 3 dB (use RDL mixers or distribution amps for isolation) |
| Maximum Signal Input: | +28 dBu (at 600 ) +22 dBu (at 150 ) |
| Power Requirement: | Passive (not required) |
Each module is a resistive branching network with RF filtering on each of the four channels. Any channel, A through D, may be either an input or an output. This permits combining stereo signals into mono inputs, splitting mono signals to multiple inputs, and even combining microphones with output shorting switches into a single amplifier input. The modules are available in 150 ohm , 600 ohm and 10 k ohm models. All inputs and outputs are balanced.
-
Features:
- 150, 600 or 10 k ohm Operation
- Combine Audio Signals to a Single Output
- Filter RF from an Audio Line
- Combine Stereo Signals
- Feed a Mono Signal to Stereo Inputs
- Combine Multiple Mics to a Single Amp
- Compactness of RDL STICK-ONs
| Circuit Type: | Passive |
| Circuit Configuration: | Balanced |
| Input/Output Impedance: | 150 , 600 , or 10 k, as marked |
| Number of Inputs / Outputs: | 4 total usable in any combination split 1 in to 3 out 2 in to 2 out 3 in to 1 out |
| Insertion Loss: | 3 dB |
| Isolation Between Channels: | 3 dB (use RDL mixers or distribution amps for isolation) |
| Maximum Signal Input: | +28 dBu (at 600 ) +22 dBu (at 150 ) |
| Power Requirement: | Passive (not required) |
