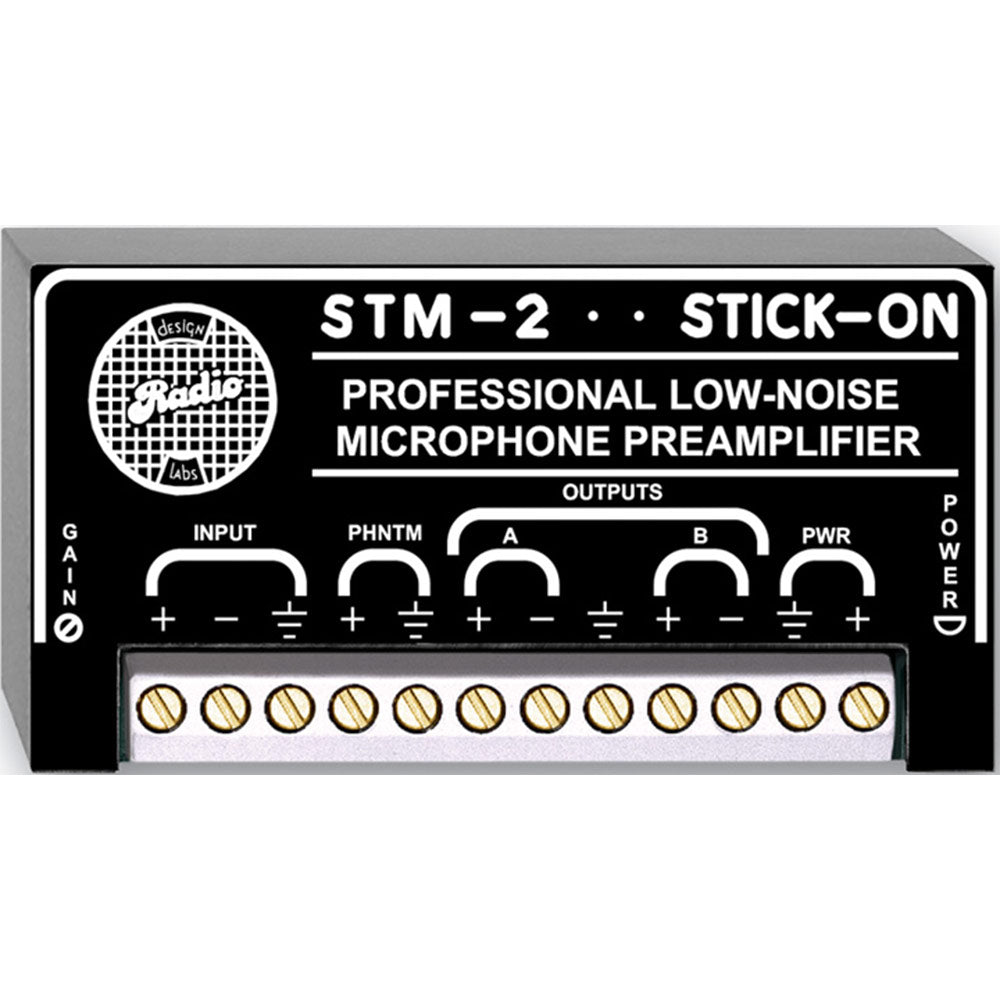

RDL STM-2 Stick-On Low-Noise Microphone Preamplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

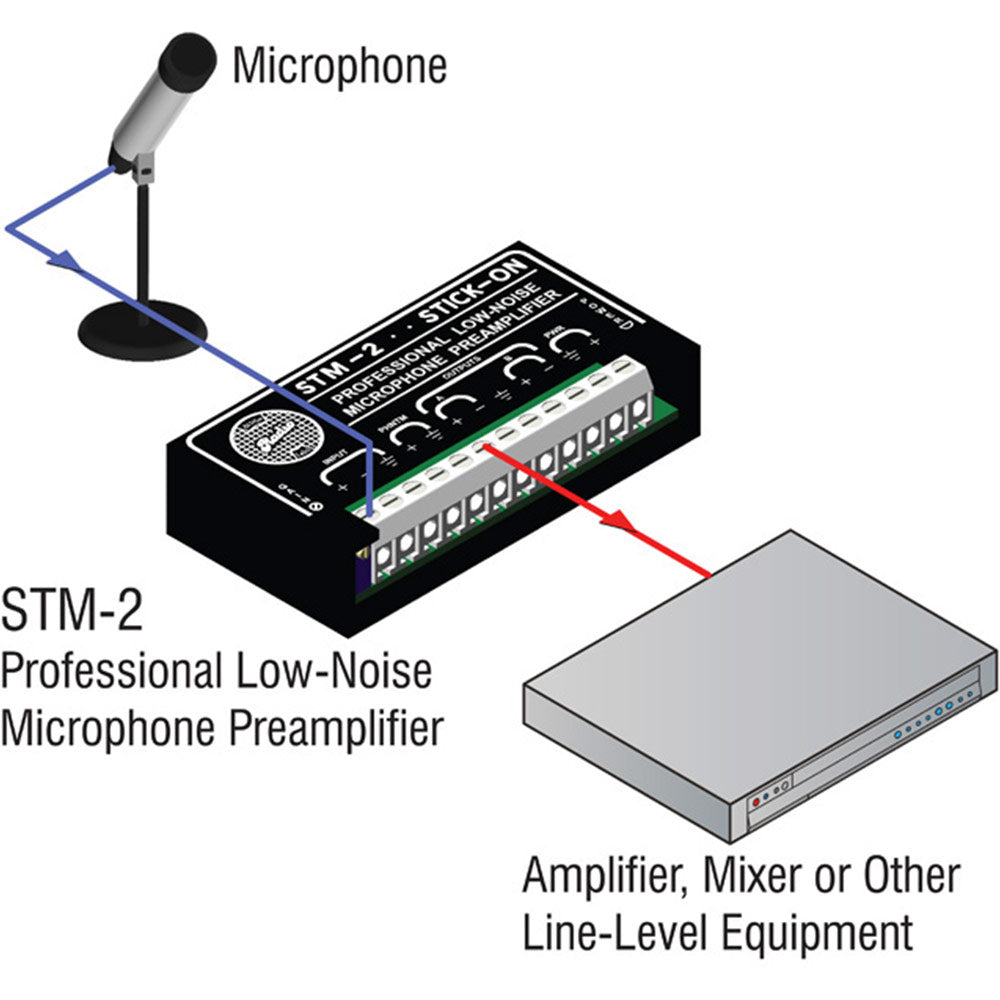

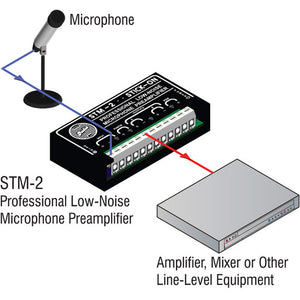

The STM-2 is a quality low-noise microphone preamplifier designed for use in commercial sound, broadcast, and recording. The STM-2 is very flexible, with gain adjustment from 35 to 65 dB, two balanced or unbalanced outputs, and available phantom supply input. Its ultra-low distortion and lownoise performance make it the best choice, even when larger preamps could be used. The single-ended supply input range is from 24 to 33 Vdc. Operation from 12 Vdc is possible with a 6 dB reduction in headroom. Each output drives high or low impedance loads.
-
Features:
- Low-Noise Mic Preamp
- Adjustable Output Level
- High or Low Impedance Mic Inputs
- Mic Input to 2 Line Outputs
- Two Balanced or Unbalanced Outputs
- Phantom Capability
- RF-Filtered Inputs
| Input: | 500 balanced 5 k unbalanced |
| Phantom: | 24Vdc IEC 1938: 1996-12, Filtered |
| Outputs (2): | +4 dBu 150 balanced -10dBv unbalanced |
| Frequency Response: | 50 Hz to 20 kHz (+/- 1.5 dB) |
| Gain: | Adjustable 35 to 65 dB |
| THD+N: | < 0.05% (50 dB Gain) |
| CMRR: | > 60 dB (50 Hz to 30 kHz) |
| Residual Noise: | < -70 dB (below +4 dBu 150 source @ 50 dB gain) |
| Headroom: | > 20 dB (24 Vdc supply) > 14 dB (12 Vdc supply) |
| Power Requirement: | GROUND-REFERENCED, 24 to 33 Vdc @ 25 mA |
| Ambient Operating Environment: | 0 degrees C to 55 degrees C |
The STM-2 is a quality low-noise microphone preamplifier designed for use in commercial sound, broadcast, and recording. The STM-2 is very flexible, with gain adjustment from 35 to 65 dB, two balanced or unbalanced outputs, and available phantom supply input. Its ultra-low distortion and lownoise performance make it the best choice, even when larger preamps could be used. The single-ended supply input range is from 24 to 33 Vdc. Operation from 12 Vdc is possible with a 6 dB reduction in headroom. Each output drives high or low impedance loads.
-
Features:
- Low-Noise Mic Preamp
- Adjustable Output Level
- High or Low Impedance Mic Inputs
- Mic Input to 2 Line Outputs
- Two Balanced or Unbalanced Outputs
- Phantom Capability
- RF-Filtered Inputs
| Input: | 500 balanced 5 k unbalanced |
| Phantom: | 24Vdc IEC 1938: 1996-12, Filtered |
| Outputs (2): | +4 dBu 150 balanced -10dBv unbalanced |
| Frequency Response: | 50 Hz to 20 kHz (+/- 1.5 dB) |
| Gain: | Adjustable 35 to 65 dB |
| THD+N: | < 0.05% (50 dB Gain) |
| CMRR: | > 60 dB (50 Hz to 30 kHz) |
| Residual Noise: | < -70 dB (below +4 dBu 150 source @ 50 dB gain) |
| Headroom: | > 20 dB (24 Vdc supply) > 14 dB (12 Vdc supply) |
| Power Requirement: | GROUND-REFERENCED, 24 to 33 Vdc @ 25 mA |
| Ambient Operating Environment: | 0 degrees C to 55 degrees C |
