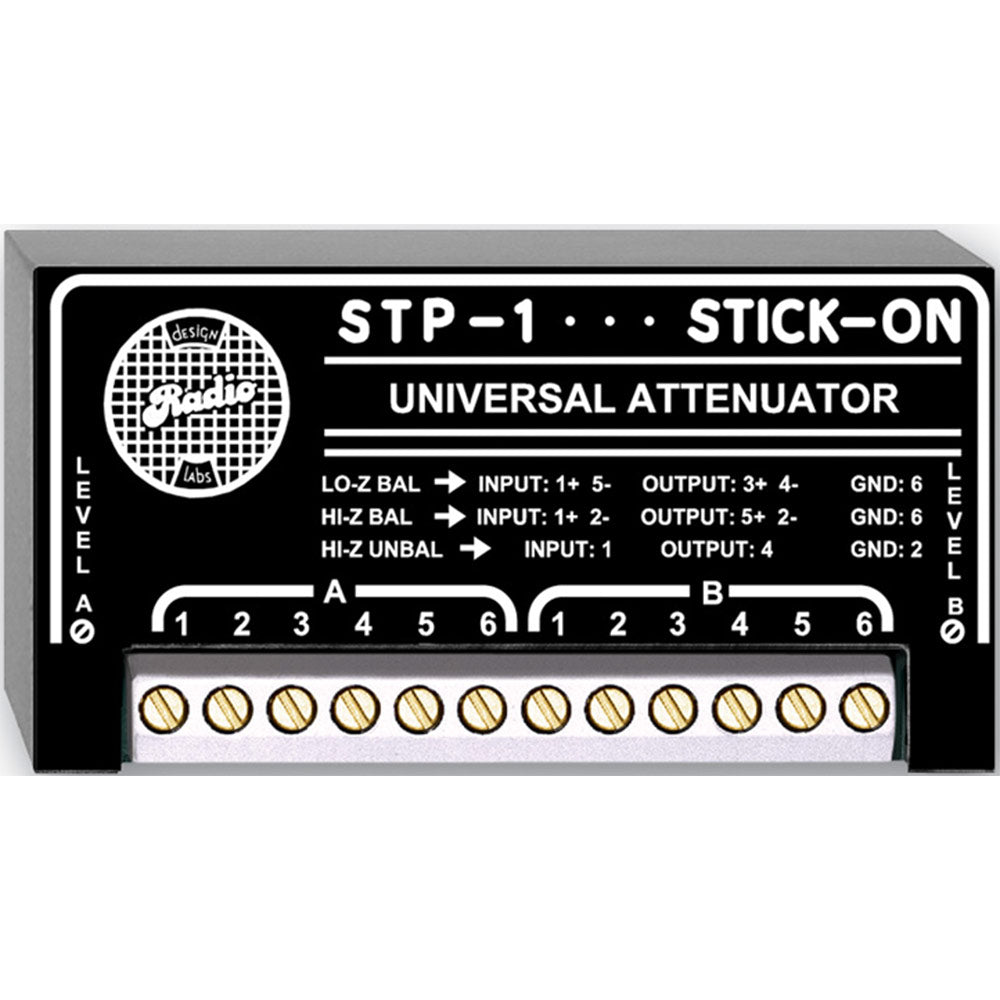

RDL STP-1 Dual Variable -85 Db Attenuator for Lo-Z and Hi-Z balanced or unbalanced signals
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The STP-1 is a pair of convenient attenuator pads that can be located at the precise location that attenuation is needed. The low-cost STP-1 eliminates the costly labor of figuring and assembling fixed pads. Multi-turn trimmers in the STP-1 permit precise adjustment of levels without the need to connect any jumpers or external resistors. The STP-1 operates in either high or low impedance, balanced or unbalanced circuits. The wiring legend is printed on the case for easy installation.
-
Features:
- Audio Level Attenuation
- Adjust Audio Level into Equipment
- Preset Audio Levels
- Precisely Match Audio Levels
- Increase Audio Input Headroom
- Two Adjustable Attenuators in One Package
| Nominal Impedance: | HI-Z 10 k LO-Z 600 |
| Adjustment: | Screwdriver trimming adjustment, 15 turns continuous |
| Circuit Type: | Passive modified H / T pads |
| Connections: | Terminal block accepts 14 to 24 guage wire no lugs required input/output connection legend located on STP-1 |
| Maximum Signal Inputs: | |
| HI-Z Balanced Line: | +33 dBu, 35 V rms |
| LO-Z Balanced Line: | +27 dBu, 18 V rms |
| HI-Z Unbalanced Line: | +35 dBV, 45 V rms |
| Reference Levels: | Line level is +10 dBu to -10 dBu Mic level is -45 dBu to -65 dBu |
| Power Requirement: | Passive (not required) |
| Ambient Operating Environment: | -20 degrees C to 60 degrees C |
The STP-1 is a pair of convenient attenuator pads that can be located at the precise location that attenuation is needed. The low-cost STP-1 eliminates the costly labor of figuring and assembling fixed pads. Multi-turn trimmers in the STP-1 permit precise adjustment of levels without the need to connect any jumpers or external resistors. The STP-1 operates in either high or low impedance, balanced or unbalanced circuits. The wiring legend is printed on the case for easy installation.
-
Features:
- Audio Level Attenuation
- Adjust Audio Level into Equipment
- Preset Audio Levels
- Precisely Match Audio Levels
- Increase Audio Input Headroom
- Two Adjustable Attenuators in One Package
| Nominal Impedance: | HI-Z 10 k LO-Z 600 |
| Adjustment: | Screwdriver trimming adjustment, 15 turns continuous |
| Circuit Type: | Passive modified H / T pads |
| Connections: | Terminal block accepts 14 to 24 guage wire no lugs required input/output connection legend located on STP-1 |
| Maximum Signal Inputs: | |
| HI-Z Balanced Line: | +33 dBu, 35 V rms |
| LO-Z Balanced Line: | +27 dBu, 18 V rms |
| HI-Z Unbalanced Line: | +35 dBV, 45 V rms |
| Reference Levels: | Line level is +10 dBu to -10 dBu Mic level is -45 dBu to -65 dBu |
| Power Requirement: | Passive (not required) |
| Ambient Operating Environment: | -20 degrees C to 60 degrees C |
