RDL TP-BN14 - Networked Mic Input and Selectable Monitor Station
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

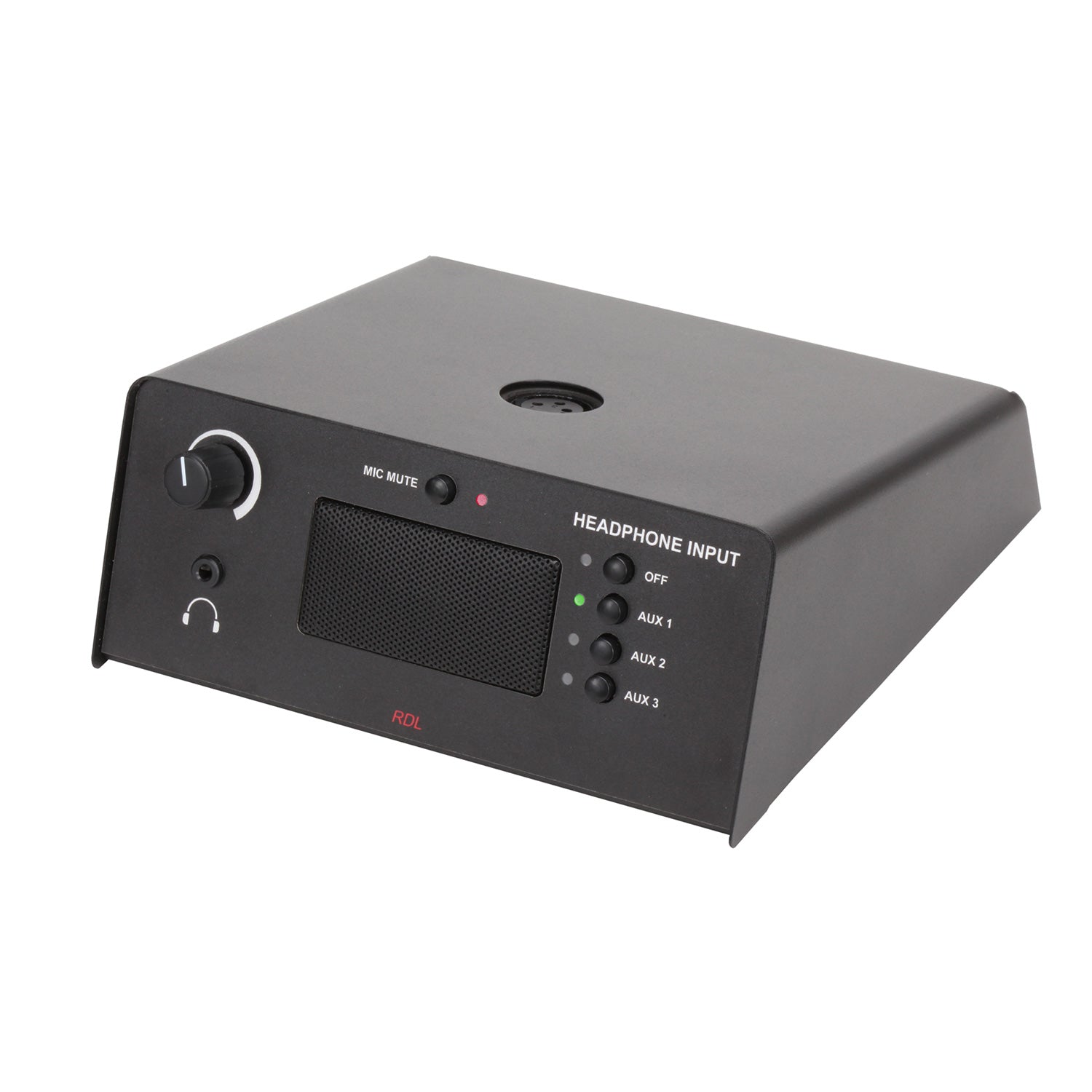

The TP-BN14 is a bidirectional Dante network interface for tabletop use. The unit provides a shock-mounted XLR microphone input with a mute button. A front-panel 2W amplified speaker provides monitoring of a specific audio mix.
The TP-BN14 provides a front-panel headphone Mini-jack with an associated four input source selector. LEDs associated with the input buttons indicate the selected source.
The front panel level control is a long-life potentiometer controlling a VCA. Audio does not pass through this control, assuring years of noise free level adjustment. The output amplifiers deliver more than 90 mW into either high or low impedance headphones. The headphone output may be used to listen to different language translations.
The TP-BN14 may be powered from a 24 Vdc power supply, available separately, or from PoE. It is used in meeting halls, conference rooms or courtrooms.
Features:
Microphone to Network Section:
- Converts a Standard Mic Source to a Dante Network Channel
- Mute Button Toggles Output On and Off or Provides Momentary Muting
- Automatic Microphone Gain for Condenser or Dynamic Mics
- P48 Phantom is Provided on the Microphone Input
Network to Speaker Section:
- 2 Watt RMS Audio Amplifier
- Compressor/Limiter Prevents Clipping
- Speaker Audio Source may be a Dedicated Channel or Follow Headphones*
Network to Headphone Section:
- Selection from 3 or 4 Mono Dante Network Sources to a Stereo Headphone
- Single-Button Selection for Each Source with LED Indication
- Upper Button Selects "OFF" or Speaker Source*
- Front-Panel Output Level Control
Common:
- Adjustment and Switch Settings on the Chassis Bottom*
- High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
- Normal or Hot-Standby Operation from PoE
*set by installer
| TYPICAL PERFORMANCE | |
| Network Connector | RJ45 Ethercon style |
| Digital Audio Ethernet Protocol: | Dante |
| Transmission Rate: | 100 Mbps |
| Sample Rates Supported: | 44.1 kHz, 48 kHz (default) |
| Bit Depth Supported: | 24 bits |
| Audio Operating Levels: | -20 dBFS = +4 dBu |
| Mic Input to Network Interface Section | |
| Input: | Balanced, XLR |
| Gain: | Automatic; 40 dB for condenser mics, 60 dB for dynamic mics |
| Input Level for +4 dBu (-20 dBFS): | -56 dBu (dynamic), -36 dBu maximum; -36 dBu (condenser), -19 dBu maximum (unclipped), -14 dBu maximum (soft clipped) |
| Input Impedance: | > 1 k½ |
| Phantom Power: | P48, 48 Vdc |
| Standard for Phantom: | IEC 61938: 2013 |
| Frequency Response: | 20 Hz to 20 kHz (± 0.75 dB) flat; with low cut filter: -1.5 dB @ 100 Hz, -8 dB @ 80 Hz, -38 dB @ 50 Hz, -60 dB @ 20 Hz |
| THD+N: | < 0.1% |
| Noise below +4 dBu (-20 dBFS): | < -70 dB |
| CMRR: | > 70 dB (50 Hz to 120 Hz) |
| Muting: | Mute Button Toggles Mic On or Off |
| Network to Headphone Output Section | |
| Selectors (4): | Momentary pushbuttons (1 for each channel); Upper Button Selects "OFF" or Speaker Source, Set by Installer |
| Indicators (4): | Green LEDs, (indicates channel selected) |
| Level adjustment: | Single-turn front-panel rotary level control |
| Output: | Stereo mini jack, 90 mW per channel (into 100 ohms), Mono source |
| Frequency Response: | 20 Hz to 20 kHz (+0, -3 dB, into 100 Ohms) |
| THD+N: | < 0.2% (1 kHz, 10 mW) |
| Noise: | < -70 dB (below 10 mW with a -18 dBFS input) |
| Network to Speaker Output Section | |
| Output power: | 2 Watts RMS |
| Frequency Range: | 150 Hz to 20 kHz, nominal |
| Common | |
| Indicators (8): | Headphone channel selected (4); Mic muted, Network Sync, Ethernet Link and Speed (2) |
| Power Connections (2): | Power Jack; PoE |
| Ambient Operating Environment: | 0¡ C to 40¡ C |
| Power Requirement: | 24 Vdc @ 300 mA, or PoE |
| PoE: | Class 0, IEEE 802.3af |
| Dimensions: | 6.95" (17.7 cm) W; 2.85" (7.24 cm) H; 7" (17.8 cm) D |
| Package Type: | Cardboard Box |
| Package Dimensions: | 7 x 7 x 3 in. |
| Shipping Weight: | 3.26 lbs. |
| WEEE weight: | 2.97 lbs. |
| Tariff code: | 8543.70.9100 |
The TP-BN14 is a bidirectional Dante network interface for tabletop use. The unit provides a shock-mounted XLR microphone input with a mute button. A front-panel 2W amplified speaker provides monitoring of a specific audio mix.
The TP-BN14 provides a front-panel headphone Mini-jack with an associated four input source selector. LEDs associated with the input buttons indicate the selected source.
The front panel level control is a long-life potentiometer controlling a VCA. Audio does not pass through this control, assuring years of noise free level adjustment. The output amplifiers deliver more than 90 mW into either high or low impedance headphones. The headphone output may be used to listen to different language translations.
The TP-BN14 may be powered from a 24 Vdc power supply, available separately, or from PoE. It is used in meeting halls, conference rooms or courtrooms.
Features:
Microphone to Network Section:
- Converts a Standard Mic Source to a Dante Network Channel
- Mute Button Toggles Output On and Off or Provides Momentary Muting
- Automatic Microphone Gain for Condenser or Dynamic Mics
- P48 Phantom is Provided on the Microphone Input
Network to Speaker Section:
- 2 Watt RMS Audio Amplifier
- Compressor/Limiter Prevents Clipping
- Speaker Audio Source may be a Dedicated Channel or Follow Headphones*
Network to Headphone Section:
- Selection from 3 or 4 Mono Dante Network Sources to a Stereo Headphone
- Single-Button Selection for Each Source with LED Indication
- Upper Button Selects "OFF" or Speaker Source*
- Front-Panel Output Level Control
Common:
- Adjustment and Switch Settings on the Chassis Bottom*
- High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
- Normal or Hot-Standby Operation from PoE
*set by installer
| TYPICAL PERFORMANCE | |
| Network Connector | RJ45 Ethercon style |
| Digital Audio Ethernet Protocol: | Dante |
| Transmission Rate: | 100 Mbps |
| Sample Rates Supported: | 44.1 kHz, 48 kHz (default) |
| Bit Depth Supported: | 24 bits |
| Audio Operating Levels: | -20 dBFS = +4 dBu |
| Mic Input to Network Interface Section | |
| Input: | Balanced, XLR |
| Gain: | Automatic; 40 dB for condenser mics, 60 dB for dynamic mics |
| Input Level for +4 dBu (-20 dBFS): | -56 dBu (dynamic), -36 dBu maximum; -36 dBu (condenser), -19 dBu maximum (unclipped), -14 dBu maximum (soft clipped) |
| Input Impedance: | > 1 k½ |
| Phantom Power: | P48, 48 Vdc |
| Standard for Phantom: | IEC 61938: 2013 |
| Frequency Response: | 20 Hz to 20 kHz (± 0.75 dB) flat; with low cut filter: -1.5 dB @ 100 Hz, -8 dB @ 80 Hz, -38 dB @ 50 Hz, -60 dB @ 20 Hz |
| THD+N: | < 0.1% |
| Noise below +4 dBu (-20 dBFS): | < -70 dB |
| CMRR: | > 70 dB (50 Hz to 120 Hz) |
| Muting: | Mute Button Toggles Mic On or Off |
| Network to Headphone Output Section | |
| Selectors (4): | Momentary pushbuttons (1 for each channel); Upper Button Selects "OFF" or Speaker Source, Set by Installer |
| Indicators (4): | Green LEDs, (indicates channel selected) |
| Level adjustment: | Single-turn front-panel rotary level control |
| Output: | Stereo mini jack, 90 mW per channel (into 100 ohms), Mono source |
| Frequency Response: | 20 Hz to 20 kHz (+0, -3 dB, into 100 Ohms) |
| THD+N: | < 0.2% (1 kHz, 10 mW) |
| Noise: | < -70 dB (below 10 mW with a -18 dBFS input) |
| Network to Speaker Output Section | |
| Output power: | 2 Watts RMS |
| Frequency Range: | 150 Hz to 20 kHz, nominal |
| Common | |
| Indicators (8): | Headphone channel selected (4); Mic muted, Network Sync, Ethernet Link and Speed (2) |
| Power Connections (2): | Power Jack; PoE |
| Ambient Operating Environment: | 0¡ C to 40¡ C |
| Power Requirement: | 24 Vdc @ 300 mA, or PoE |
| PoE: | Class 0, IEEE 802.3af |
| Dimensions: | 6.95" (17.7 cm) W; 2.85" (7.24 cm) H; 7" (17.8 cm) D |
| Package Type: | Cardboard Box |
| Package Dimensions: | 7 x 7 x 3 in. |
| Shipping Weight: | 3.26 lbs. |
| WEEE weight: | 2.97 lbs. |
| Tariff code: | 8543.70.9100 |
