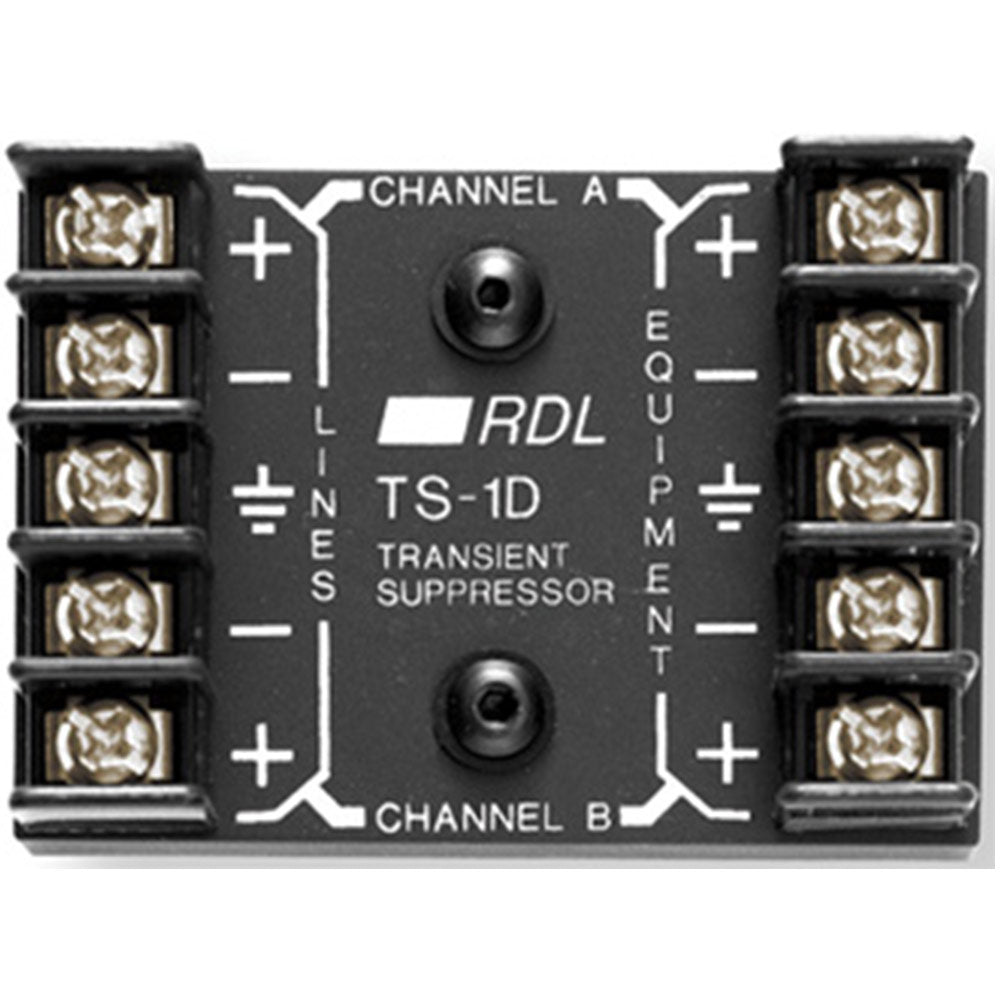

RDL TS-1D Transient Suppressor
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
RDL TS-1D Transient Suppressor
Sale price$152.41
Regular price$203.21
Description
The TS-1D is intended to protect audio input and output circuits from the effects of transients induced on the audio lines.
-
Features:
- Immunity from Electrostatic Discharge
- Immunity from Induced Transient Voltage
- Immunity from RF Interference
- Immunity from Electromagnetic Pulse
- CE Compliance
| AUDIO | |
| Frequency Response: | 10 Hz to 50 kHz (+/- 0.25 dB) |
| Insertion Loss: | <0.3 dB (into balanced bridging input) <1.0 dB (into 150 or 600 balanced< input) < 6 dB (600 balanced source into 600 load) |
| ELECTRICAL | |
| Number of Circuits: | 4, independent (for connection as 4 unbalanced or 2 balanced audio lines) |
| Equivalent Series Resistance, Input to Output: | 20 |
| Equivalent Circuit: | 300 kHz LP filter, 6 dB/octave, integral shunt high-voltage switch |
| Maximum Working Signal: | 30 Vp, 60 V p-p |
| HV Switch Clamp: | 24 V actuation 48 V maximum |
| Transient Energy: | 0.1 joule |
| PHYSICAL | |
| Case Material: | Electromagnetically inert plastic composition |
| Size: | 1.75 in. W x 2.5 in. L x 0.9 in. H (4.45 cm x 6.35 cm x 2.29 cm) (including terminal strip) |
| Ground Bus (integral): | 110 alloy copper, 0.25 W x 1.6 L (.64 cm x 4.1 cm) with 2 mounting holes, #6 (.37 cm) clearance, mounting hardware included |
| Input/Output Termination: | #6 (.35 cm) captive screw terminals |
| GB6 GROUND BAR | |
| Size: | 1.5 in. W x 11.87 in. L x .378 in. H (3.81 cm x 30.2 cm x .96 cm) |
| Material: | 110 Alloy Copper |
| EMC Suppression: | IEC 1000-4-2 levels 1 through 3 < 1 V IEC 1000-4-3 levels 1 through 3 < 1 V IEC 1000-4-4 levels 1 through 4 < 1 V |
| Ambient Operating Environment: | -10 degrees C to 55 degrees C |
The TS-1D is intended to protect audio input and output circuits from the effects of transients induced on the audio lines.
-
Features:
- Immunity from Electrostatic Discharge
- Immunity from Induced Transient Voltage
- Immunity from RF Interference
- Immunity from Electromagnetic Pulse
- CE Compliance
| AUDIO | |
| Frequency Response: | 10 Hz to 50 kHz (+/- 0.25 dB) |
| Insertion Loss: | <0.3 dB (into balanced bridging input) <1.0 dB (into 150 or 600 balanced< input) < 6 dB (600 balanced source into 600 load) |
| ELECTRICAL | |
| Number of Circuits: | 4, independent (for connection as 4 unbalanced or 2 balanced audio lines) |
| Equivalent Series Resistance, Input to Output: | 20 |
| Equivalent Circuit: | 300 kHz LP filter, 6 dB/octave, integral shunt high-voltage switch |
| Maximum Working Signal: | 30 Vp, 60 V p-p |
| HV Switch Clamp: | 24 V actuation 48 V maximum |
| Transient Energy: | 0.1 joule |
| PHYSICAL | |
| Case Material: | Electromagnetically inert plastic composition |
| Size: | 1.75 in. W x 2.5 in. L x 0.9 in. H (4.45 cm x 6.35 cm x 2.29 cm) (including terminal strip) |
| Ground Bus (integral): | 110 alloy copper, 0.25 W x 1.6 L (.64 cm x 4.1 cm) with 2 mounting holes, #6 (.37 cm) clearance, mounting hardware included |
| Input/Output Termination: | #6 (.35 cm) captive screw terminals |
| GB6 GROUND BAR | |
| Size: | 1.5 in. W x 11.87 in. L x .378 in. H (3.81 cm x 30.2 cm x .96 cm) |
| Material: | 110 Alloy Copper |
| EMC Suppression: | IEC 1000-4-2 levels 1 through 3 < 1 V IEC 1000-4-3 levels 1 through 3 < 1 V IEC 1000-4-4 levels 1 through 4 < 1 V |
| Ambient Operating Environment: | -10 degrees C to 55 degrees C |
