RDL TX-A2D Dual Audio Converter _ Balanced to Unbalanced -Terminals, dual-RCA
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
RDL TX-A2D Dual Audio Converter _ Balanced to Unbalanced -Terminals, dual-RCA
Sale price$150.85
Regular price$201.13
Description

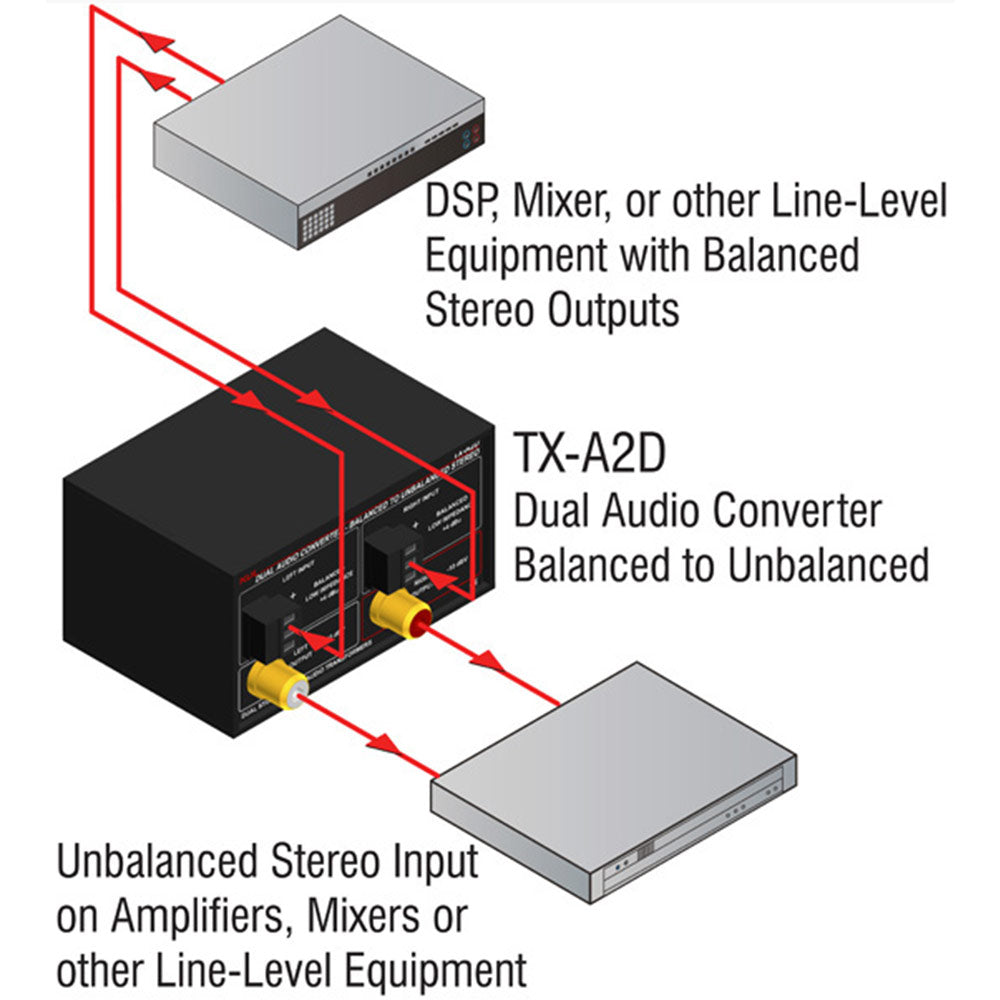

The D is the ideal choice in installations requiring passive isolation and level attenuation between a professional balanced line-level stereo source and consumer equipment unbalanced inputs.

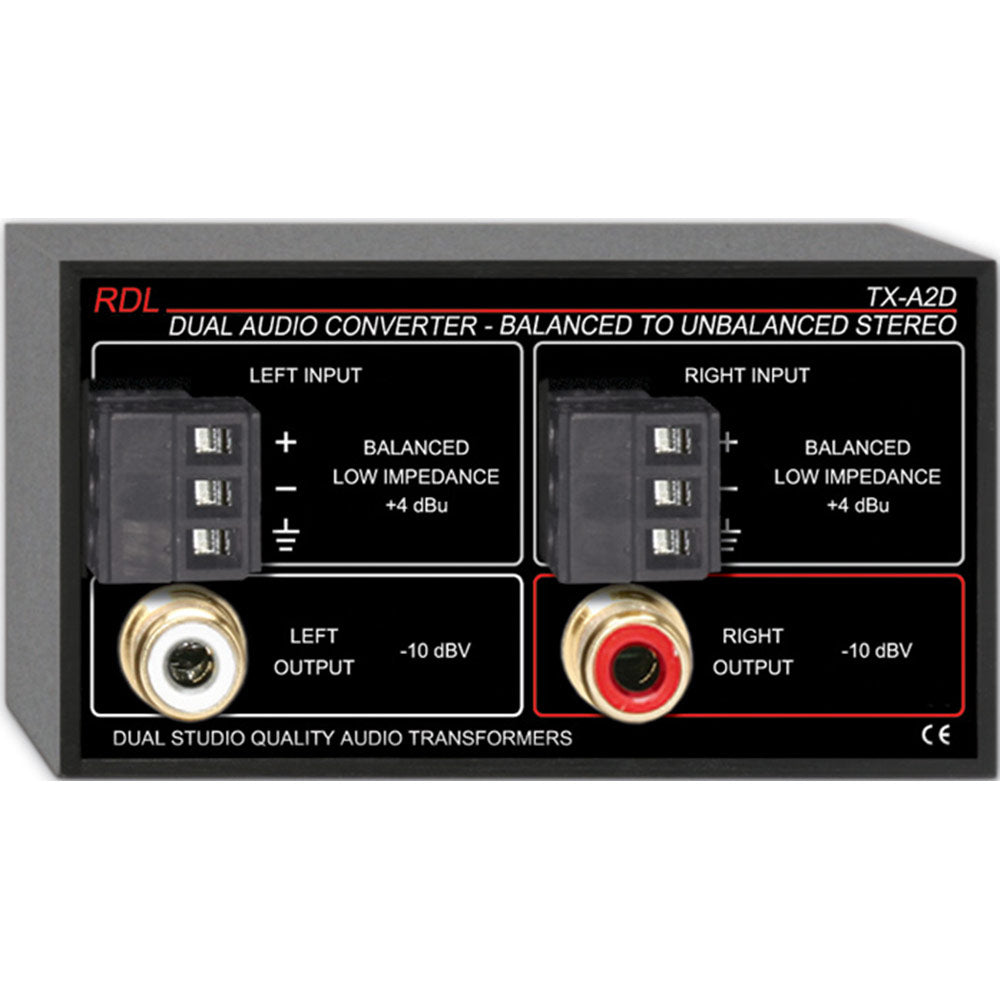

The D is a complete unbalanced stereo line-level audio output module. The front panel provides a detachable terminal block for connecting each channel of a balanced +4 dBu audio source. The input signals are coupled to two front-panel gold plated phono jacks through studio-quality isolation transformers. Each output is coupled through an attenuation network that produces a nominal -10 dBV level. Shielding is provided by the D™s heavy duty aluminum enclosure.Wherever professional format audio signals need to be converted to an unbalanced line level, the and D are an ideal choice. Use them individually or in conjunction with other RDL products as part of a complete audio/video system.-
Features:
- Unbalanced Audio Outputs from a Stereo Balanced Line
- Balanced to Unbalanced Conversion
- Stereo Input to Stereo Output
- +4 dBu Input Level to -10 dBV Output Level
- Studio-Quality Transformer Isolation
- Passive Converter with Output Jacks
| Input connector 2: | Detachable terminal block |
| Input level: | +4 dBu nominal +22 dBu max |
| Output connectors (2): | Gold plated phono jacks |
| Output level: | -10 dBV nominal |
| Frequency response (line level): | 20 Hz to 20 kHz (۪.5 dB) |
| Total Harmonic Distortion: | <0.05% (20 Hz to 20 kHz, +4 dBu input) <0.01% (1 kHz) |
| Crosstalk: | <-80 dB (20 to 20 kHz, ref. -10 dBV) <-90 dB (1 kHz) |

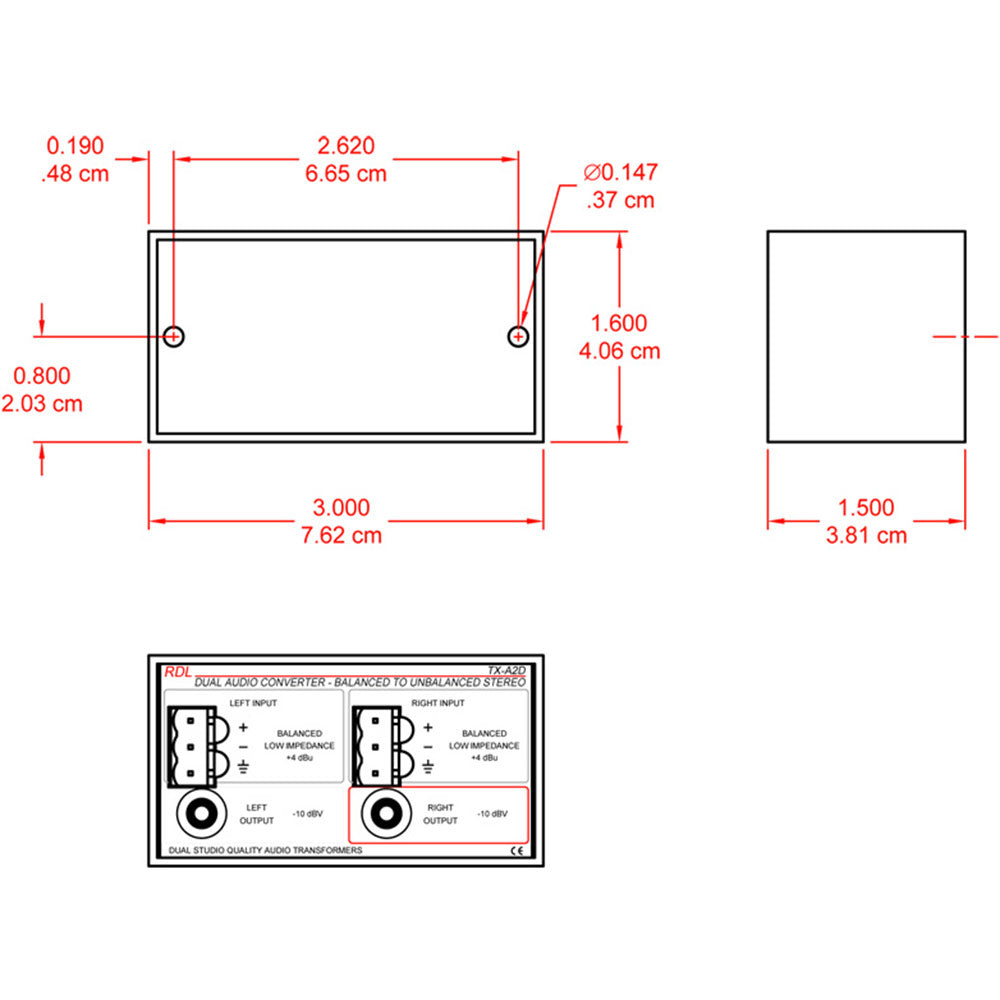

| Dimensions: | Height: 2.4 in. 6.1 cm Length: 3.0 in. 7.6 cm Width: 1.6 in. 4.04 cm |
The D is the ideal choice in installations requiring passive isolation and level attenuation between a professional balanced line-level stereo source and consumer equipment unbalanced inputs.
The D is a complete unbalanced stereo line-level audio output module. The front panel provides a detachable terminal block for connecting each channel of a balanced +4 dBu audio source. The input signals are coupled to two front-panel gold plated phono jacks through studio-quality isolation transformers. Each output is coupled through an attenuation network that produces a nominal -10 dBV level. Shielding is provided by the D™s heavy duty aluminum enclosure.Wherever professional format audio signals need to be converted to an unbalanced line level, the and D are an ideal choice. Use them individually or in conjunction with other RDL products as part of a complete audio/video system.-
Features:
- Unbalanced Audio Outputs from a Stereo Balanced Line
- Balanced to Unbalanced Conversion
- Stereo Input to Stereo Output
- +4 dBu Input Level to -10 dBV Output Level
- Studio-Quality Transformer Isolation
- Passive Converter with Output Jacks
| Input connector 2: | Detachable terminal block |
| Input level: | +4 dBu nominal +22 dBu max |
| Output connectors (2): | Gold plated phono jacks |
| Output level: | -10 dBV nominal |
| Frequency response (line level): | 20 Hz to 20 kHz (۪.5 dB) |
| Total Harmonic Distortion: | <0.05% (20 Hz to 20 kHz, +4 dBu input) <0.01% (1 kHz) |
| Crosstalk: | <-80 dB (20 to 20 kHz, ref. -10 dBV) <-90 dB (1 kHz) |
| Dimensions: | Height: 2.4 in. 6.1 cm Length: 3.0 in. 7.6 cm Width: 1.6 in. 4.04 cm |
