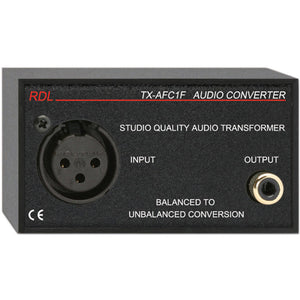

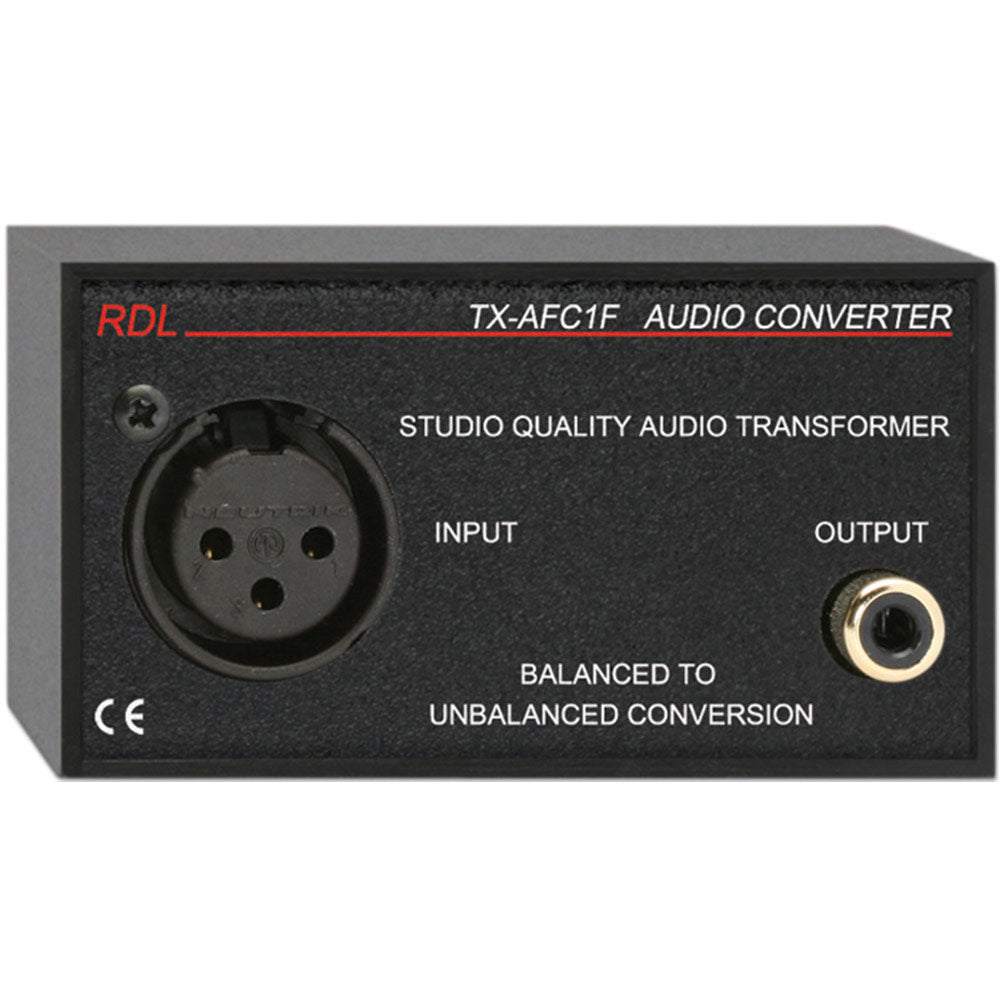

RDL TX-AFC1F Studio Quality Audio Format Converter - Balanced to Unbalanced Transformer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
RDL TX-AFC1F Studio Quality Audio Format Converter - Balanced to Unbalanced Transformer
Sale price$134.20
Regular price$178.94
Description
-
Features:
- Studio Quality Bifilar Audio Transformer
- Galvanic Isolation with the Convenience of RDL TXs
- Connectorized with Gold Contacts on Input and Output
- Balanced to Unbalanced Conversion
- Professional to Consumer Level Conversion
- Frequency Response: 20 Hz to 20 kHz (+/- 0.1 dB)
- THD: < 0.06% (50 Hz to 20 kHz, +4 dBu input)
0.0015% (Typ. 1 kHz, +4 dBu input) - Input: +4 dBu (+22 dBu max.), 10 k Bridging, XLR
- Output Level: -10 dBV, Phono jack
- CMRR: >85 dB (balanced input, 50 to 60 Hz)
| Ambient Operating Environment: | 0 degrees C to 55 degrees C |
-
Features:
- Studio Quality Bifilar Audio Transformer
- Galvanic Isolation with the Convenience of RDL TXs
- Connectorized with Gold Contacts on Input and Output
- Balanced to Unbalanced Conversion
- Professional to Consumer Level Conversion
- Frequency Response: 20 Hz to 20 kHz (+/- 0.1 dB)
- THD: < 0.06% (50 Hz to 20 kHz, +4 dBu input)
0.0015% (Typ. 1 kHz, +4 dBu input) - Input: +4 dBu (+22 dBu max.), 10 k Bridging, XLR
- Output Level: -10 dBV, Phono jack
- CMRR: >85 dB (balanced input, 50 to 60 Hz)
| Ambient Operating Environment: | 0 degrees C to 55 degrees C |
