RDL TX-TPR2A Active Two-Pair Receiver - Twisted Pair Format-A
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description

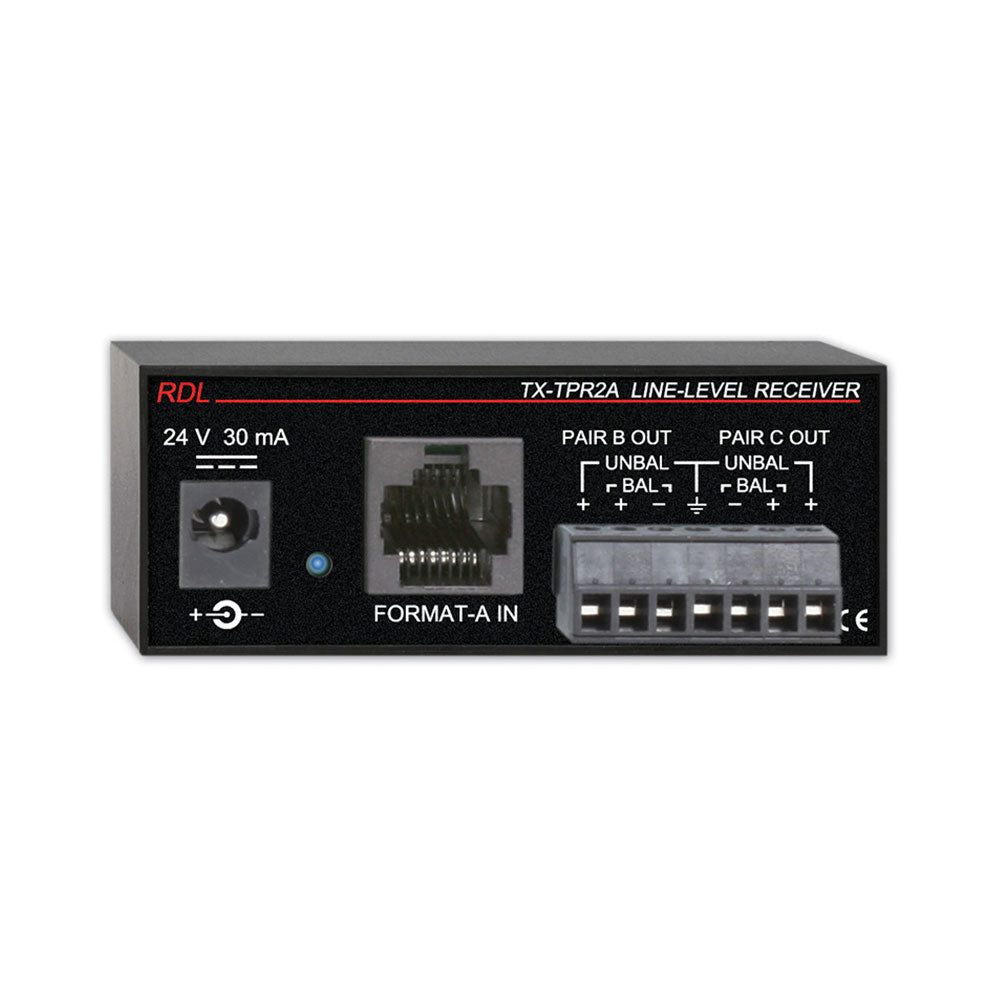

The TX-TPR2A is a two-pair audio receiving module compatible with RDL Format-A twisted pair products. Two outputs are provided corresponding to the two signal pairs B and C. The audio signal received on each pair of the RJ45 INPUT jack feeds the corresponding -10 dBV unbalanced output and the +4 dBu balanced output on the detachable terminal block. A studio-quality buffer amplifier feeds the outputs at the correct operating level.
The TX-TPR2A features bridging inputs, allowing it to be connected to the LOOP OUT jack of other receivers. The bridging input circuits used in all FORMAT-A twisted pair receivers allow connection of up to 10 receiver outputs for each cable pair. The possibility of multiple receiver locations adds enormous flexibility in the design of audio routing systems using RDL FORMAT-A products.
The TX-TPR2A may be powered directly from a 24 Vdc power supply. Local power connected to the module is also fed to all modules connected to the INPUT RJ45 jack. The TX-TPR2A may be remotely powered through the twisted pair cable from any other module, signal distributor or RDL power inserter connected to the same twisted pair cable. Module power is indicated by a front-panel LED.
Features:
- Two -10 dBV Unbalanced or +4 dBu Balanced Outputs
- Detachable Terminal Block Outputs
- Audio Outputs for Two Pairs (B and C)
- Powered Locally or Remotely through RJ45 Jack
- Local Power Feeds all Modules Connected to RJ45
- Wiring Fault Protection by Automatic Resetting Fuse
- Local Power Input on dc Power Jack
- Blue LED Indicates Module is Powered
- Studio-Quality Precision Active Balanced Circuitry
| Input | RDL TP Format-A |
| Input Connection | RJ45 |
| Format-A Signal Pairs Used (2) | B, C |
| Outputs (4) | 150 ? Balanced (2); 1 k? Unbalanced (2) |
| Output Connections | Detachable Terminal Block |
| Output Level | +4 dBu Bal., +22 dBu Max; -10 dBV Unbal., nominal |
| Frequency Response | 10 Hz to 30 kHz (+/- 0.1 dB) |
| THD+N | < 0.005% |
| Noise (below +4 dBu) | < -90 dB |
| Crosstalk | < -90 dB (1 kHz); < -75 dB (20 Hz to 20 kHz) |
| Headroom | > 20 dB (above +4 dBu) |
| CMRR | > 60 dB (50 Hz to 150 Hz) |
| Indicator | Power LED |
| Power Connections (2) | Power Jack; RJ45 |
| Power Requirement | 24 Vdc @ 30 mA |
| Dimensions | 3.0" (7.6 cm) W; 1.6" (4.08 cm) H; 1.2" (3.05 cm) D |
| Package Type | Cardboard Box |
| Package Dimensions | 2 x 2 x 4 in. |
| Shipping Weight | 0. 285 lbs. |
| WEEE weight | 0.232 lbs. |
| Tariff code | 8543.70.9960 |
