RDL TX-TPS6A Passive Single-Pair Sender - Twisted Pair Format-A - balanced line input


  • Dale #:

    RDL-TXTPS6A
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The TX-TPS6A is a single-pair audio sending module compatible with RDL Format-A twisted pair products. One low-impedance +4 dBu balanced line-level audio source connects to the module using the detachable terminal block. A studio-quality transformer provides isolation between the audio source and... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

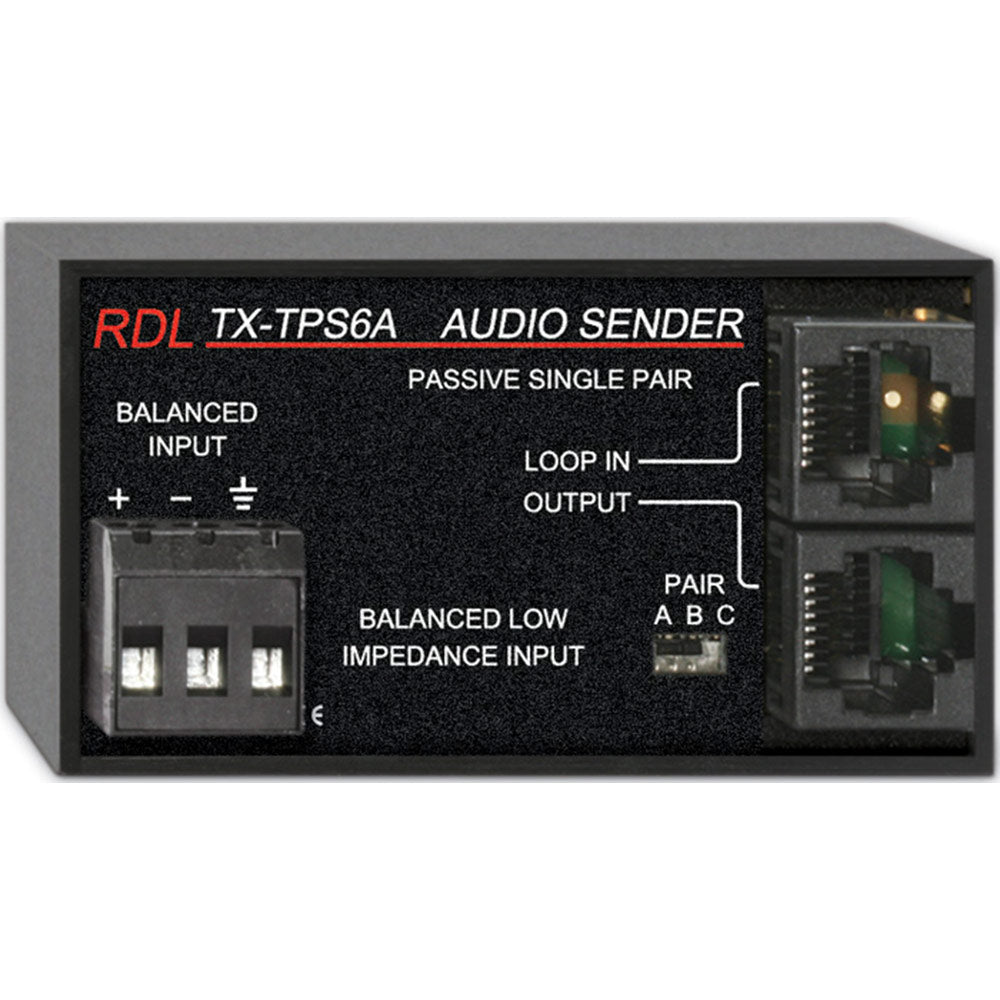

The TX-TPS6A is a single-pair audio sending module compatible with RDL Format-A twisted pair products. One low-impedance +4 dBu balanced line-level audio source connects to the module using the detachable terminal block. A studio-quality transformer provides isolation between the audio source and the RJ45 OUTPUT.

The TX-TPS6A is a single-pair sender, feeding the input signal to the cable pair set on the front-panel switch during installation. This module drives only one cable pair, therefore a LOOP IN RJ45 jack is provided to accept signals and power from other mic-level or line-level Format-A senders. Two other single-pair senders may be chained to the LOOP IN jack, or a single two-pair sender may be connected. If three single-pair senders are connected together, each sender must feed a different pair: A, B or C. The TX-TPS6A must be set to feed pair A if it is connected together with an RDL two-pair sender that feeds stereo audio on pairs B and C.The TX-TPS6A is a passive module that does not require power to operate. If power is present on a cable connected to the LOOP IN jack, that power is passed through to the modules connected to the OUTPUT jack.
    Features:
  • Single +4 dBu Low-Impedance Balanced Audio Input
  • Input on Detachable Terminal Block
  • Switch Selects which RJ45 Pair (A, B or C) is Fed
  • Signal and Power Pair Pass-Through from LOOP IN Jack
  • Passive Circuitry Does Not Require Power
  • Galvanic Isolation through a Studio-Quality Transformer
  • Daisy-Chain with Single-Pair or Two-Pair Format-A Senders

More +

Product Specs

Input:Low-impedance Balanced
Recommended source impedance < 150
Input Connection:Detachable Terminal Block (Balanced)
Input Level:+4 dBu balanced +22 dBu Max
Format-A Signal Pair Used:Switch-selectable A, B, or C
Format-A Input:RJ45 LOOP IN
Output:RDL TP Format-A
Output Connection:RJ45
Frequency Response:20 Hz to 20 kHz (+/- 0.1 dB)
THD+N:< 0.035% (50 Hz to 20 kHz, +4 dBu)
< 0.1% (20 Hz to 20 kHz, +4 dBu)
Headroom above +4 dBu:> 18 dB
CMRR:> 85 dB (50 Hz to 150 Hz)
Power Requirement:Passive

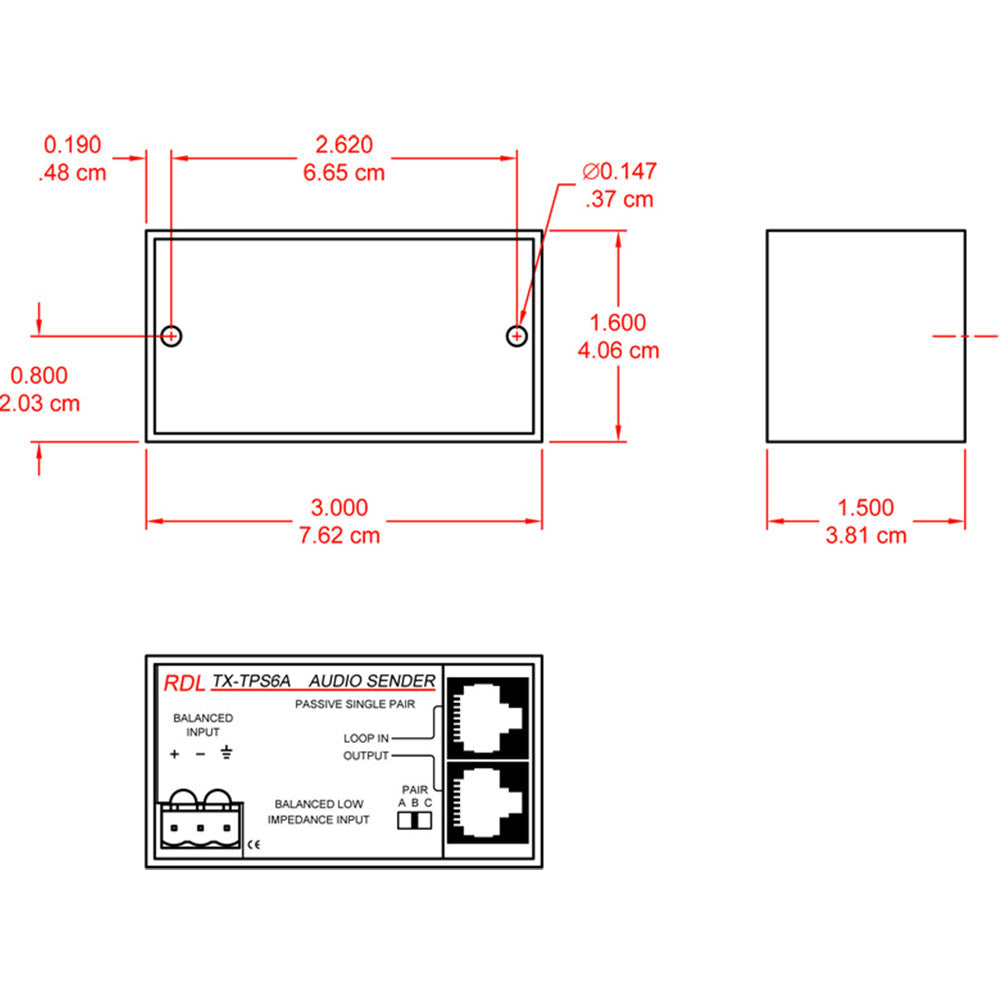

Dimensions:3.0 (7.6 cm) W 1.6 (4.08 cm) H 2.09 (5.3 cm) D
Ambient Operating Environment:0 degrees C to 50 degrees C

More +
