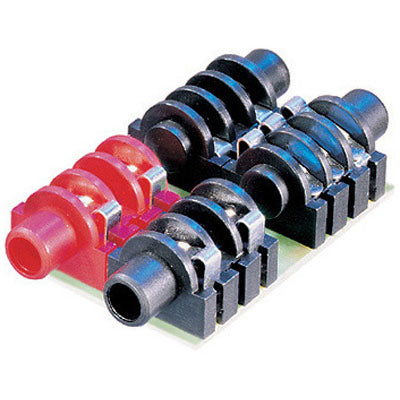

REAN NYS-SPCR Module with Switching Contacts for NYS-SPP-L Patchbay
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
REAN NYS-SPCR Module with Switching Contacts for NYS-SPP-L Patchbay
Sale price$3.33
Regular price$3.72
Description
Module with switching contacts for NYS-SPP-L. Solution for insert jack of mixing consoles, Split print by-passes the use of a special wired Y-Cable
| Connector Type | Patch Panel |
| Electrical | |
| Signal Type | AES/EBU Signals (digital) |
| Contact resistance | < 10 m |
| Dielectric strength | 1 kVdc |
| Frequencyrange | DC to> 50 MHz |
| Insulation resistance | > 1 G @ 500 V dc |
| Channel separation | > 100 dB @ 10 kHz, 600 terminated > 40 dB @ 6 MHz, 110 terminated |
| Handles Phantom Power | Yes |
| Mechanical | |
| Insertion force | < 20 N |
| Withdrawal force | > 10 N |
| Lifetime | > 10000 mating cycles |
| Locking device | Retention spring |
| Material | |
| Contacts | Bronze, tin plated (Jacks) |
| Contacts | Bronze, tin plated (Switch contacts) |
| Shell | ABS (Jacks) |
| Environmental | |
| Temperature range | -30 ¡C to +80 ¡C |
| Mobile Cables | |
| Mating plug | A-Gauge 1/4'' plug acc. EIA RS-453 |
| Channels | Send / Return module (Split Print) |
Module with switching contacts for NYS-SPP-L. Solution for insert jack of mixing consoles, Split print by-passes the use of a special wired Y-Cable
| Connector Type | Patch Panel |
| Electrical | |
| Signal Type | AES/EBU Signals (digital) |
| Contact resistance | < 10 m |
| Dielectric strength | 1 kVdc |
| Frequencyrange | DC to> 50 MHz |
| Insulation resistance | > 1 G @ 500 V dc |
| Channel separation | > 100 dB @ 10 kHz, 600 terminated > 40 dB @ 6 MHz, 110 terminated |
| Handles Phantom Power | Yes |
| Mechanical | |
| Insertion force | < 20 N |
| Withdrawal force | > 10 N |
| Lifetime | > 10000 mating cycles |
| Locking device | Retention spring |
| Material | |
| Contacts | Bronze, tin plated (Jacks) |
| Contacts | Bronze, tin plated (Switch contacts) |
| Shell | ABS (Jacks) |
| Environmental | |
| Temperature range | -30 ¡C to +80 ¡C |
| Mobile Cables | |
| Mating plug | A-Gauge 1/4'' plug acc. EIA RS-453 |
| Channels | Send / Return module (Split Print) |
