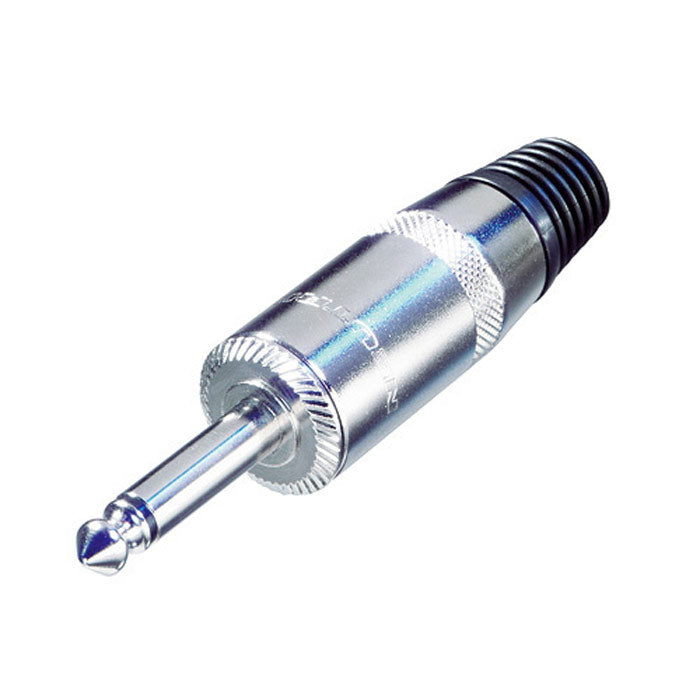

REAN NYS225 1/4" Male Phone Connector Shielded
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
REAN NYS225 1/4" Male Phone Connector Shielded
Sale price$2.17
Regular price$3.63
Description
1/4" plug, 2-pole, with large shell for speaker cable. Large metal handle, rubber bushing.
| Electrical | |
| Contact resistance | < 10ÊmΩ |
| Dielectric strength | 0,5ÊkVdc |
| Rated current per contact | depends on mated connectorÊA |
| Mechanical | |
| Cable O.D. | ≤ 8Êmm |
| Wire size | 12ÊAWG |
| Material | |
| Contact plating | 2 µm Ni |
| Contacts | CuZn39Pb3 |
| Insert | PA66 30%GR+insulation board |
| Shell | ZnAl4Cu1, gal 2 µm Ni plated |
| Environmental | |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -20 ¡C to +70Ê¡C |
1/4" plug, 2-pole, with large shell for speaker cable. Large metal handle, rubber bushing.
| Electrical | |
| Contact resistance | < 10ÊmΩ |
| Dielectric strength | 0,5ÊkVdc |
| Rated current per contact | depends on mated connectorÊA |
| Mechanical | |
| Cable O.D. | ≤ 8Êmm |
| Wire size | 12ÊAWG |
| Material | |
| Contact plating | 2 µm Ni |
| Contacts | CuZn39Pb3 |
| Insert | PA66 30%GR+insulation board |
| Shell | ZnAl4Cu1, gal 2 µm Ni plated |
| Environmental | |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -20 ¡C to +70Ê¡C |
