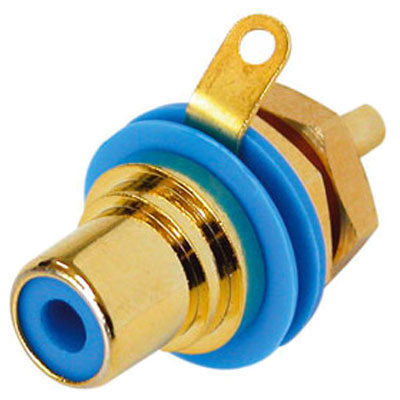

REAN NYS367-6 Jack RCA - Panel - Gold - Blue
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
REAN NYS367-6 Jack RCA - Panel - Gold - Blue
Sale price$1.83
Regular price$3.05
Description
Phono chassis mount socket, gold plated contacts, color coding.
| Electrical | |
| Contact resistance | <10 mohm |
| Dielectric strength | 0,5 kVdc |
| Rated current per contact | 1 A |
| Mechanical | |
| Lifetime | 5000 mating cycles |
| Panel thickness | 3mm |
| Material | |
| Contact plating | 0.2 m Au |
| Contacts | CuZn39Pb3 |
| Insert | PA 6 30 % GR |
| Shell | CuZn39Pb3 0.2 m Au plated |
| Environmental | |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -20 ¡C to +70 ¡C |
Phono chassis mount socket, gold plated contacts, color coding.
| Electrical | |
| Contact resistance | <10 mohm |
| Dielectric strength | 0,5 kVdc |
| Rated current per contact | 1 A |
| Mechanical | |
| Lifetime | 5000 mating cycles |
| Panel thickness | 3mm |
| Material | |
| Contact plating | 0.2 m Au |
| Contacts | CuZn39Pb3 |
| Insert | PA 6 30 % GR |
| Shell | CuZn39Pb3 0.2 m Au plated |
| Environmental | |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -20 ¡C to +70 ¡C |
