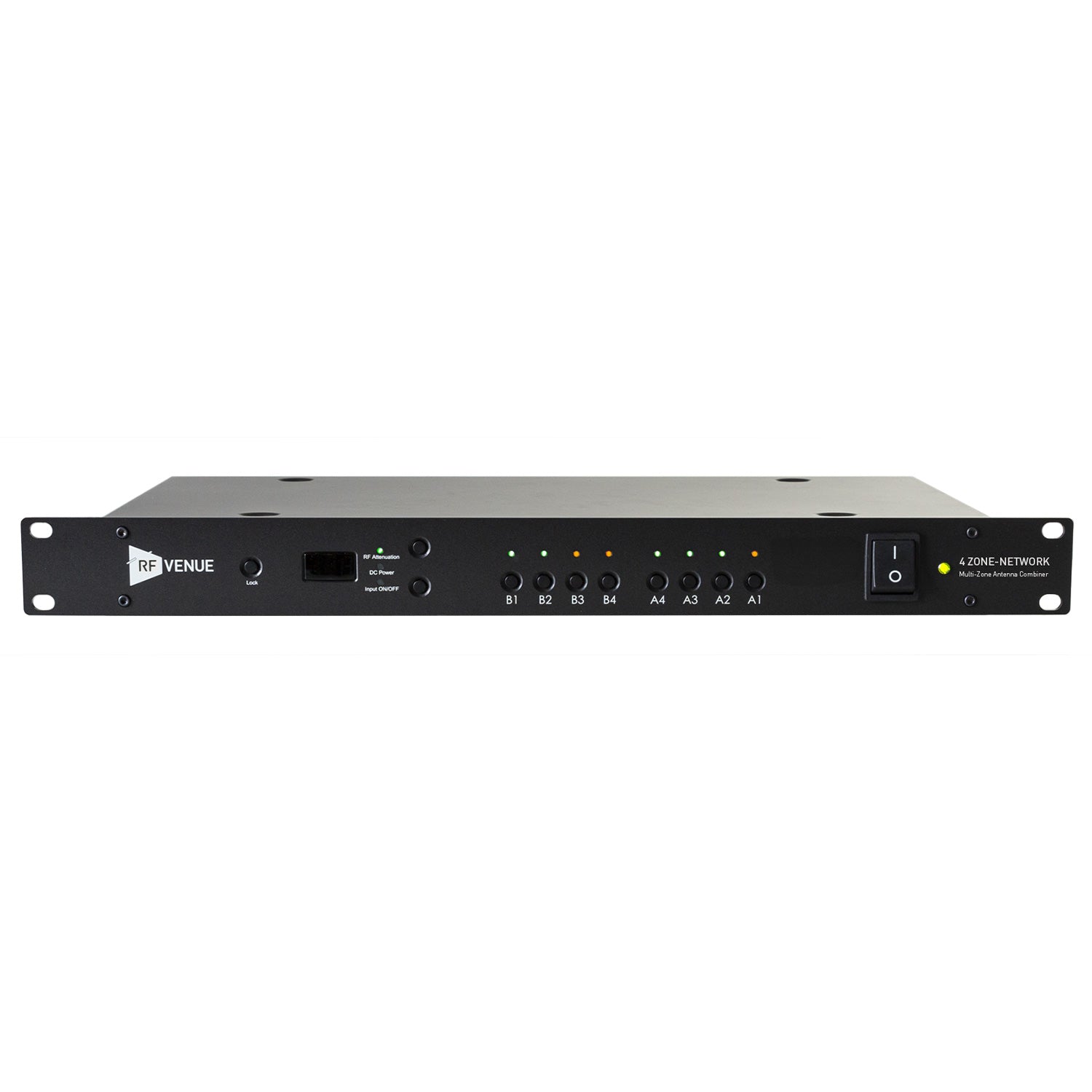

RF Venue 4ZONE-NETWORK - Multi-Zone Antenna Combiner with LAN Port
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The 4 ZONE active antenna combiner takes the complexity and expense out of multi-zone wireless microphone projects. The 4 ZONE combines up to four separate pairs of diversity antenna connections for multi-purpose rooms, indoor-outdoor configurations, or main stages with secondary breakout rooms. Expand your wireless microphone system's reach at an affordable price.
With the 4 ZONE-Network, you can remotely check zone status, toggle zones on/off individually, and adjust settings without needing physical access to the unit. Ideal for pre-event checks and dynamic management during performances. Save and recall presets for frequently used configurations.
Single Rack Space
A unique one rack space design allows microphones to operate in up to four separate coverage areas.
Keeps You Covered
Seamlessly cover wireless microphones between building locations or indoor and outdoor areas. User configurable to allow which zones are active.
Configured As needed
4 Zone-Network adds: LAN-based control to remotely check zone status, toggle zones on/off individually, and adjust settings without needing physical access to the unit.
| In The Box | (1) 4 Zone Antenna Combiner (2) 15cm / 6” BNC jumpers (1) AC power cord |
| Carrier frequency range | 470-960MHz |
| Full system gain | 3dB(±3dB) |
| Input/Output impedance | 50 Ω |
| A/B antenna input | 4+4 OIP3: -35dBm(typ.) @ 2-tone; Pi=-15dBm/tone |
| RF input attenuation | -31-0dB (step:1dB) |
| Input/Output connectors | BNC(F) |
| Input | 8x |
| Output | 2x |
| Functions | 1. DC Power (for In-Line Amplier) ON/OFF Control 2. RF Input Attenuation Control 3. RF Input Signal ON/ OFF Control |
| DC over coax (to external antennas) | 12V/200mA*8 |
| Power supply | 100-240VAC; MAX 2A 50/60HZ |
| Dimensions | 480(W) X 45(H) X 250(D) mm / 19(W) X 2(H) X 10(D) in |
| Weight | 2.5Kg / 5.5lbs |
The 4 ZONE active antenna combiner takes the complexity and expense out of multi-zone wireless microphone projects. The 4 ZONE combines up to four separate pairs of diversity antenna connections for multi-purpose rooms, indoor-outdoor configurations, or main stages with secondary breakout rooms. Expand your wireless microphone system's reach at an affordable price.
With the 4 ZONE-Network, you can remotely check zone status, toggle zones on/off individually, and adjust settings without needing physical access to the unit. Ideal for pre-event checks and dynamic management during performances. Save and recall presets for frequently used configurations.
Single Rack Space
A unique one rack space design allows microphones to operate in up to four separate coverage areas.
Keeps You Covered
Seamlessly cover wireless microphones between building locations or indoor and outdoor areas. User configurable to allow which zones are active.
Configured As needed
4 Zone-Network adds: LAN-based control to remotely check zone status, toggle zones on/off individually, and adjust settings without needing physical access to the unit.
| In The Box | (1) 4 Zone Antenna Combiner (2) 15cm / 6” BNC jumpers (1) AC power cord |
| Carrier frequency range | 470-960MHz |
| Full system gain | 3dB(±3dB) |
| Input/Output impedance | 50 Ω |
| A/B antenna input | 4+4 OIP3: -35dBm(typ.) @ 2-tone; Pi=-15dBm/tone |
| RF input attenuation | -31-0dB (step:1dB) |
| Input/Output connectors | BNC(F) |
| Input | 8x |
| Output | 2x |
| Functions | 1. DC Power (for In-Line Amplier) ON/OFF Control 2. RF Input Attenuation Control 3. RF Input Signal ON/ OFF Control |
| DC over coax (to external antennas) | 12V/200mA*8 |
| Power supply | 100-240VAC; MAX 2A 50/60HZ |
| Dimensions | 480(W) X 45(H) X 250(D) mm / 19(W) X 2(H) X 10(D) in |
| Weight | 2.5Kg / 5.5lbs |
