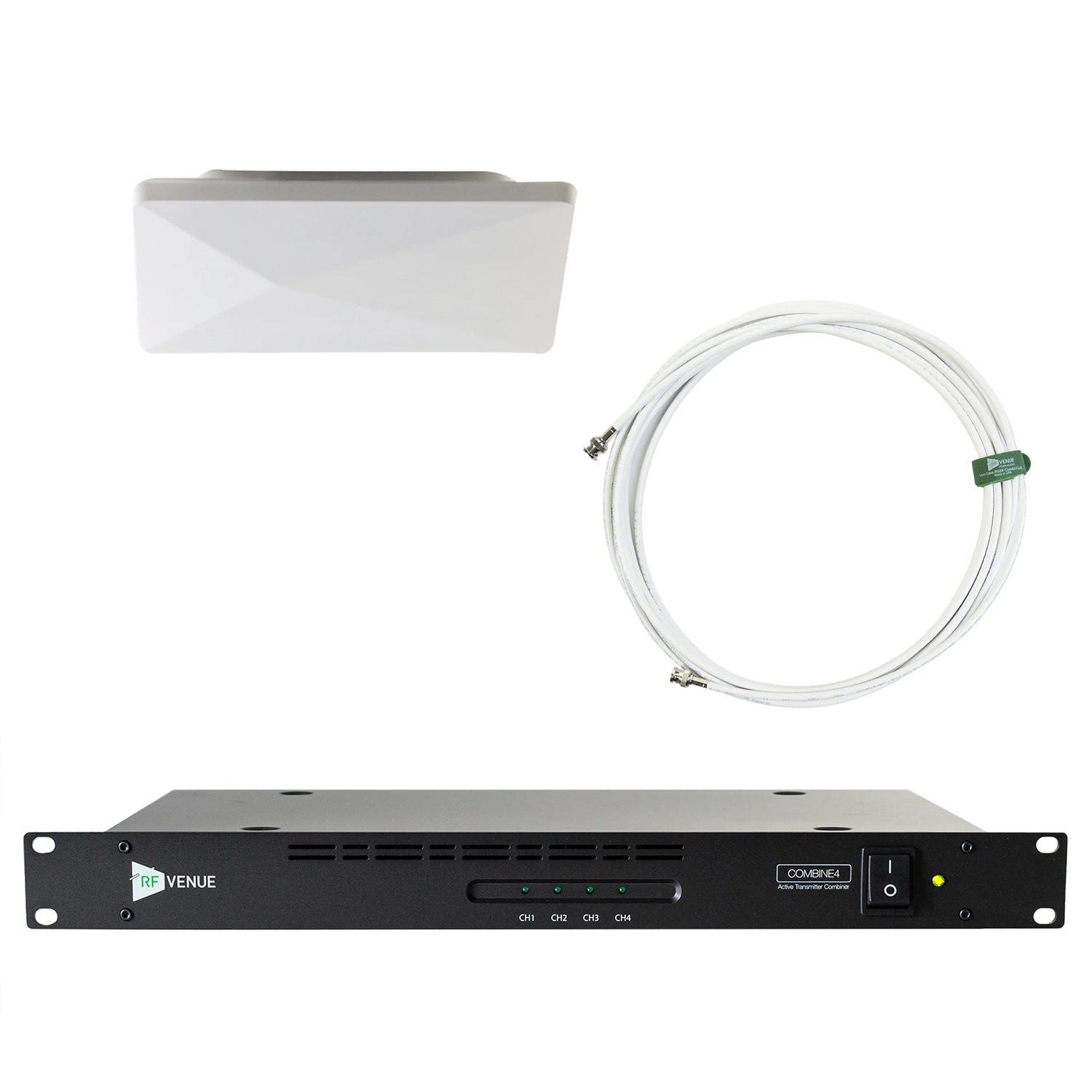

RF Venue COMB4CP-ARC - CP Architectural Antenna and COMBINE4 Combo

The CP Architectural Antenna by RF Venue is a high performance antenna for installed in-ear monitor systems (IEMs). Featuring a slim profile enclosure, the CP Architectural Antenna can be installed on a wall or ceiling and can be painted to match any interior. Unlike LPDA or paddle antennas with a fixed polarization, the CP Architectural Antenna uses a unique circularly polarized design to provide excellent transmit signal coverage for IEMs with a highly polished and professional look that room designers and architects appreciate.

The CP Architectural antenna installs in minutes, with a wall or ceiling-mounted rear plate that is pre-drilled with multiple mounting hole options. The rear plate then simply connects to the front plate, secured with the included mounting screws. Simply connect the rear-mounted BNC terminated coaxial cable to your in-wall or in-ceiling coaxial cable run and the CP Architectural is ready for use.

The CP Architectural antenna builds on the highly acclaimed foldable CP helical antenna, eliminating the most common signal dropouts while reducing noise and interference. Ideally suited for houses of worship and other installed IEM venues, the CP Architectural Antenna fits any interior design and delivers professional RF performance in the same sleek industrially designed enclosure as the popular Diversity Architectural Antenna for wireless microphones.

The COMBINE4 IEM transmitter combiner brings together up to four in-ear monitor transmitter signals into a single front panel mounted antenna connector. Any brand IEM may be used, as well as any type of directional antenna. It also provides DC power to up to four IEM transmitters to reduce cable clutter and wallwarts. IEM transmitter combination is important for multi-channel systems to minimize intermodulation products arising from multiple adjacent antennas interfering with one another. COMBINE4 has a maximum input power of 100mW. Bundle includes a 25 foot white RG8X coaxial cable.

• Blends into any background
• Doesn't Drop Out
• Key Features Image
• Designed specifically for IEMs
• Circularly polarized performance in a sleek package
