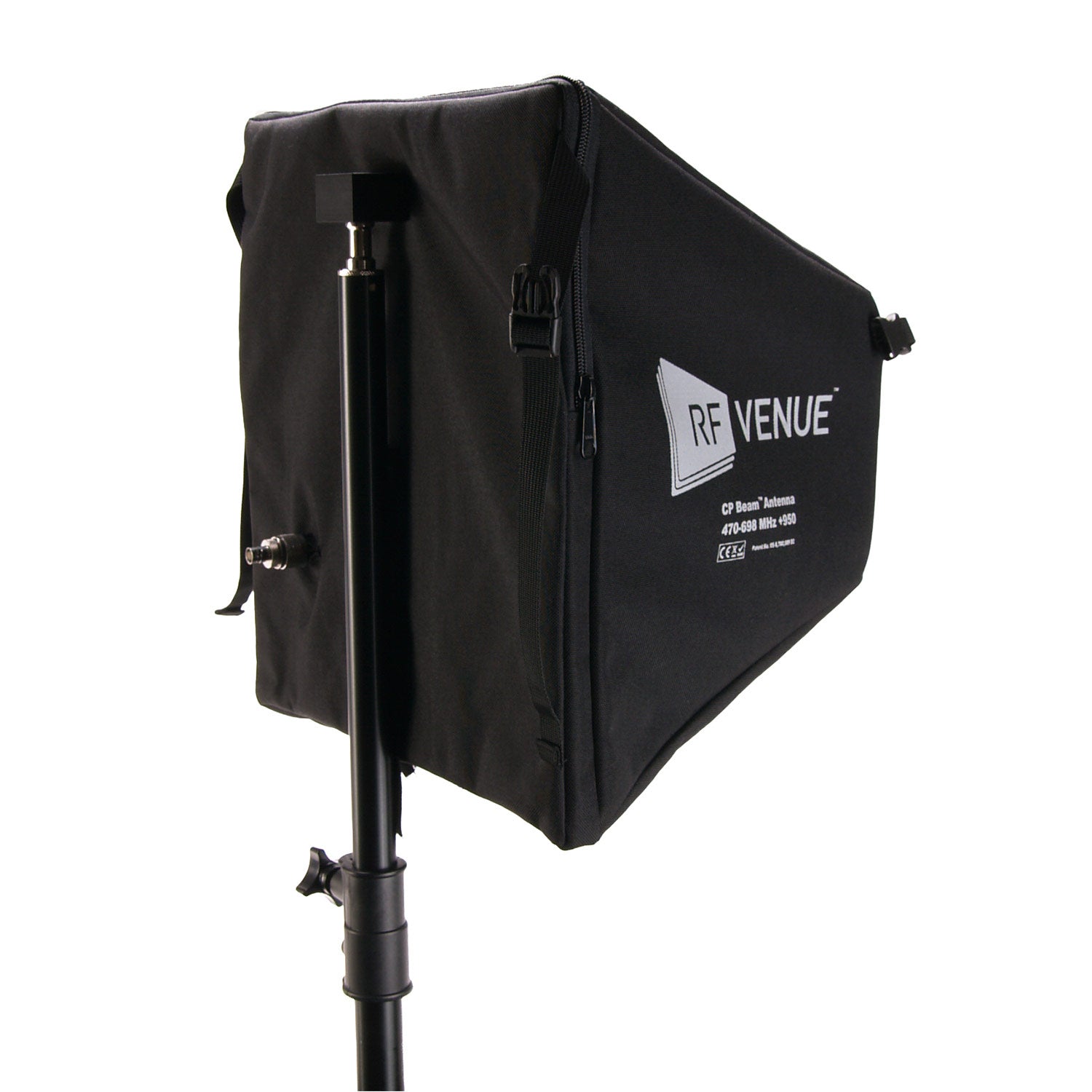

RF Venue COMB4CPB 4-Channel In-Ear Monitor Distribution System
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description

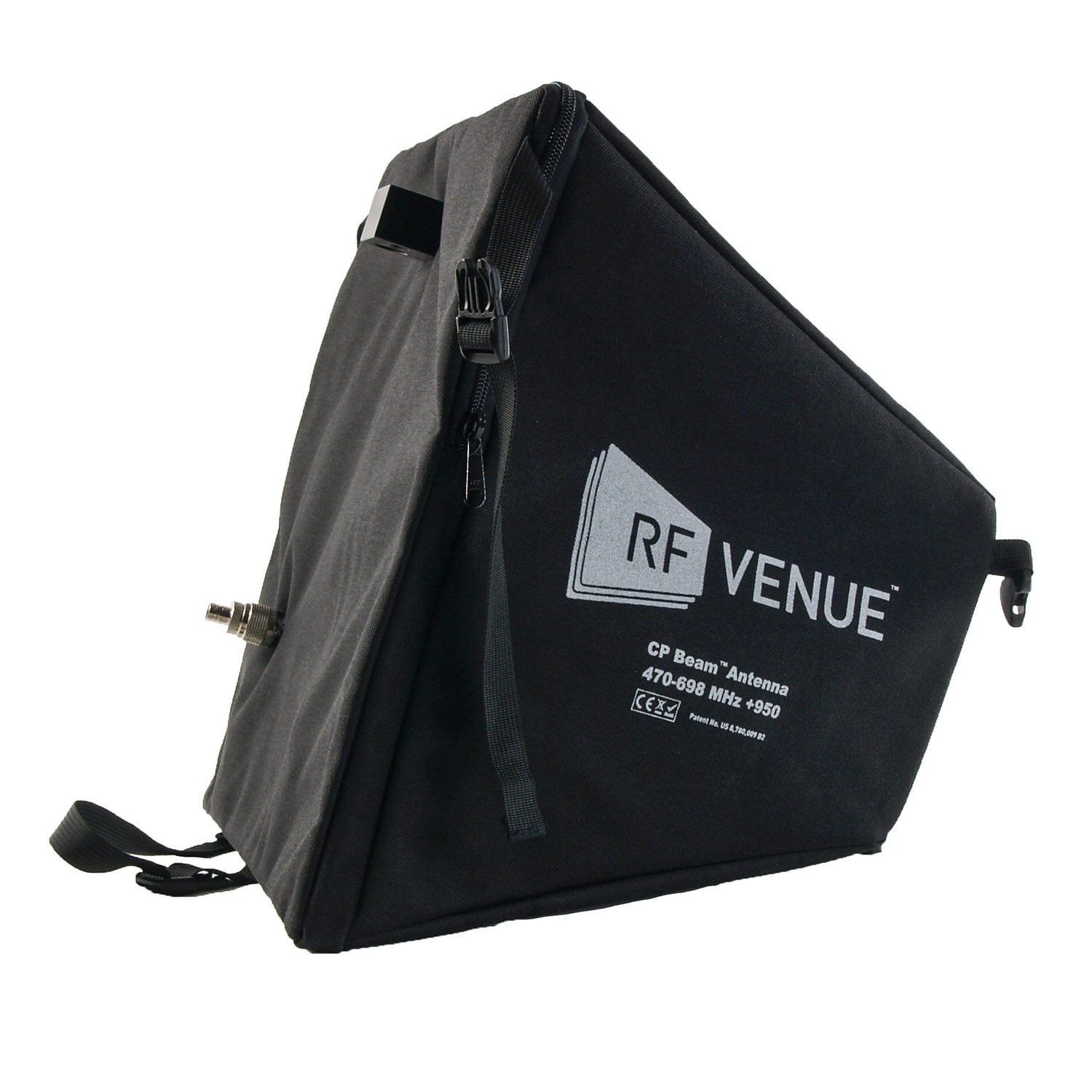

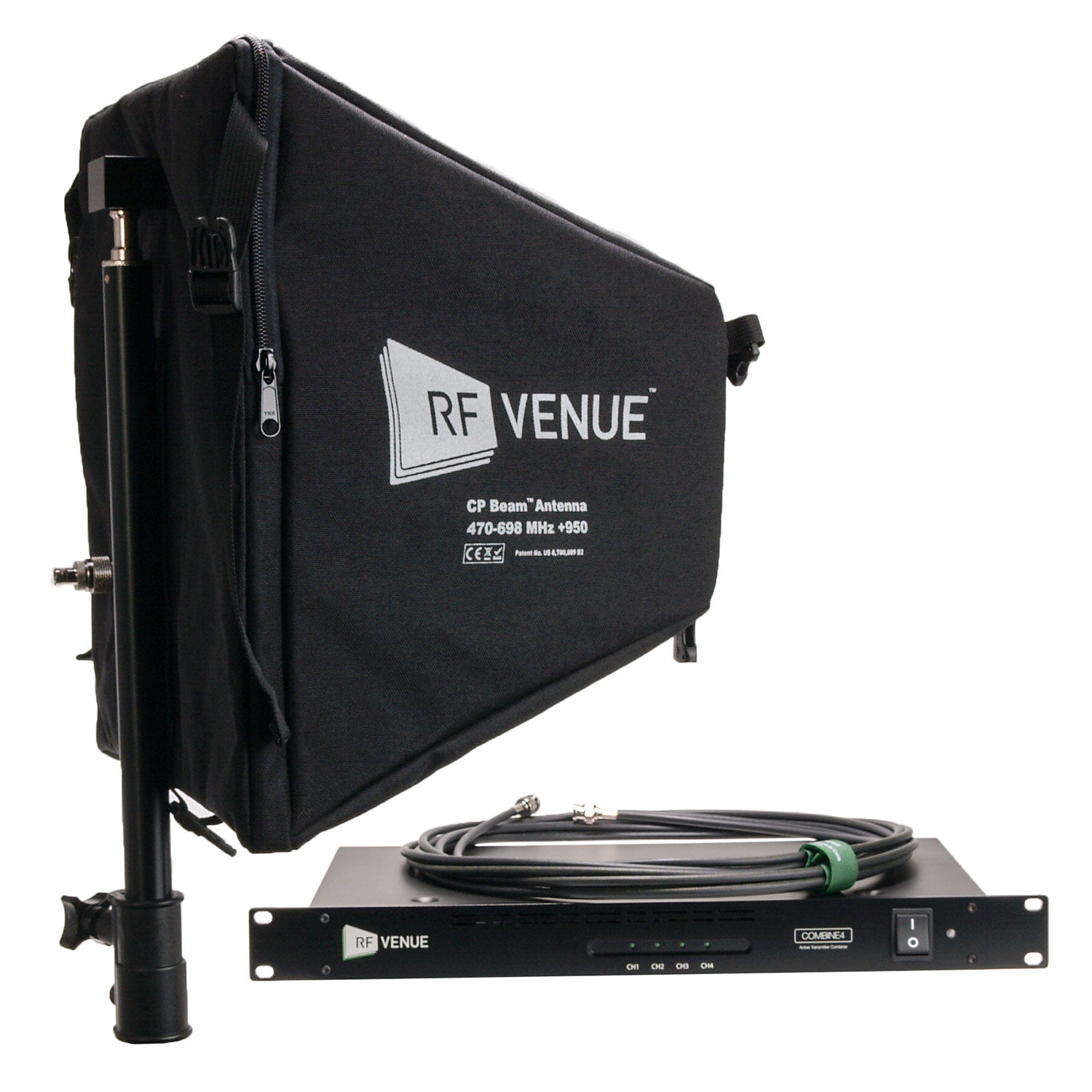

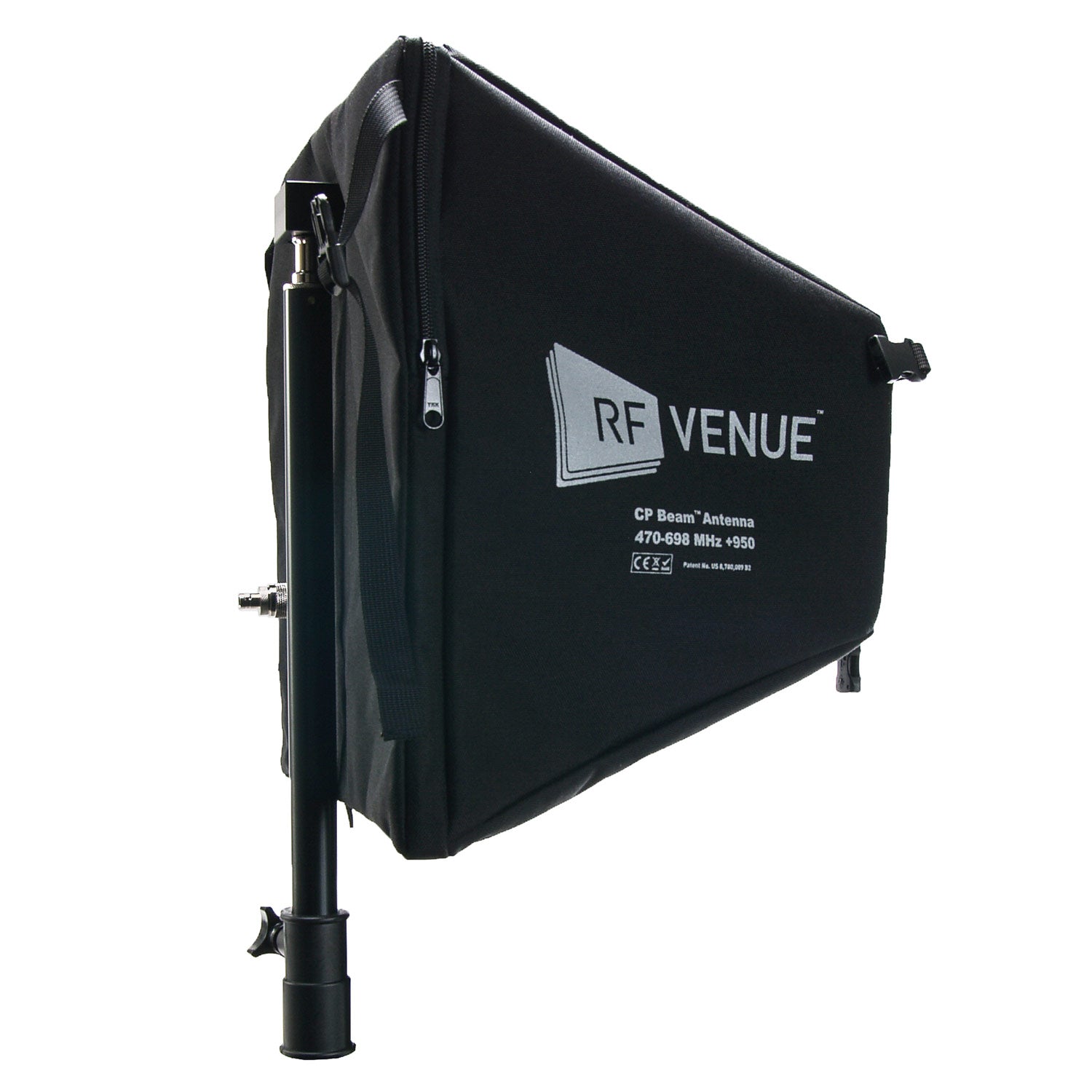

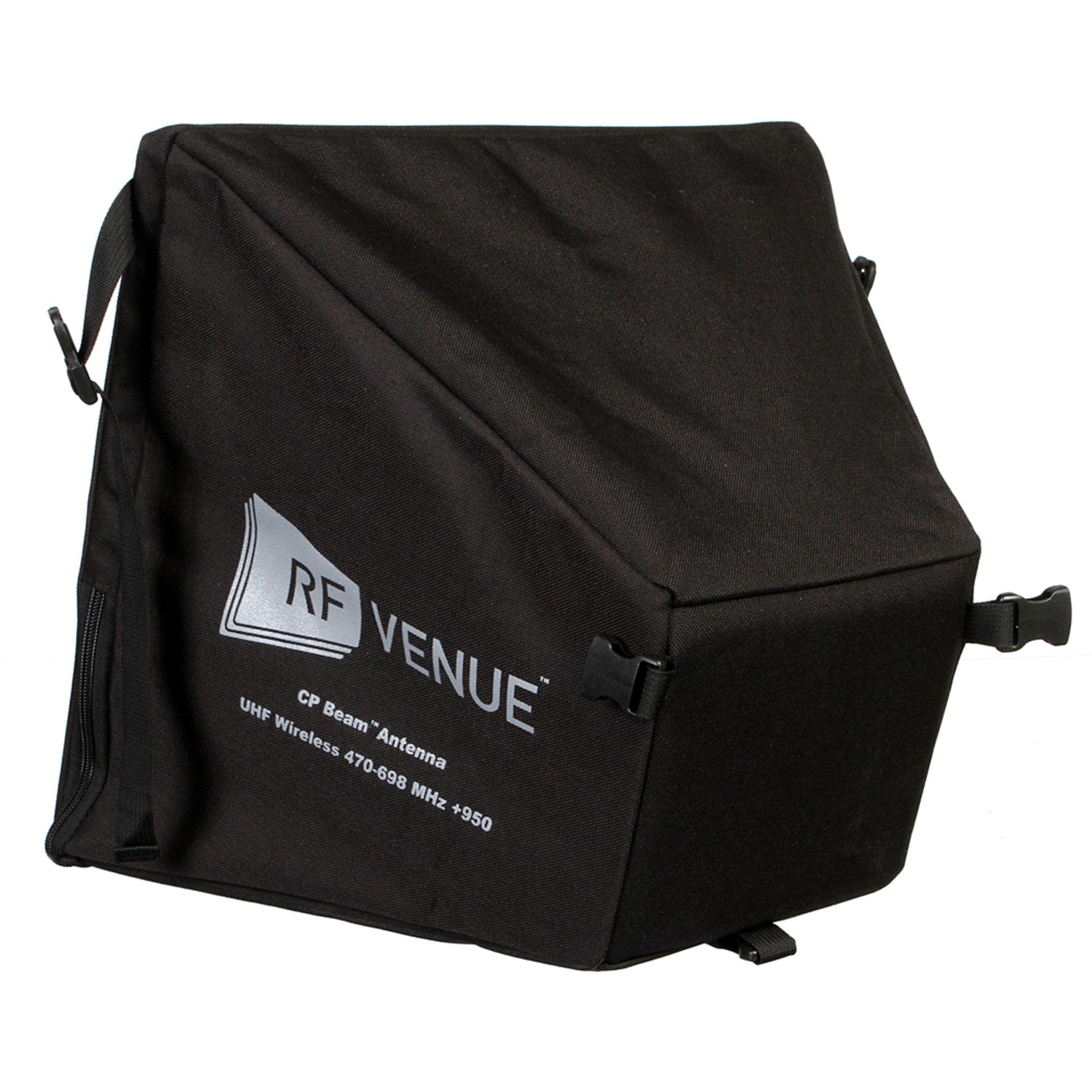

4 channel IEM transmitter combiner + CP Beam antenna + (1) 25’ RG8X coaxial cable.

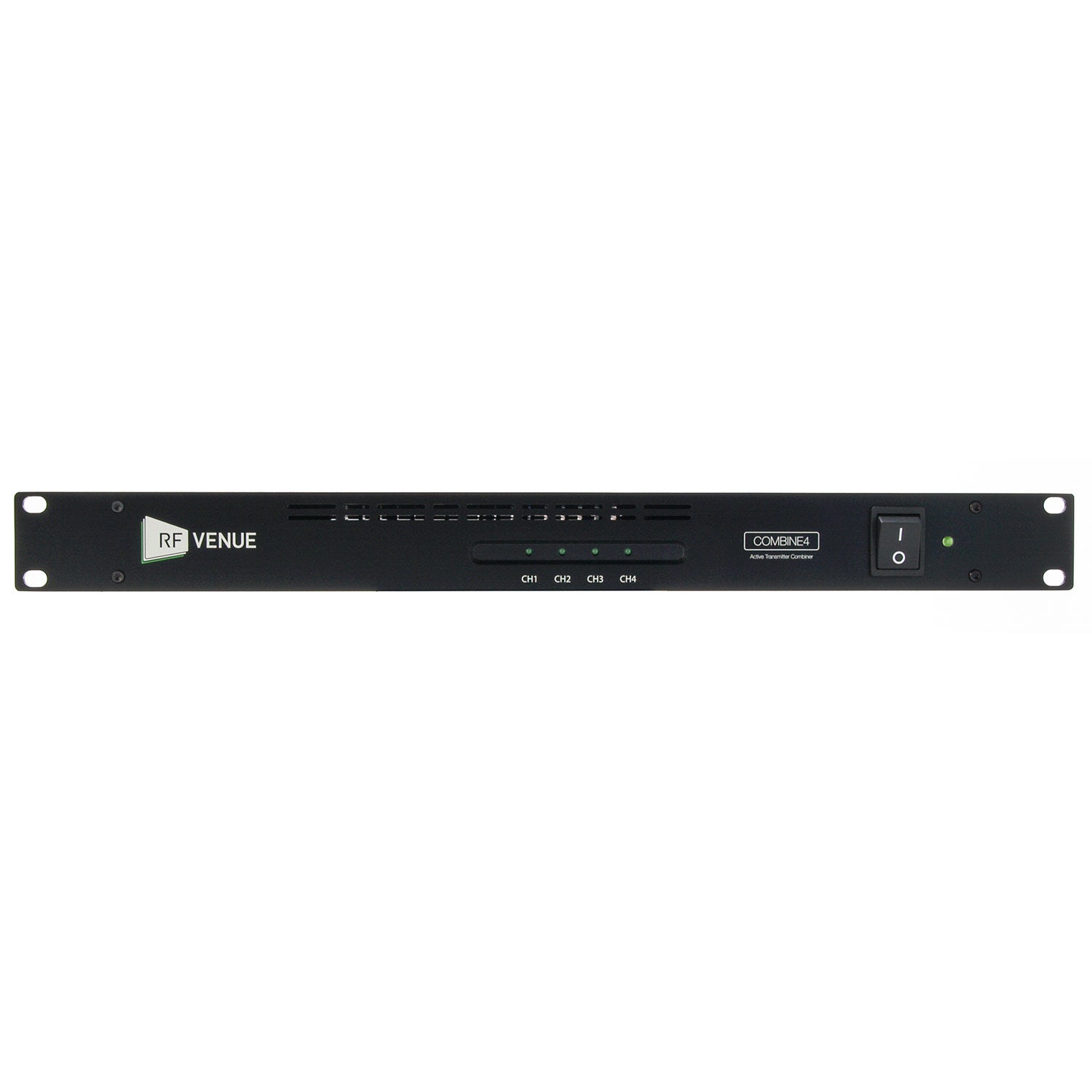

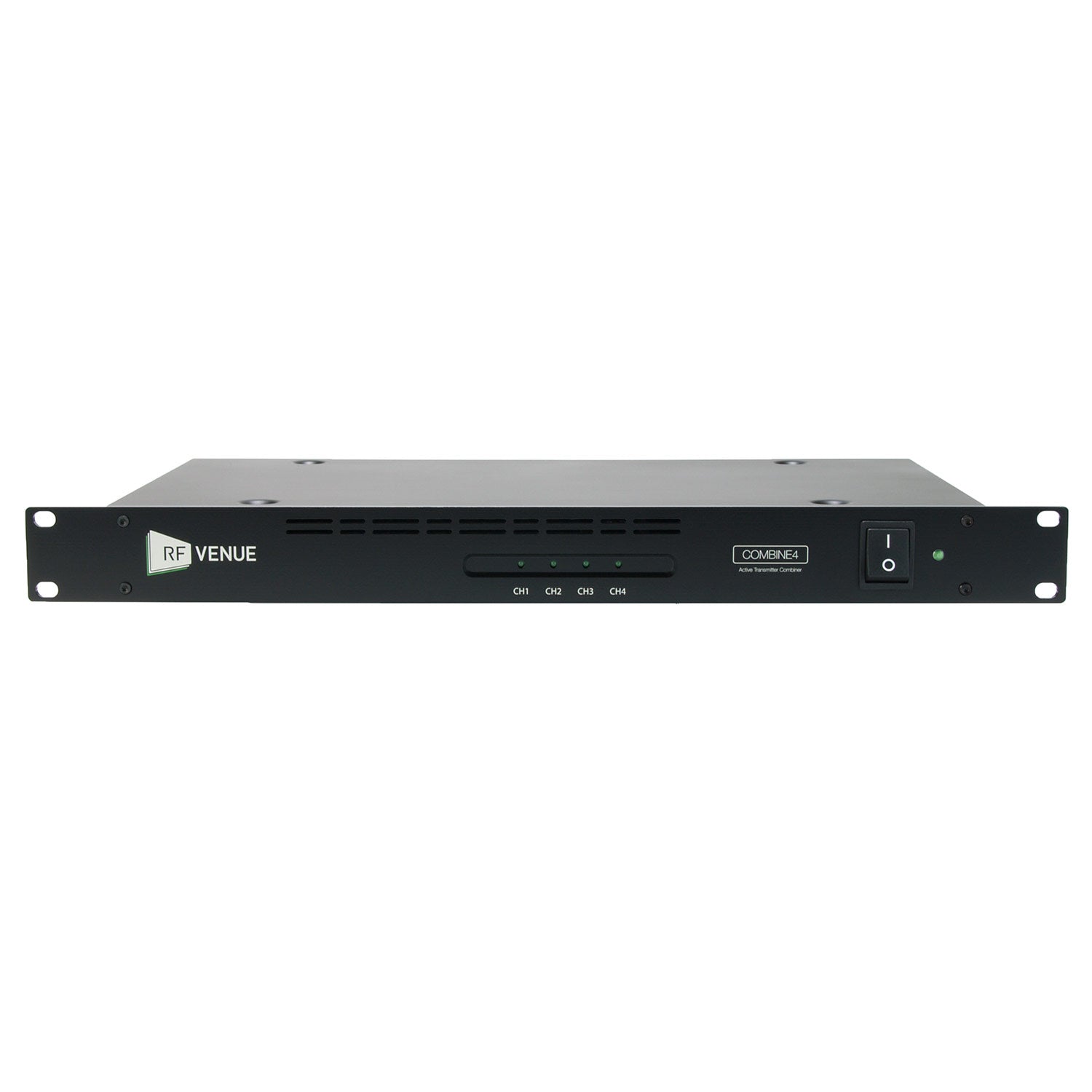

The COMBINE4 IEM transmitter combiner brings together up to four in-ear monitor transmitter signals into a single front panel mounted antenna connector. Any brand IEM may be used, as well as any type of directional antenna. It also provides DC power to up to four IEM transmitters to reduce cable clutter and wall warts. IEM transmitter combination is important for multi-channel systems to minimize intermodulation products arising from multiple adjacent antennas interfering with one another. COMBINE4 has a maximum input power of 100mW.
| Frequency range | 470-960 MHz |
| Input connectors | 4X BNC |
| Full system gain | 0 dB (±2 dB) |
| Maximum RF input power | +20 dBm (100 mW) |
| LED indicator (input signal threshold) | > +5 dBM (Threshold power) |
| Power consumption | 60 W |

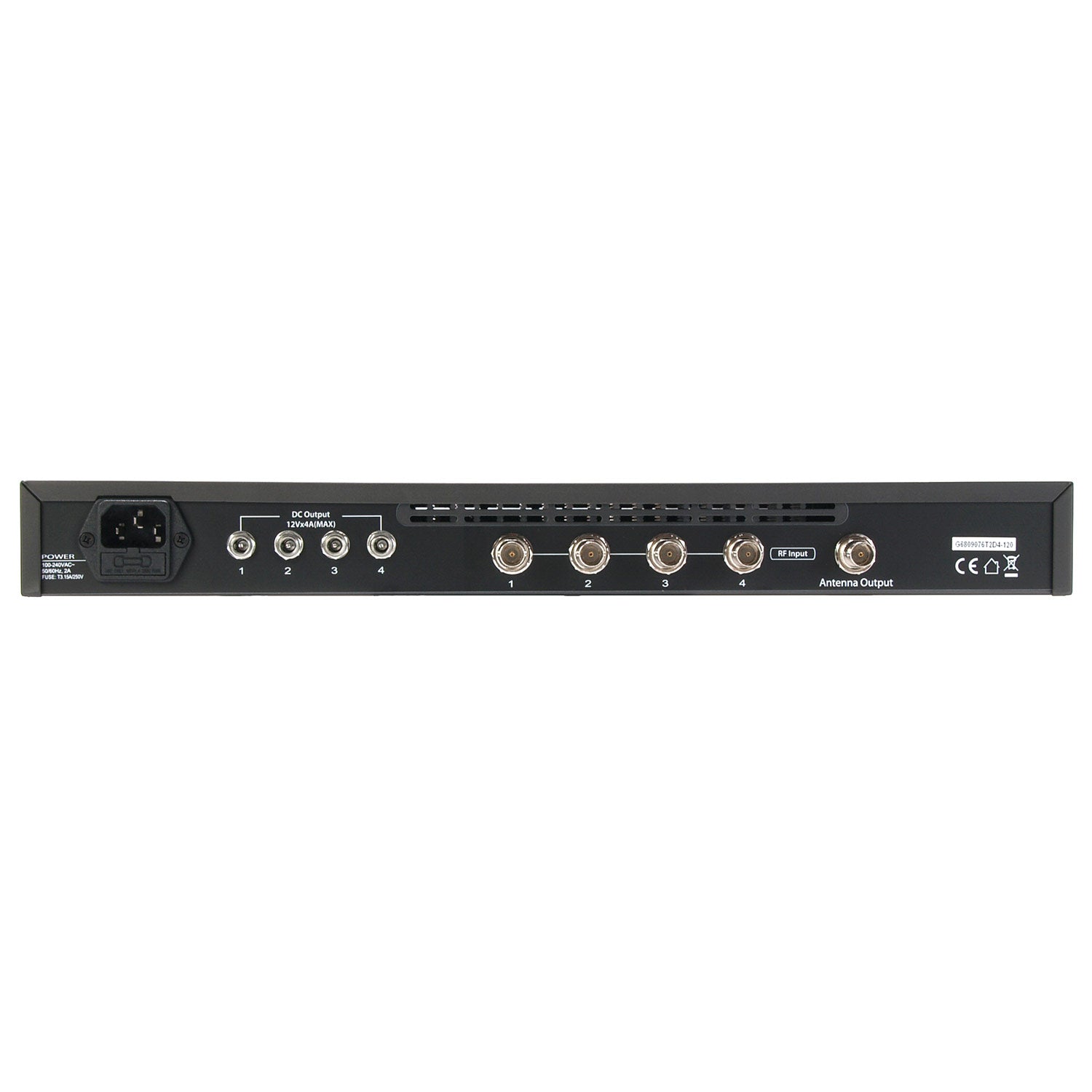

| I / O | 4X RF inputs. 1 antenna out. 4 DC outputs. |
| Input AC voltage | 100~240 VAC, 50/60 Hz, Max 2A |
| Output DC voltage | +12 V. 1 A max (4 outputs total 48 W) |
| Dimensions | 480(W) X 45(H) X 260(D) mm |
| Weight | 2.3 Kgs |
| Supplied Accessories | 4 x BNC jumpers 4 x DC cables 1 x AC cables |
4 channel IEM transmitter combiner + CP Beam antenna + (1) 25’ RG8X coaxial cable.
The COMBINE4 IEM transmitter combiner brings together up to four in-ear monitor transmitter signals into a single front panel mounted antenna connector. Any brand IEM may be used, as well as any type of directional antenna. It also provides DC power to up to four IEM transmitters to reduce cable clutter and wall warts. IEM transmitter combination is important for multi-channel systems to minimize intermodulation products arising from multiple adjacent antennas interfering with one another. COMBINE4 has a maximum input power of 100mW.
| Frequency range | 470-960 MHz |
| Input connectors | 4X BNC |
| Full system gain | 0 dB (±2 dB) |
| Maximum RF input power | +20 dBm (100 mW) |
| LED indicator (input signal threshold) | > +5 dBM (Threshold power) |
| Power consumption | 60 W |
| I / O | 4X RF inputs. 1 antenna out. 4 DC outputs. |
| Input AC voltage | 100~240 VAC, 50/60 Hz, Max 2A |
| Output DC voltage | +12 V. 1 A max (4 outputs total 48 W) |
| Dimensions | 480(W) X 45(H) X 260(D) mm |
| Weight | 2.3 Kgs |
| Supplied Accessories | 4 x BNC jumpers 4 x DC cables 1 x AC cables |
