DALE SKU # RFVE-CPARC

RF Venue CP-ARC - CP Architectural Antenna for IEM Systems

Sale price$649.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

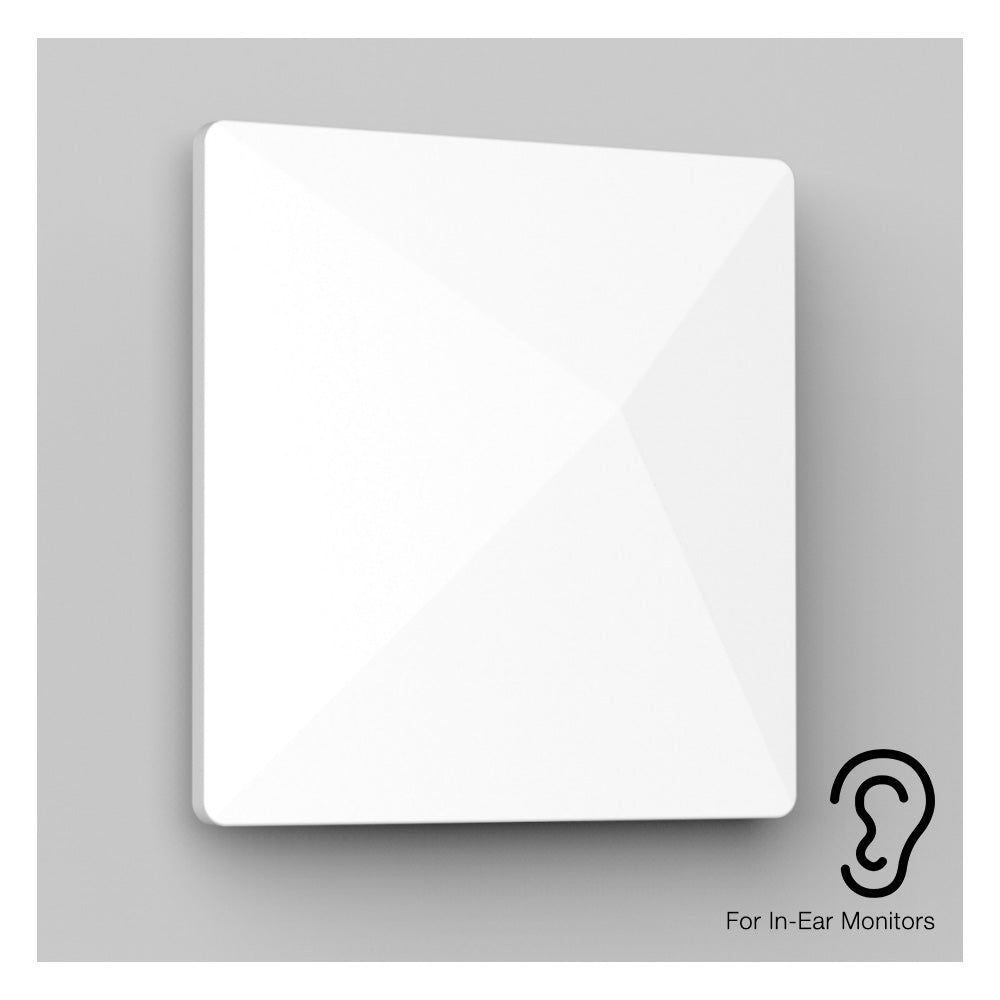

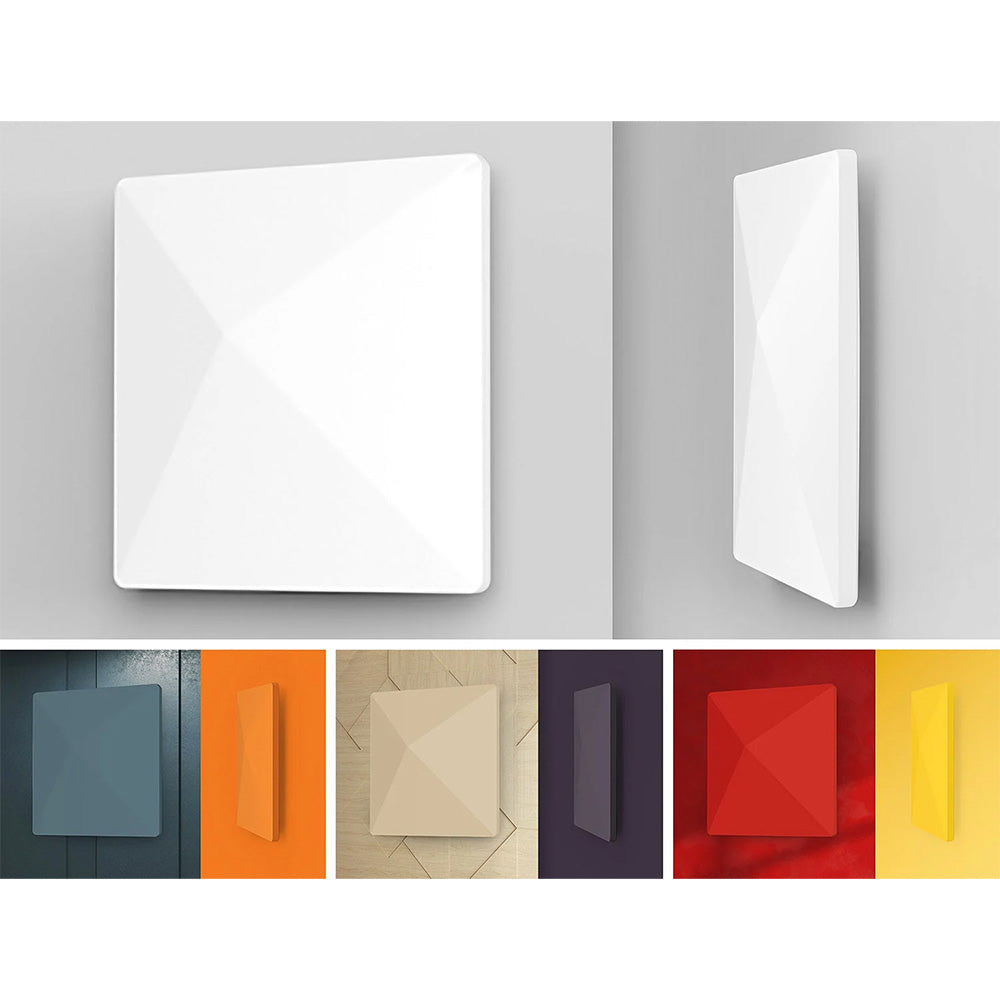

    The CP Architectural Antenna by RF Venue is a high performance antenna for installed in-ear monitor systems (IEMs). Featuring a slim profile enclosure, the CP Architectural Antenna can be installed on a wall or ceiling and can be painted to match any interior. Unlike LPDA or paddle antennas with a fixed polarization, the CP Architectural Antenna uses a unique circularly polarized design to provide excellent transmit signal coverage for IEMs with a highly polished and professional look that room designers and architects appreciate.

    The CP Architectural antenna installs in minutes, with a wall or ceiling-mounted rear plate that is pre-drilled with multiple mounting hole options. The rear plate then simply connects to the front plate, secured with the included mounting screws. Simply connect the rear-mounted BNC terminated coaxial cable to your in-wall or in-ceiling coaxial cable run and the CP Architectural is ready for use.

    The CP Architectural antenna builds on the highly acclaimed foldable CP helical antenna, eliminating the most common signal dropouts while reducing noise and interference. Ideally suited for houses of worship and other installed IEM venues, the CP Architectural Antenna fits any interior design and delivers professional RF performance in the same sleek industrially designed enclosure as the popular Diversity Architectural Antenna for wireless microphones.

    Features:

    • Blends into any background
    • Doesn't Drop Out
    • Key Features Image
      Designed specifically for IEMs
    • Circularly polarized performance in a sleek package
    Electrical
    Operating frequency 400Ð800 MHz
    Bandwidth 400 MHz
    Average return loss 10 dB
    Impedance 50½
    Pattern type Flood Polarization
    RHCP Beam width 120¡
    Gain @ 500MHz 2.5dBi
    Physical
    Dimensions 280X280X50mm / 11" X 11" X 2"
    Weight 0.9 kg / 2 lbs
    Mount location wall or ceiling
    Operating temperature -10Ð40¡C / 14Ð104¡F
    Color White
    Connector(s) BNC female
    Includes CP-ARC Antenna
    Ceiling hardware mounting kit
    Wall hardware mounting kit
