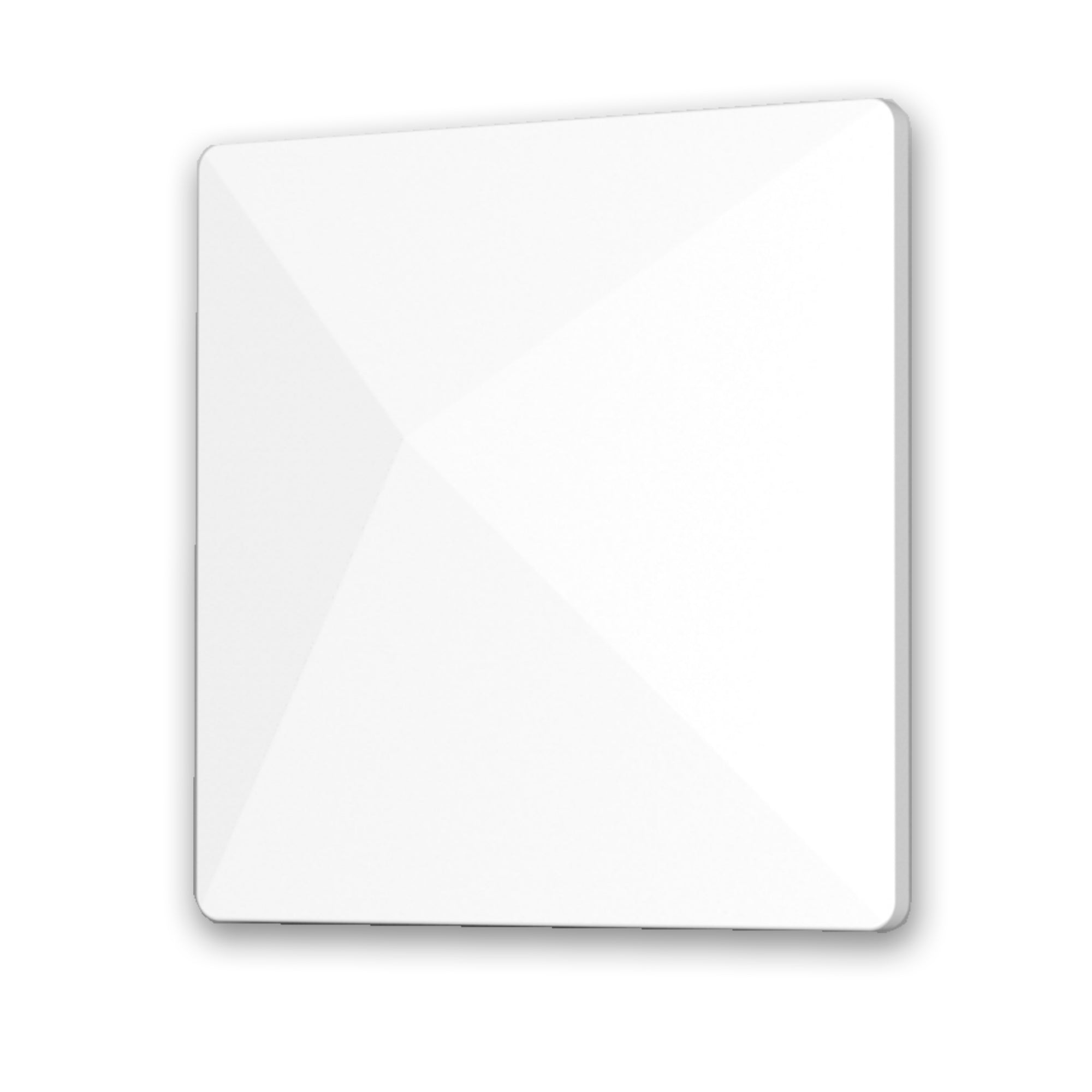

RF Venue D-ARC - Diversity Architectural Antenna


  • Dale #:

    RFVE-DARC
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The new Diversity Architectural Antenna by RF Venue is a high performance antenna system for wireless microphones. Featuring a slim profile enclosure, the Diversity Architectural Antenna can be installed in any position on a wall or ceiling and can be painted to match any interior. Using a uniqu... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The new Diversity Architectural Antenna by RF Venue is a high performance antenna system for wireless microphones. Featuring a slim profile enclosure, the Diversity Architectural Antenna can be installed in any position on a wall or ceiling and can be painted to match any interior. Using a unique patent-pending dual-feed antenna design, both A and B diversity connections are provided, so there’s no need to install two separately spaced antennas resulting in a more professional look that room designers and architects appreciate.

The Diversity Architectural antenna installs in minutes, with a wall or ceiling-mounted rear plate that is pre-drilled with multiple mounting hole options. The rear plate then simply connects to the front plate, secured with the included mounting screws. Simply connect the two rear-mounted BNC terminated coaxial cables to your in-wall or in-ceiling coaxial cable run and the Diversity Architectural is ready for use.

The Diversity Architectural antenna builds on the highly acclaimed Diversity Fin, eliminating the most common signal dropouts caused by changes in angle and orientation of the RF signal. Ideally suited for conference rooms, multi-purpose meeting spaces, training rooms, and houses of worship, the Diversity Architectural fits into any interior design and delivers professional RF performance in a sleek industrially designed enclosure.

Features:

  • Blends into any background
  • Doesn't Drop Out
  • Key Features Image
  • Two antennas in one package
  • Lower cost - easy installation

More +

Product Specs

Electrical
Operating frequency 470-616 MHz
Bandwidth 146 MHz
Impedance 50Ω
Average return loss -6.4 dB
Pattern type Diversity Flood
Gain 3 dBd
F/B ratio N/A
F/S ratio N/A
Polarization Linear
Physical
Dimensions 280X280X50mm / 11” X 11” X 2”
Weight 0.9 kg / 2 lbs
Mount location wall or ceiling
Operating temperature -10–40°C / 14–104°F
Color White
Connector(s) BNC female
