RF Venue D-ARCDISTRO4 - Diversity Architectural Antenna DISTRO4 Pack


  • Dale #:

    RFVE-DARCDISTRO4
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

This turnkey bundle includes everything needed to configure up to 5 channels of wireless microphones. Included in the bundle Patent pending Diversity Architectural Antenna system reduces signal dropouts 4 Channel antenna distribution with internal power supply and cascade ports Two 25... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

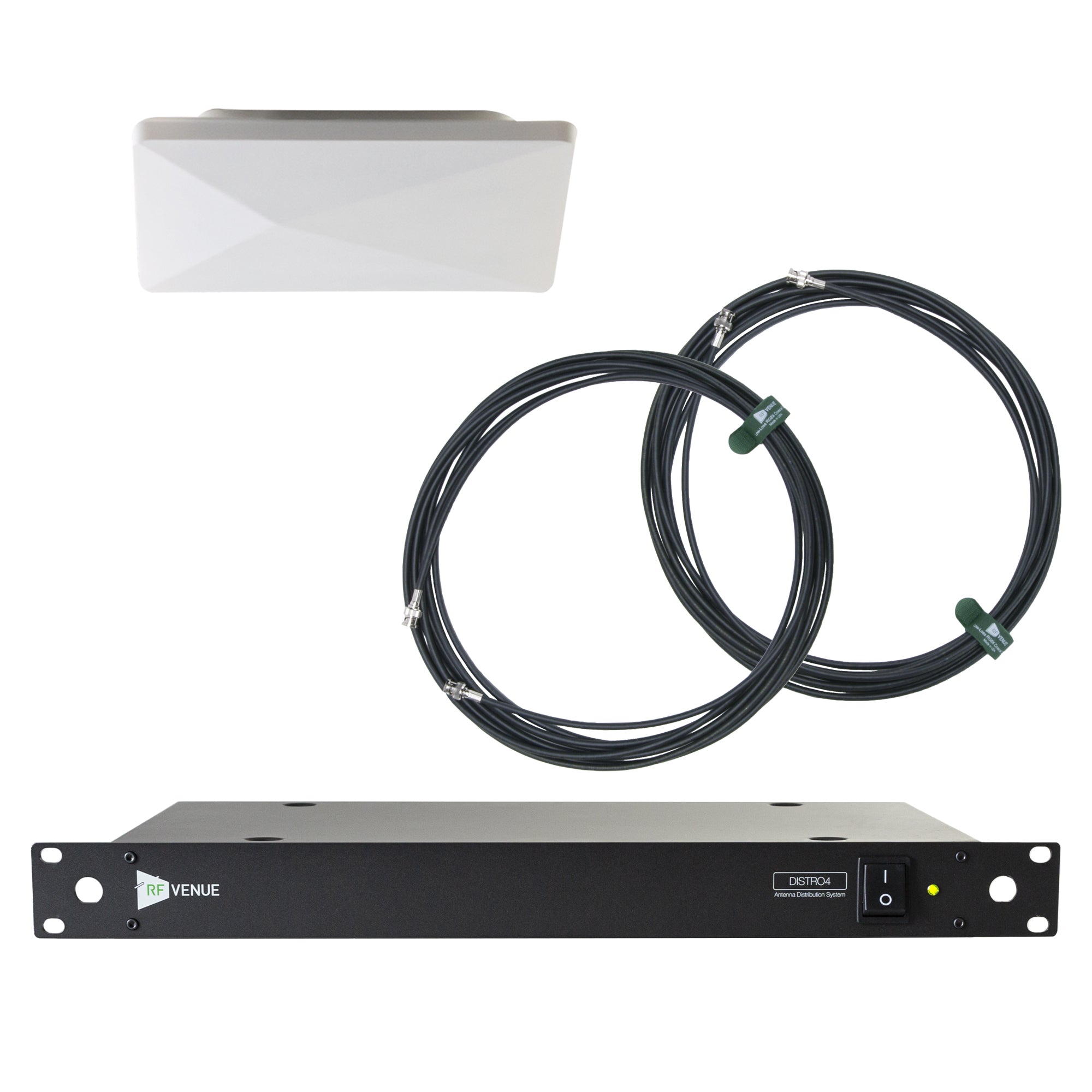

This turnkey bundle includes everything needed to configure up to 5 channels of wireless microphones.

Included in the bundle

  • Patent pending Diversity Architectural Antenna system reduces signal dropouts
  • 4 Channel antenna distribution with internal power supply and cascade ports
  • Two 25’ Premium made in USA low loss double shielded coaxial cables

About the Diversity Architectural Antenna
The new Diversity Architectural Antenna by RF Venue is a high performance antenna system for wireless microphones. Featuring a slim profile enclosure, the Diversity Architectural Antenna can be installed in any position on a wall or ceiling and can be painted to match any interior. Using a unique patent-pending dual-feed antenna design, both A and B diversity connections are provided, so there's no need to install two separately spaced antennas resulting in a more professional look that room designers and architects appreciate.

The Diversity Architectural antenna installs in minutes, with a wall or ceiling-mounted rear plate that is pre-drilled with multiple mounting hole options. The rear plate then simply connects to the front plate, secured with the included mounting screws. Simply connect the two rear-mounted BNC terminated coaxial cables to your in-wall or in-ceiling coaxial cable run and the Diversity Architectural is ready for use.

The Diversity Architectural antenna builds on the highly acclaimed Diversity Fin, eliminating the most common signal dropouts caused by changes in angle and orientation of the RF signal. Ideally suited for conference rooms, multi-purpose meeting spaces, training rooms, and houses of worship, the Diversity Architectural fits into any interior design and delivers professional RF performance in a sleek industrially designed enclosure.

About the DISTRO4
DISTRO4 is a 4-way active antenna splitter plus cascade port with external power that allows you to share one pair of diversity antennas with up to 5 wireless receivers. Built in a full metal housing it ships with 8 BNC cables and 4 dc power cables to connect up your receivers. Multiple DISTRO4s can be connected together up to 25 receivers to a single diversity pair of antennas.
To utilize directional antennas with more than two receivers, an antenna distributor is the right tool for the job. With a single Diversity Fin and DISTRO4, you can avoid crosstalk bleed from multiple whip antennas, and remove questionable wall warts and unneeded powerstrips that can cause other avoidable issues.

About RF Venue Coaxial Cables
Coaxial cabling can make the difference between flawless RF performance and total system failure. Even the slightest crimp or ding in coaxial cable can cause signals to drop sharply or short out.

RF Venue provides premium made in USA low loss, 50Ω RG8X coaxial cable with BNC male connectors for wireless audio applications. Our cables are custom made to our specifications: double shielded braid over foil with a perfect balance between loss and flexibility. All cables are terminated in-house and QC on calibrated Agilent network analyzers for guaranteed performance. RF Venue stocks a variety of lengths from 5' to 150'.

More +

Product Specs

Electrical
Operating frequency 470-616 MHz
Bandwidth 146 MHz
Impedance 50Ω
Average return loss -6.4 dB
Pattern type Diversity Flood
Gain 3 dBd
F/B ratio N/A
F/S ratio N/A
Polarization Linear
Physical
Dimensions 280X280X50mm / 11” X 11” X 2”
Weight 0.9 kg / 2 lbs
Mount location wall or ceiling
Operating temperature -10–40°C / 14–104°F
Color White
Connector(s) BNC female
