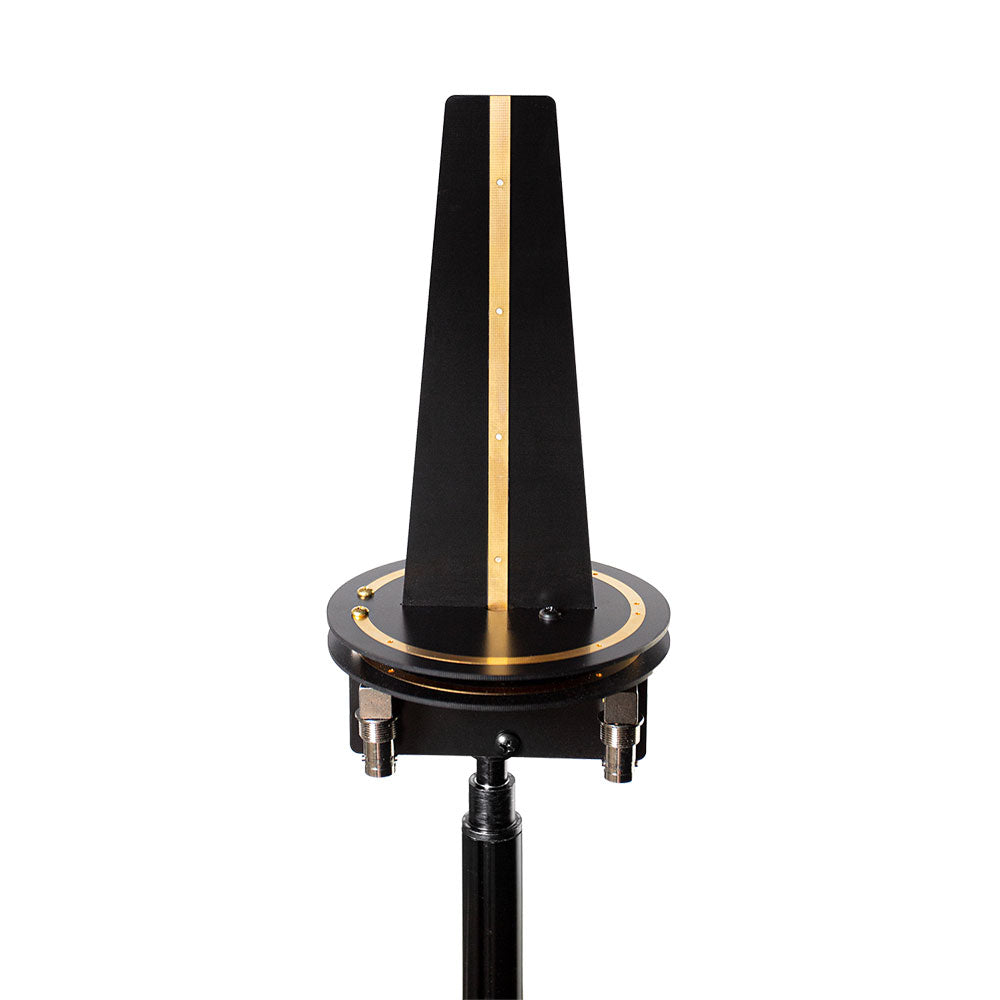

RF Venue D-OMNI - Diversity Omni Antenna
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Building on the success of the highly acclaimed Diversity Fin® Antenna, the Diversity Omni Antenna is an all-new antenna system designed for omnidirectional coverage of wireless microphones. The Diversity Omni features two antennas on a single stand, capturing both vertically and horizontally polarized signals and eliminates the most common signal dropouts in a compact size.
The Diversity Omni also offers greater flexibility in antenna placement, since only one is needed in place of two separate antennas. Its weather resistant design allows it to be mounted outdoors by installing simple protection for the connectors and the provided cordura nylon cover.
The Diversity Omni Antenna is perfectly suited for indoor multi-zone projects or outdoors where large areas of coverage are needed, such as sports venues, theme parks, and amphitheaters.
To connect the Diversity Omni Antenna to a wireless microphone system, simply connect both the A and B antenna inputs from an antenna distribution system like the RF Venue DISTRO4 or DISTRO9 HDR and position the antenna where coverage is desired.
Unlike traditional omnidirectional antennas, the Diversity Omni Antenna allows receivers to see a constant signal regardless of microphone orientation - allowing the presenter to hold a wireless microphone in any position relative to the antenna. A single Diversity Omni provides superior coverage to two traditional omni antennas, allowing cost savings as well as reduced time to installation.
Features:
- Compact design for easy placement, position wherever coverage is needed.
- Perfect for multi-zone projects where mics move between rooms, or outdoors where wide areas of coverage are needed.
- Weather resistant design allows it to be mounted outdoors by installing protection for the connectors and the provided Cordura nylon cover.
What's Included:
- Diversity Omni Antenna
- Stand mount
- Weather resistant cover
| Electrical | |
| Operating frequency | 470Ð616 MHz |
| Bandwidth | 146 MHz |
| Average return loss (Vertical) | -10.5 dB |
| Average return loss (Horizontal) | -13 dB |
| Impedance | 50½ |
| Vertical Monopole | |
| Beam width | 360¡ azimuth |
| F/B ratio | 0 dB |
| F/S ratio | 0 dB |
| Gain | +2 dBd @ 500MHz |
| Horizontal Folded Loop | |
| Beam width | 360¡ azimuth |
| F/B ratio | 0 dB |
| F/S ratio | -1 dB |
| Gain | -2 dBd @ 500MHz |
| Physical | |
| Length | 105mm |
| Height | 204mm |
| Weight | 187g |
| Mount threads | 1/4-20, 3/8-16, 5/8-27 |
| Operating temperature | -23¡C Ð 54¡C |
| Color | Black and Gold |
| Connector(s) | (2) BNC female |
Building on the success of the highly acclaimed Diversity Fin® Antenna, the Diversity Omni Antenna is an all-new antenna system designed for omnidirectional coverage of wireless microphones. The Diversity Omni features two antennas on a single stand, capturing both vertically and horizontally polarized signals and eliminates the most common signal dropouts in a compact size.
The Diversity Omni also offers greater flexibility in antenna placement, since only one is needed in place of two separate antennas. Its weather resistant design allows it to be mounted outdoors by installing simple protection for the connectors and the provided cordura nylon cover.
The Diversity Omni Antenna is perfectly suited for indoor multi-zone projects or outdoors where large areas of coverage are needed, such as sports venues, theme parks, and amphitheaters.
To connect the Diversity Omni Antenna to a wireless microphone system, simply connect both the A and B antenna inputs from an antenna distribution system like the RF Venue DISTRO4 or DISTRO9 HDR and position the antenna where coverage is desired.
Unlike traditional omnidirectional antennas, the Diversity Omni Antenna allows receivers to see a constant signal regardless of microphone orientation - allowing the presenter to hold a wireless microphone in any position relative to the antenna. A single Diversity Omni provides superior coverage to two traditional omni antennas, allowing cost savings as well as reduced time to installation.
Features:
- Compact design for easy placement, position wherever coverage is needed.
- Perfect for multi-zone projects where mics move between rooms, or outdoors where wide areas of coverage are needed.
- Weather resistant design allows it to be mounted outdoors by installing protection for the connectors and the provided Cordura nylon cover.
What's Included:
- Diversity Omni Antenna
- Stand mount
- Weather resistant cover
| Electrical | |
| Operating frequency | 470Ð616 MHz |
| Bandwidth | 146 MHz |
| Average return loss (Vertical) | -10.5 dB |
| Average return loss (Horizontal) | -13 dB |
| Impedance | 50½ |
| Vertical Monopole | |
| Beam width | 360¡ azimuth |
| F/B ratio | 0 dB |
| F/S ratio | 0 dB |
| Gain | +2 dBd @ 500MHz |
| Horizontal Folded Loop | |
| Beam width | 360¡ azimuth |
| F/B ratio | 0 dB |
| F/S ratio | -1 dB |
| Gain | -2 dBd @ 500MHz |
| Physical | |
| Length | 105mm |
| Height | 204mm |
| Weight | 187g |
| Mount threads | 1/4-20, 3/8-16, 5/8-27 |
| Operating temperature | -23¡C Ð 54¡C |
| Color | Black and Gold |
| Connector(s) | (2) BNC female |
