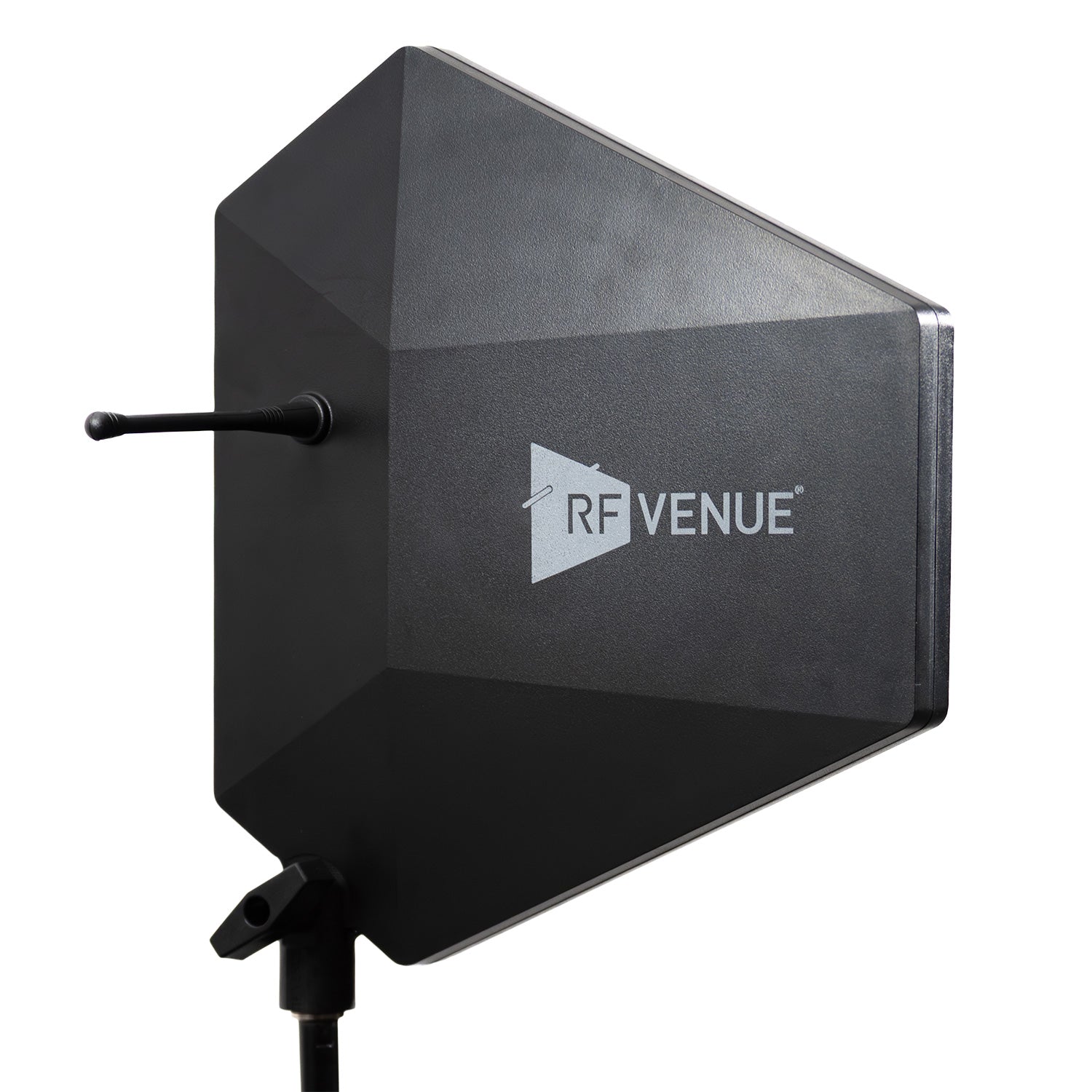

RF Venue DFIN-IPX - Diversity Fin IPX Antenna (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Diversity Fin® IPX Antenna is a game changer for live sound—handling rain, dust, and tough environments without missing a beat.
All-Weather Reliability
Like the CP Stage Antenna, IPX is Rated IP44, featuring a weather-resistant seal and downward-facing BNC connectors to protect against rain and dust. A highly ruggedized enclosure makes it road-worthy.
Patented Cross-Polarized Design
Replaces two traditional shark fin paddle antennas with a single, high-performance unit that reduces cost, setup time, and user error. Specifically designed to combat multi-path interference
High Compatibility
Operates across the 470-928 MHz range, making it compatible with nearly all modern wireless microphone systems.
What's Included:
- (1) Diversity Fin IPX Antenna
- (2) Dipole Antennas
- (2) Spare Dipole Antennas
- (1) Dipole Storage Case (only included with the DFIN-IPX black version)
- (1) Threaded EU Microphone Stand Adapter
| Operating Frequency | 470 – 928 MHz |
| Impedance | 50 Ω |
| Polarization: LPDA | Vertical |
| Polarization: Dipole | Horizontal |
| Dimensions | 287 x 346 x 47 mm / 11.2 x 13.6 x 1.85 in |
| Weight | 1.8 kg / 4 lbs |
| Mounting Interface | 5/8”-27, 3/8”-16 |
| IP Rating | IP44 |
| Connectors | 2x BNC |
The Diversity Fin® IPX Antenna is a game changer for live sound—handling rain, dust, and tough environments without missing a beat.
All-Weather Reliability
Like the CP Stage Antenna, IPX is Rated IP44, featuring a weather-resistant seal and downward-facing BNC connectors to protect against rain and dust. A highly ruggedized enclosure makes it road-worthy.
Patented Cross-Polarized Design
Replaces two traditional shark fin paddle antennas with a single, high-performance unit that reduces cost, setup time, and user error. Specifically designed to combat multi-path interference
High Compatibility
Operates across the 470-928 MHz range, making it compatible with nearly all modern wireless microphone systems.
What's Included:
- (1) Diversity Fin IPX Antenna
- (2) Dipole Antennas
- (2) Spare Dipole Antennas
- (1) Dipole Storage Case (only included with the DFIN-IPX black version)
- (1) Threaded EU Microphone Stand Adapter
| Operating Frequency | 470 – 928 MHz |
| Impedance | 50 Ω |
| Polarization: LPDA | Vertical |
| Polarization: Dipole | Horizontal |
| Dimensions | 287 x 346 x 47 mm / 11.2 x 13.6 x 1.85 in |
| Weight | 1.8 kg / 4 lbs |
| Mounting Interface | 5/8”-27, 3/8”-16 |
| IP Rating | IP44 |
| Connectors | 2x BNC |
