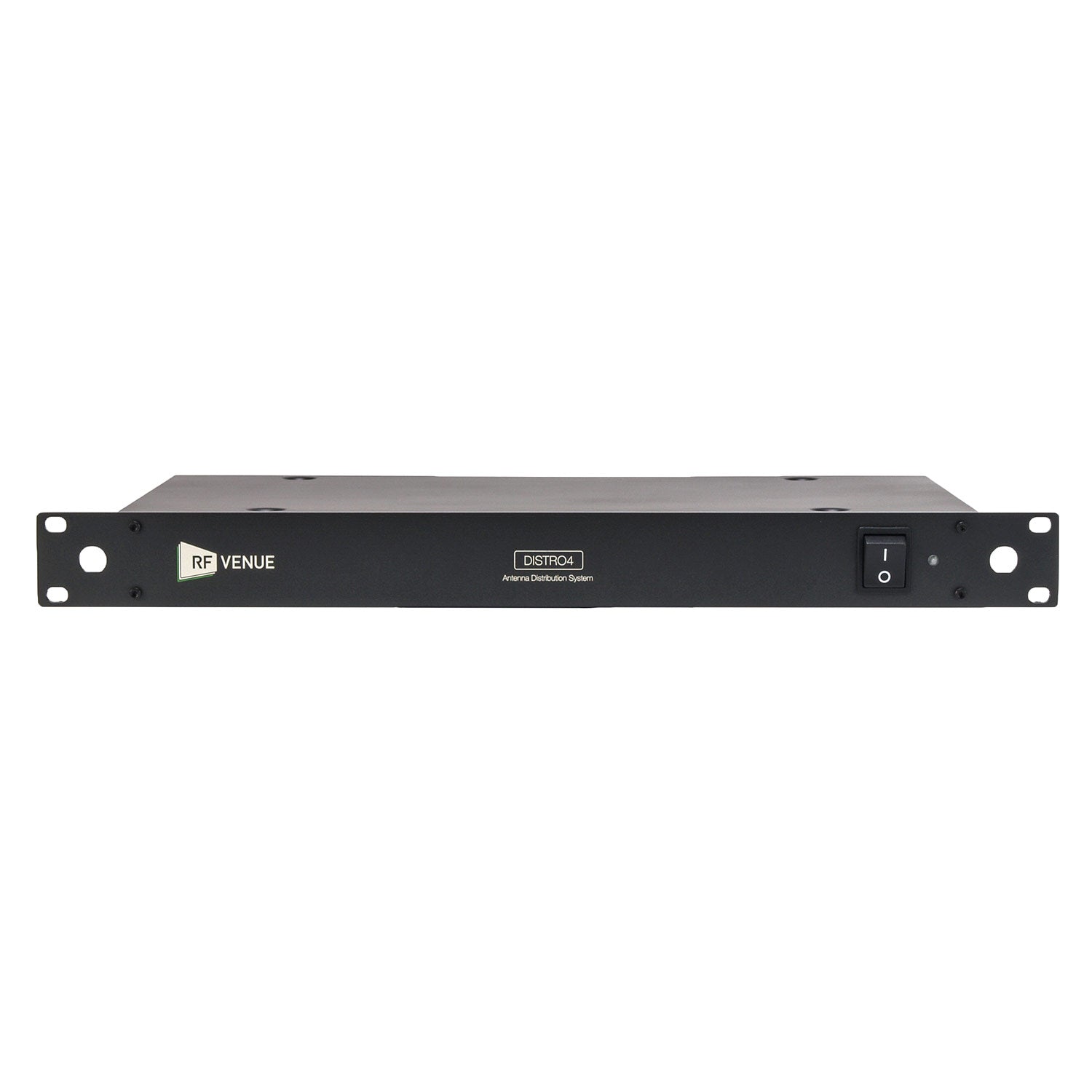

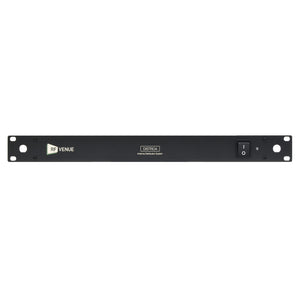

RF Venue DISTRO4 Four-Channel UHF Antenna Distribution Amplifier
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description

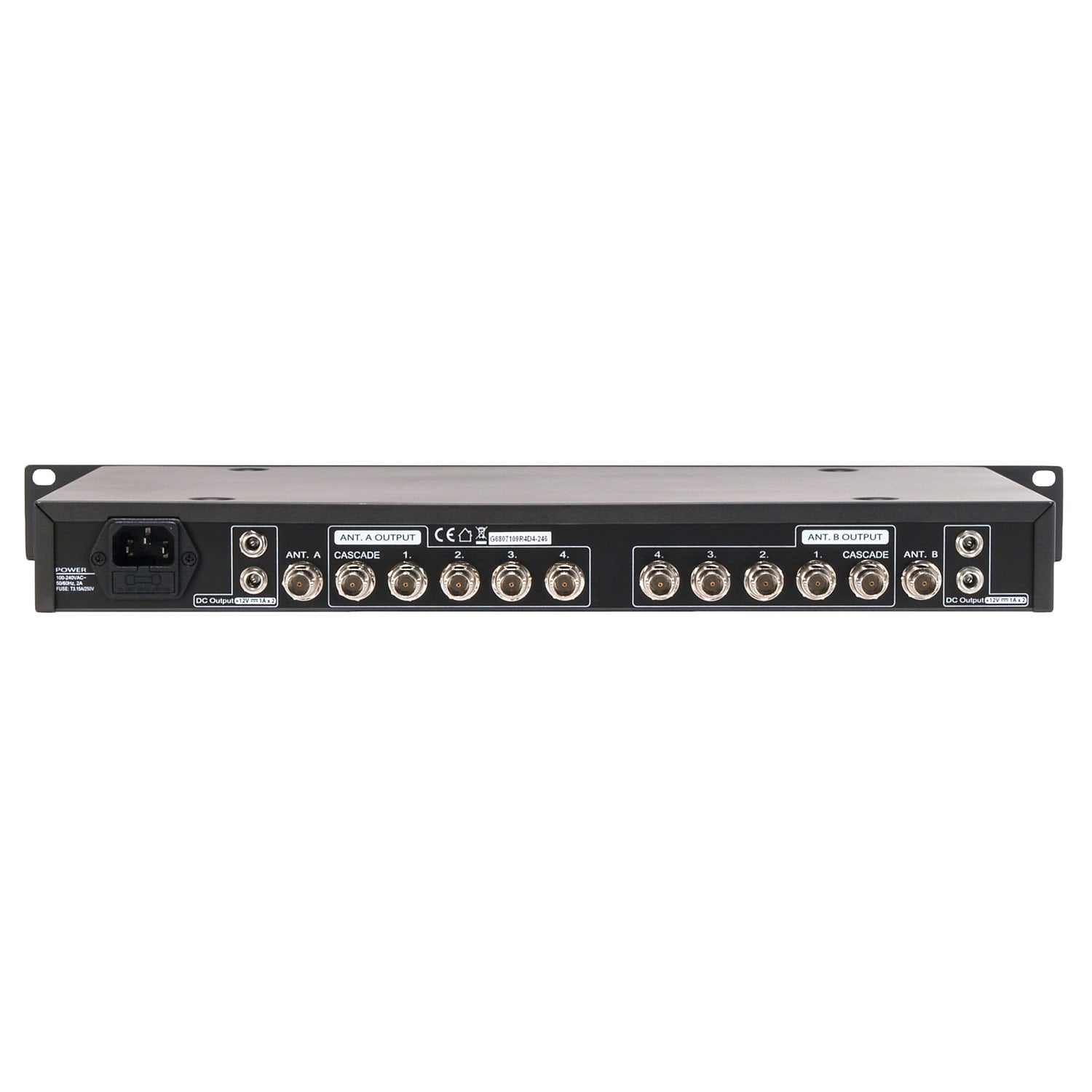

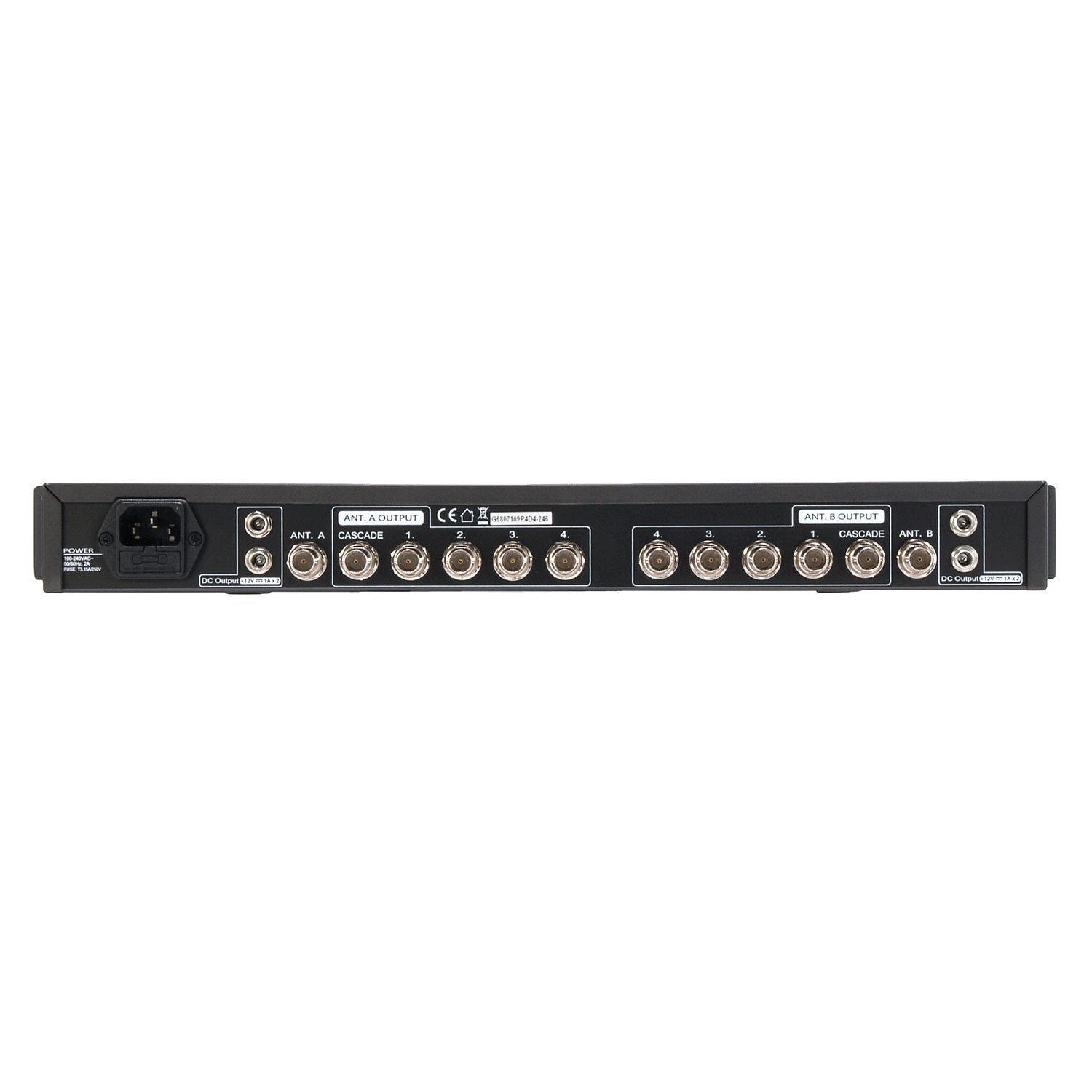

DISTRO4 distributes diversity RF and DC power across four wireless microphone receivers of any brand. A true "distribution amplifier," DISTRO4 splits signals from two antennas (or one Diversity Fin) connected to the rear panel and amplifies them before delivering the signals to multiple receivers in a rack. An additional cascade port is included for daisy chaining multiple units together to accommodate up to 16 receivers per antenna pair.
DISTRO4 features a 2000 mA internal power supply (no wall wart) and compares to antenna distributors twice its price. It includes all RF and DC power cables needed to connect a 4 channel wireless microphone system as well as cascade to one additional DISTRO4.
| Frequency range | 470-952 MHz |
| RF output level (gain) | 3 dB (±2 dB) |
| Cascade output level | 0 dB ~ +2 dB |
| Output connection isolation | 25 dB |
| Third order intercept point | 24 dBm |
| Impedance | 50 |
| Power consumption | 60 W |
| Input AC voltage | 100~240 V switching |
| Output DC voltage | +12 V DC 1 A x 4 |
| Dimensions | 480(W) X 45(H) X 250(D) mm |
| Weight | 2.15 Kgs |
DISTRO4 distributes diversity RF and DC power across four wireless microphone receivers of any brand. A true "distribution amplifier," DISTRO4 splits signals from two antennas (or one Diversity Fin) connected to the rear panel and amplifies them before delivering the signals to multiple receivers in a rack. An additional cascade port is included for daisy chaining multiple units together to accommodate up to 16 receivers per antenna pair.
DISTRO4 features a 2000 mA internal power supply (no wall wart) and compares to antenna distributors twice its price. It includes all RF and DC power cables needed to connect a 4 channel wireless microphone system as well as cascade to one additional DISTRO4.
| Frequency range | 470-952 MHz |
| RF output level (gain) | 3 dB (±2 dB) |
| Cascade output level | 0 dB ~ +2 dB |
| Output connection isolation | 25 dB |
| Third order intercept point | 24 dBm |
| Impedance | 50 |
| Power consumption | 60 W |
| Input AC voltage | 100~240 V switching |
| Output DC voltage | +12 V DC 1 A x 4 |
| Dimensions | 480(W) X 45(H) X 250(D) mm |
| Weight | 2.15 Kgs |
