DALE SKU # RFVE-OPTIX1S3US

RF Venue Optix Series 3 - Single Channel RF Over Fiber Kit

Sale price$3,999.00
  • Availability:

    In Stock
  • Available for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

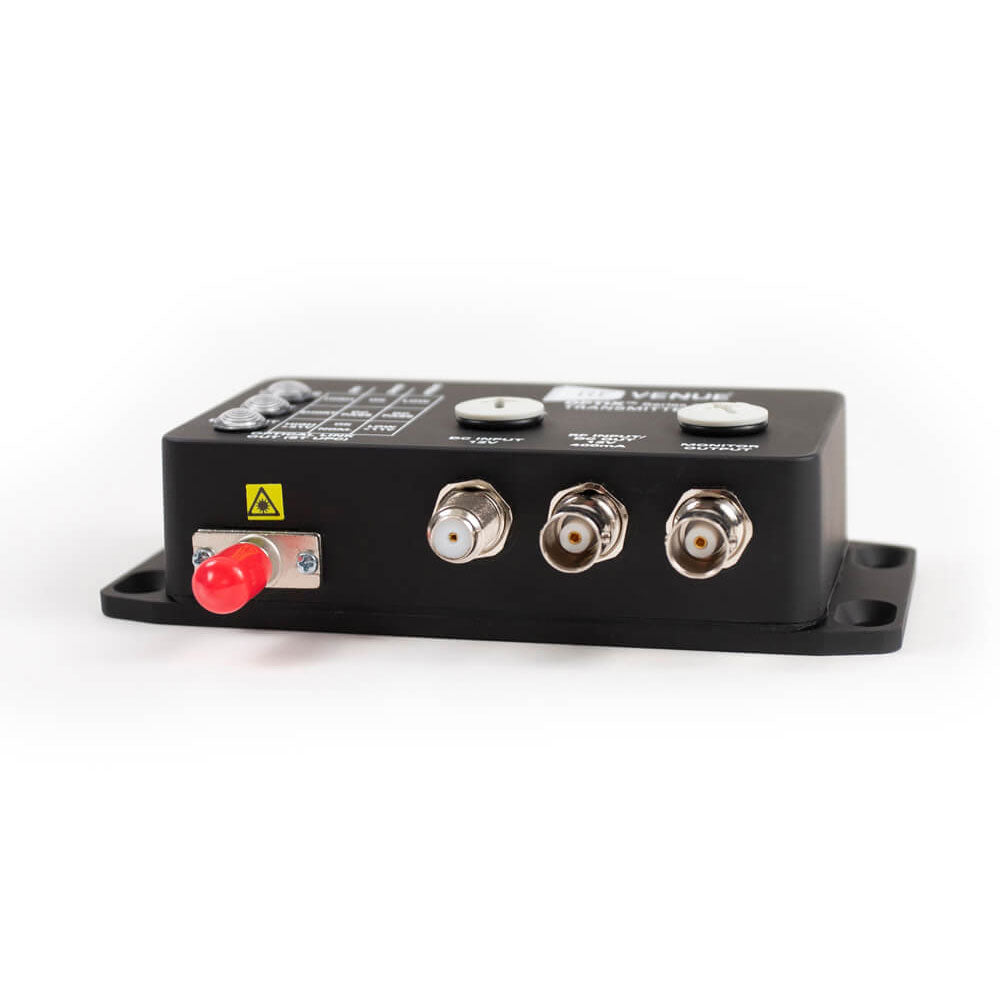

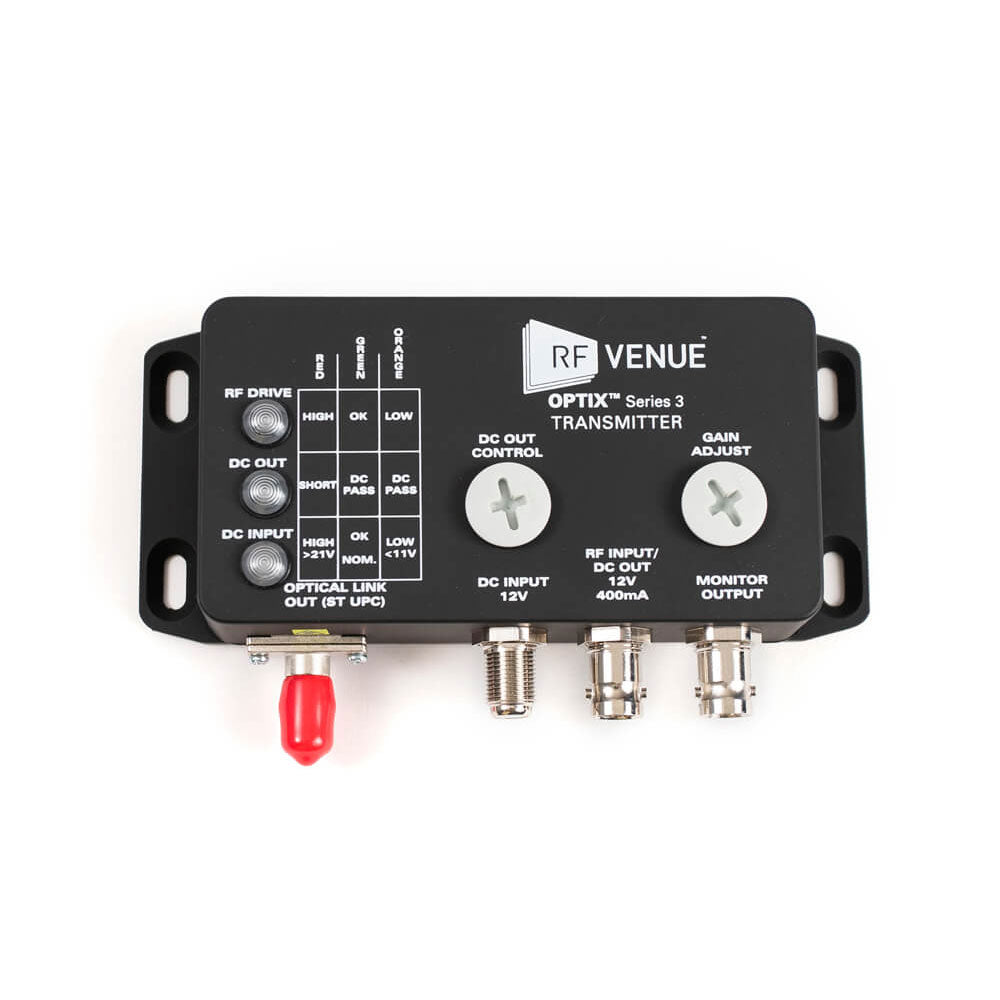

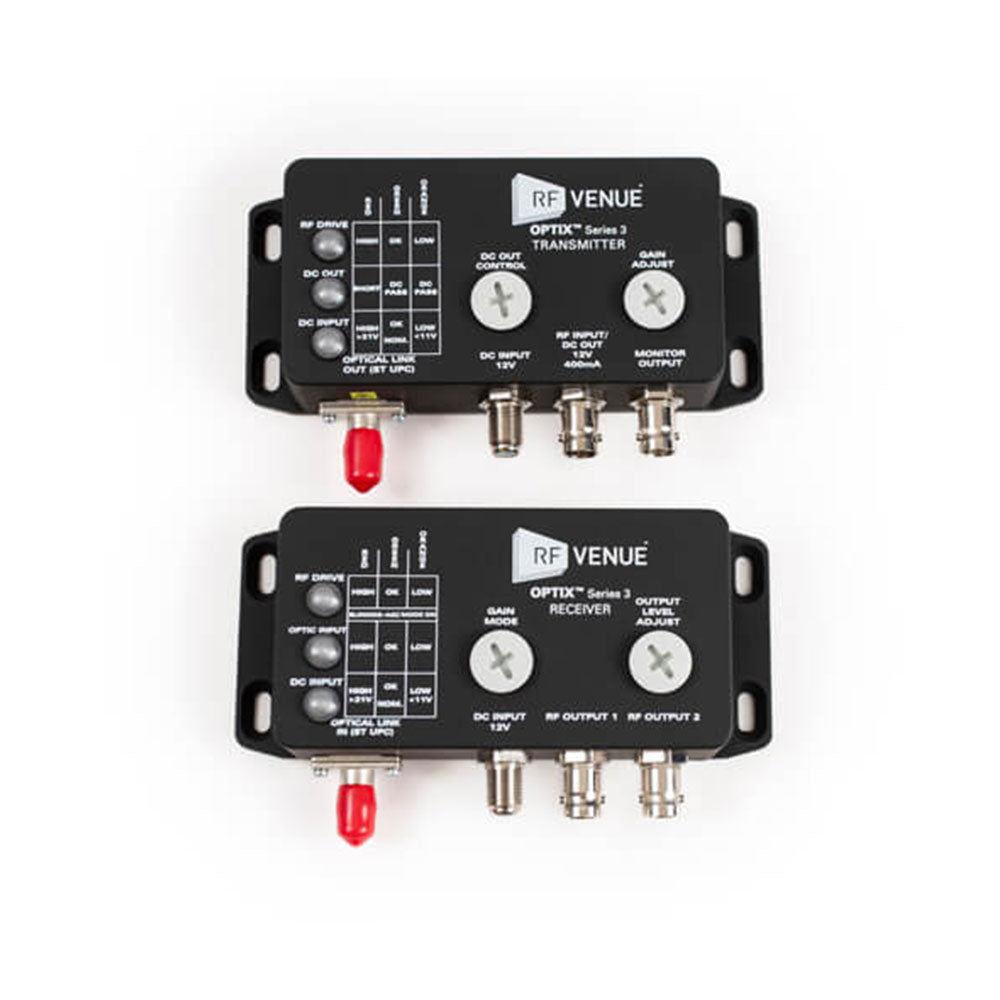

    OPTIX Series 3 is a high performance RF to fiber optic (RFoF) conversion system designed to facilitate the remote placement of wireless audio antennas. The OPTIX Transmitter module converts RF signals arriving from an antenna source into a singlemode optical signal, sending that signal down a length of fiber-optic cable to the OPTIX Receiver module which converts the source signal back into RF. Without any signal loss over the optical cable, the OPTIX system can extend the range of antenna placement up to several kilometers, eliminating the need for bulky and lossy coaxial cable runs.

    Well-suited for live production as well as installed sound, OPTIX Series 3 features extensive user configurable controls to manage signal level, apply DC power for active antennas or amplifiers, and even directly monitor outputs to dial in performance. Compatible across VHF, UHF, and the 900 MHz band, OPTIX Series 3 is compatible across any brand wireless audio system.

    Electrical
    Typical operating frequency 175-213, 470Ð698, 900-960 MHz
    VSWR avg < 2.5:1
    Impedance (nom) 50½
    Max RF input power < 0 dBm / 1 mW
    DC operating voltage 5Ð22 V
    Power supply voltage 12.25 VDC
    Tx Module Power Draw ~166 mA @ 12VDC
    Rx Module Power Draw ~258 mA @ 12VDC
    Optical Tx wavelength 1310 nm
    Physical
    Dimensions (each, including flange and connectors) 138 mm X 77 mm X 33 mm
    Tx weight 223 g
    Rx weight 229 g
    Operating temperature -25CÐ75C
    RF Connectors BNC female
    Optical connectors ST/UPC

    OPTIX Series 3 is a high performance RF to fiber optic (RFoF) conversion system designed to facilitate the remote placement of wireless audio antennas. The OPTIX Transmitter module converts RF signals arriving from an antenna source into a singlemode optical signal, sending that signal down a length of fiber-optic cable to the OPTIX Receiver module which converts the source signal back into RF. Without any signal loss over the optical cable, the OPTIX system can extend the range of antenna placement up to several kilometers, eliminating the need for bulky and lossy coaxial cable runs.

    Well-suited for live production as well as installed sound, OPTIX Series 3 features extensive user configurable controls to manage signal level, apply DC power for active antennas or amplifiers, and even directly monitor outputs to dial in performance. Compatible across VHF, UHF, and the 900 MHz band, OPTIX Series 3 is compatible across any brand wireless audio system.

    Electrical
    Typical operating frequency 175-213, 470Ð698, 900-960 MHz
    VSWR avg < 2.5:1
    Impedance (nom) 50½
    Max RF input power < 0 dBm / 1 mW
    DC operating voltage 5Ð22 V
    Power supply voltage 12.25 VDC
    Tx Module Power Draw ~166 mA @ 12VDC
    Rx Module Power Draw ~258 mA @ 12VDC
    Optical Tx wavelength 1310 nm
    Physical
    Dimensions (each, including flange and connectors) 138 mm X 77 mm X 33 mm
    Tx weight 223 g
    Rx weight 229 g
    Operating temperature -25CÐ75C
    RF Connectors BNC female
    Optical connectors ST/UPC
