RF Venue RF Explorer PRO - Spectrum Analyzer

  • Dale #:

    RFVE-RFEXPLORERPRO
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

RF Explorer® Pro is a 3rd generation, high-performance instrument for wireless audio system design, deployment, and monitoring. With its integrated 6 GHz Spectrum Analyzer, Tracking Generator, and Frequency Coordination and WiFi Analysis tools, it offers advanced functionality with an intuitive ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

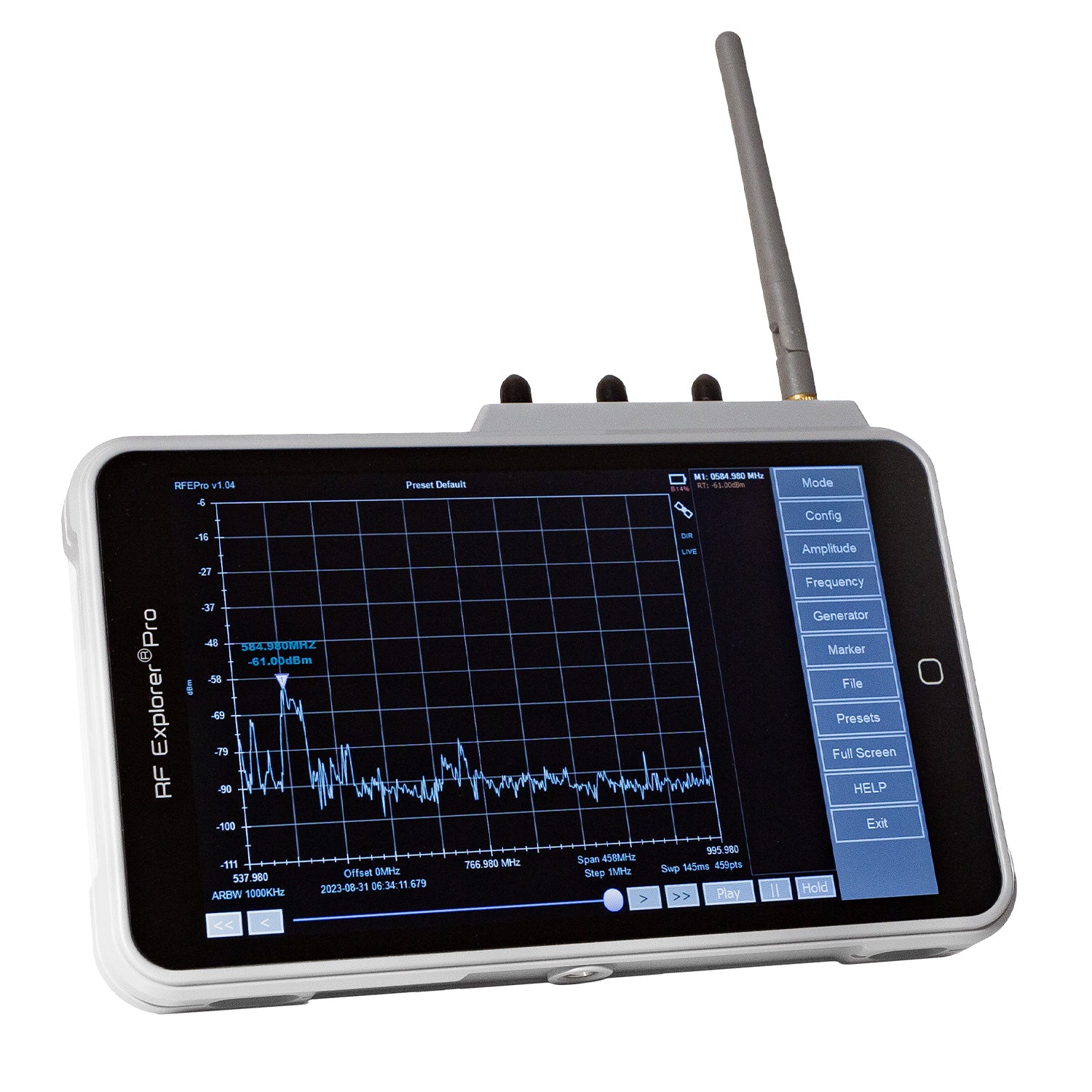

RF Explorer® Pro is a 3rd generation, high-performance instrument for wireless audio system design, deployment, and monitoring. With its integrated 6 GHz Spectrum Analyzer, Tracking Generator, and Frequency Coordination and WiFi Analysis tools, it offers advanced functionality with an intuitive touch screen to support any wireless microphone or in-ear monitor system.

It also features advanced modes such as Zero Span, Waterfall 2D and 3D views, and Power Channel, offering enhanced flexibility to handle a wide range of scenarios in any venue.

RF Explorer Pro also features a dedicated WiFi Analyzer mode built-in for working with wireless data networks and the ever growing list of live performance tools operating in the 2.4 and 5 GHz frequency bands. WiFi Analyzer mode lets you quickly visualize these often congested frequency bands and identify less occupied channels for configuring your system to avoid problems on stage or with your digital mixing console control.

Features:

  • Built-in Frequency Coordination: The high-performance CPU also enables fast frequency coordination calculations, real-time interference monitoring, and intermodulation analysis right out of the box.
  • Record/Save/Replay Spectrum Data: Automatically save scan data on RAM for easy replay of any event. Additionally, the data can be manually or automatically saved in binary and CSV formats for later use.
  • Remote Network Control:  Control the RF Explorer Pro over any network connection, simply connect USB to Ethernet adapter and configure over VNC
  • Continuous Monitoring and Alerting: Stay informed with reliable alerts, including configurable limit lines, to ensure you never miss critical issues during an event.
  • Export Data: Seamlessly export all captured data to a USB drive for use in other software applications such as RF Venue's free online Wireless System Builder, Shure® Wireless Workbench, Audio Technica® Wireless Manager, Sennheiser® Wireless System Manager, Excel, and more.
  • SMA Spectrum analyzer input:  Interface with BNC adapter or jumper cable to analyze RF from any part of your wireless audio system.  Patch into antenna distros, receive antennas, bandpass filters, RF over fiber converters or other sources to directly measure performance of your system, debug issues, and fine tune performance.
  • HDMI output:  Connect the RF Explorer PRO to an external display for monitoring RF performance in real time during an event.  This is also useful for system configuration and testing to gauge wireless microphone or in-ear monitor coverage range.

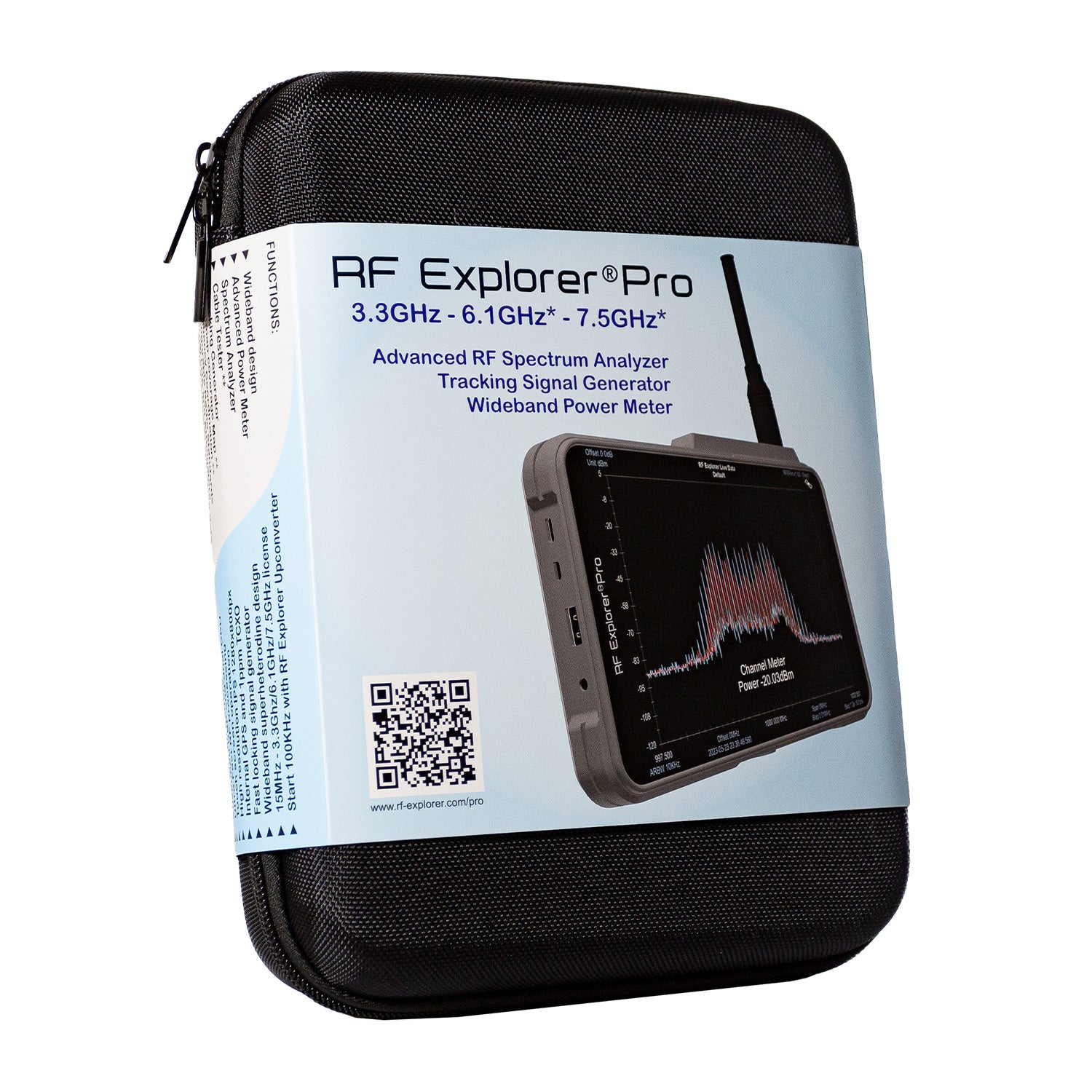

  • What's included: USB charger and padded carrying case included

More +

Product Specs

Frequency range 15 MHz to 6 GHz
Resolution Bandwidth 3 KHz – 2.5 MHz
Sweep Time 3 GHz / 280ms With RBW 2.5MHz
Sweep Points 512-65,000
Dynamic range (Depending on RBW and Band) Direct: -110dBm to +10dBm Preamplifier LNA: -130dBm to -30dBm Attenuator: -80dBm to +33dBm
Absolute Max input power +33dBm with internal Attenuator selected
Display Average Noise Level -130dBm
typical LNA
Noise Floor -160dBm/Hz
WiFi Analyzer 2.4Ghz / 5.8GHz
CPU Advanced Intel 64bits
DSP High Performance Dual DSP 32bits+16bits
Save/Replay 100,000 Sweeps on Memory Unlimited Sweeps on File
File Export Compatible CSV and Binary formats
