RME MADIface USB 128 Channel MADI Mobile USB 2.0 Interface


  • Dale #:

    RME-MADIUSB
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm

Description

MADI portability at its best! The compact MADIface USB provides MADI I/O over USB 2.0 while supporting the format's full 64 channels for recording and playback, under Mac and Windows. Both inputs can be used for full redundancy operation. Optionally both MADI I/Os can be operated simultaneously f... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

MADI portability at its best! The compact MADIface USB provides MADI I/O over USB 2.0 while supporting the format's full 64 channels for recording and playback, under Mac and Windows. Both inputs can be used for full redundancy operation. Optionally both MADI I/Os can be operated simultaneously for full 128 channel input and output access, mixed and routed by TotalMix. Even without computer the small box delivers extraordinary bi-directional format converter and active repeater functionality.

Its sturdy and bus-powered design makes it as easy to use as reliable in operation. MADIface USB is both MADI portability at its best as also a perfect desktop solution to connect MADI equipment to any Mac and PC. A real gem in flexibility, usefullness and trouble-free operation - as you expect it from RME.

Features:

  • Record/Playback channels: 64 in / 64 out

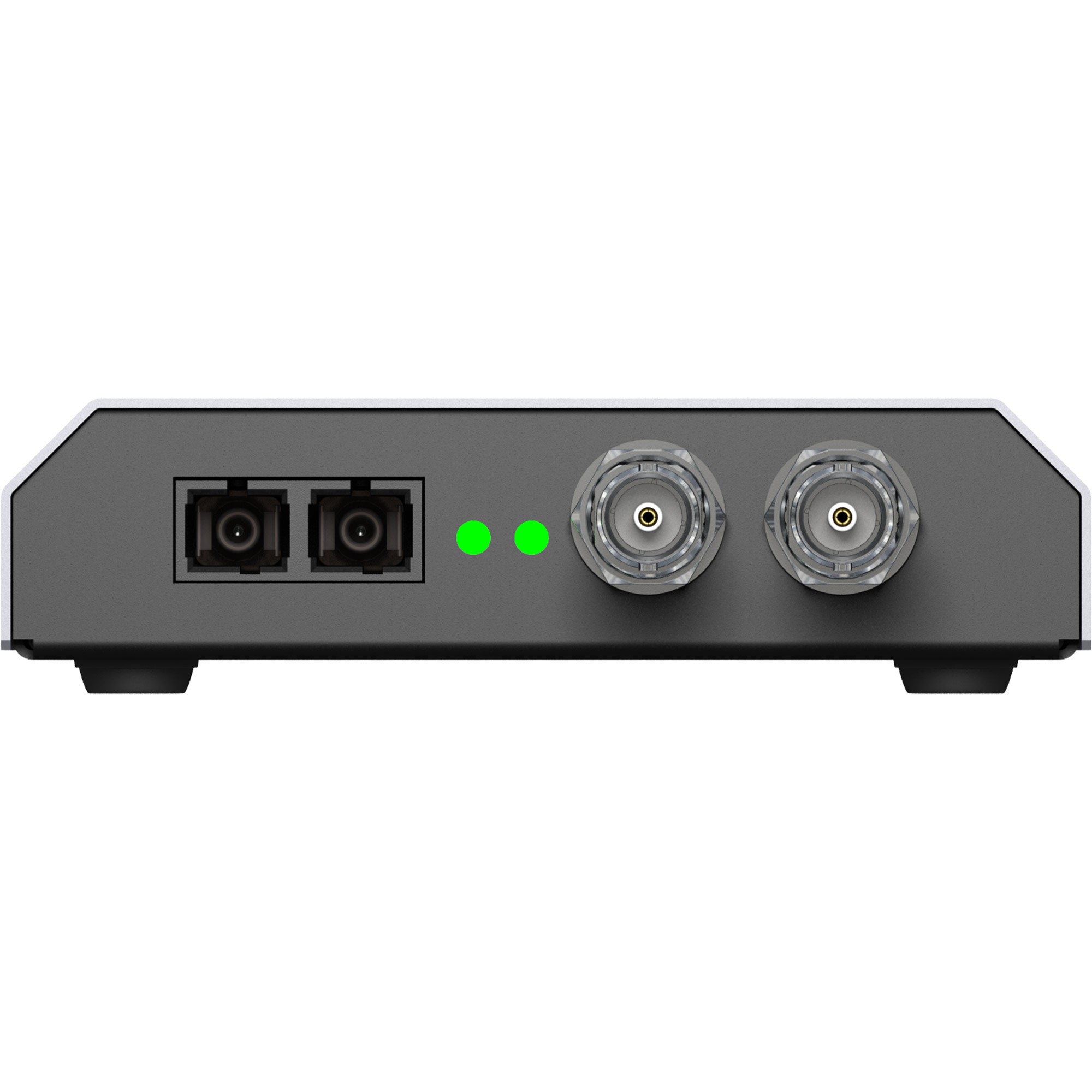

  • 2 x MADI I/O (optical and coaxial)
  • TotalMix software control included
  • No external power supply required
  • Stand-alone mode operation
  • Seamless Redundancy Operation

MADIface USB offers several operation modes when used with a Mac or Windows computer: 64 Channel Mix, Redundancy mode, 128 Channel Mix and a straight routing mode.

The option Disable TotalMix completely disables TotalMix, the unit's flexible internal mixer and routing matrix. All input and output data is going straight to record/coming from playback, with no mixing or routing involved. In this mode the outputs are mirrored, carrying the same signal.

In 64 Channel Mix mode TotalMix shows 64 input, playback and output channels. All settings in TotalMix use the data from one MADI input port, and send identical data to both MADI output ports. The currently active MADI input port can be configured in the Settings dialog.

The option AutoSelect activates an automatic input selection. Using both inputs at the same time, AutoSelect puts the device into Seamless Redundancy mode. The MADIface USB will switch to the other input in real-time if the current one fails.

In 128 Channel Mix mode record and playback is still limited to 64 channels, with the current input selected in the Settings dialog. But the other input is also available through TotalMix, and the output signal is not mirrored, but separated, with TotalMix having 128 output channels. Applications like independent mix output, monitoring and serial pass-through of the second source are just a few clicks away.

SteadyClock as well as RME's well known MADI compatibility ensure hassle-free operation with other devices. MIDI over MADItechnology may be used to remote-control other MADI devices. DIGICheck, an included complete audio analyzing suite, supports the user under Mac OS X and Windows.

More +

Product Specs

Inputs/Outputs 2 x MADI I/O, optical and coaxial (BNC)
MIDI input and output via virtual MIDI port
Clock modes master (internal) and slave (MADI input)
Sample rates 44.1, 48, 88.2, 96, 176.4, 192 kHz, variable (Sync/DDS)
Jitter < 1 ns, internal and all inputs
Jitter sensitivity PLL operates even at 100 ns Jitter
Seamless Redundancy operation with both inputs
TotalMix 2048 channel mixer with 48-bit internal resolution
TotalMix latency-free submixes and perfect ASIO Direct Monitoring
Interface USB 2.0, bus-powered
Software Comes with DIGICheck, RME's ultimate measurement, analysis and test tool
Drivers Windows Vista/7/8 (Multi-Client operation of ASIO 2.3 and WDM)
Mac OS X (10.6 or up, Core Audio, Core MIDI)
Inputs/Outputs 2 x MADI I/O, optical and coaxial (BNC)
MIDI input and output via virtual MIDI port
Clock modes master (internal) and slave (MADI input)
Sample rates 44.1, 48, 88.2, 96, 176.4, 192 kHz, variable (Sync/DDS)
Jitter < 1 ns, internal and all inputs
Jitter sensitivity PLL operates even at 100 ns Jitter
Redundancy Seamless Redundancy operation with both inputs
TotalMix 2048 channel mixer with 48-bit internal resolution
TotalMix latency-free submixes and perfect ASIO Direct Monitoring
Interface USB 2.0, bus-powered
