RME TCO-HDSP Time Code Option for HDSP and Digi Series
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

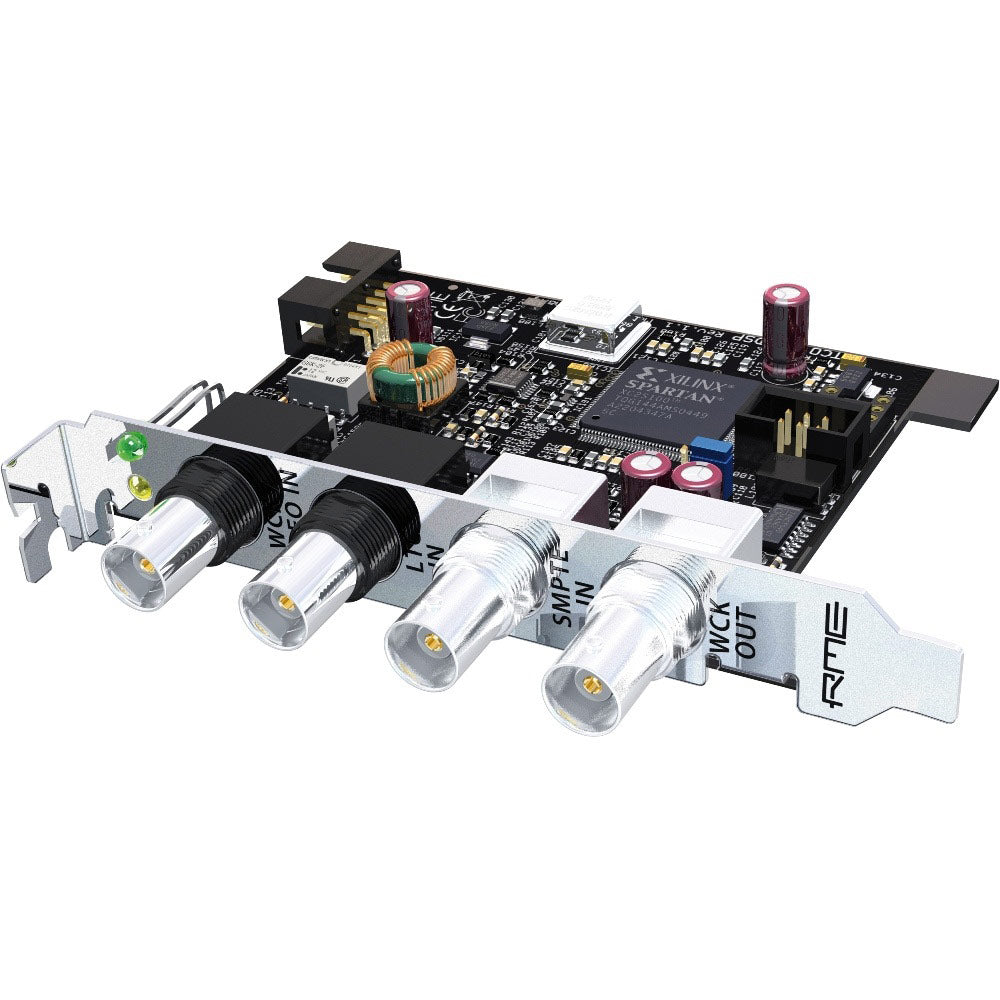

The TCO module is an optional extension for selected RME cards. Placed in a free slot of the computer chassis the TCO will be connected with the main card via a flat ribbon cable. The small module provides the HDSPe cards with a Word Clock input and offers a synchronization to LTC and video. Thanks to SteadyClock(TM), the TCO not only extracts absolute positions from LTC, but also a very clean low-jitter word clock from LTC and video. Thus a sample accurate timecode synchronization to audio or video sources is assured. One single TCO can be used with different HDSP/HDPe cards at the same time (multicard).
Features
- 1 x Word Clock I/O
- 1 x Video Sync Input (alternative to WC In)
- 1 x LTC I/O
- Supported Cards
-HDSP AES-32
-HDSPe AIO, RayDAT, AES, MADI, PCI Card.
-No HDSPe MADI FX.
-No RPM.
-No MADIface.
| LTC In | |||||
| BNC |
