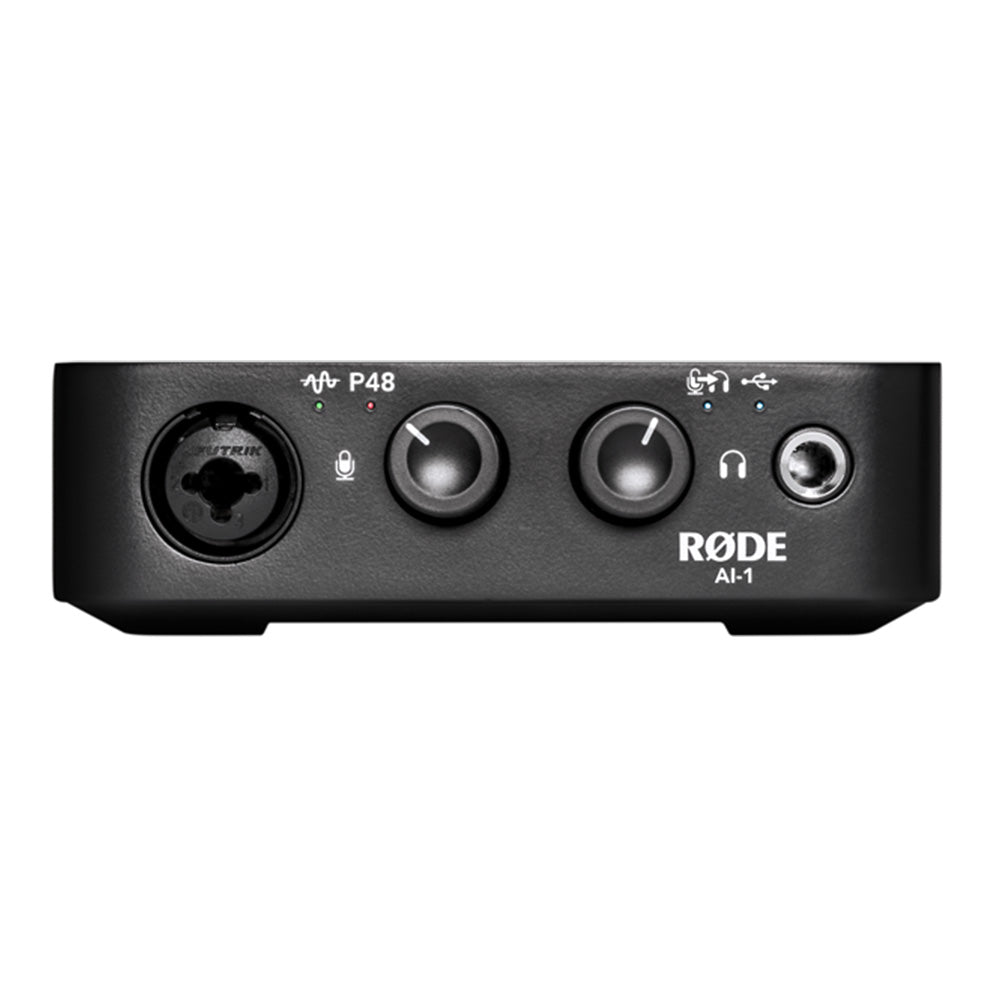

RODE AI-1 Compact USB Audio Interface


  • Dale #:

    RODE-AI1USBAUDIOINTERFACE
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm

Description

RODE's AI-1 Audio Interface is stacked with incredible technology to ensure recording on your computer is easy, versatile and sounds superb. The Complete Studio Kit comes with the AI-1, RODE's peerless NT1 large diaphragm condenser microphone, a shock mount and all cables. As for inputs: the AI-1... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

RODE's AI-1 Audio Interface is stacked with incredible technology to ensure recording on your computer is easy, versatile and sounds superb. The Complete Studio Kit comes with the AI-1, RODE's peerless NT1 large diaphragm condenser microphone, a shock mount and all cables.

As for inputs: the AI-1's got both kinds...
The AI-1's single input is a Neutrik Combo Jack, which takes both a 3-pole XLR (common to most microphones) and a quarter-inch jack common to most electric instruments like guitar, bass et al. Layering tracks is as easy as plug in, set level and go.

Superior Headphone Amplifier onboard
Not only does the AI-1 deliver crystal clear audio to your computer software, but headphones have never sounded sweeter thanks to the discrete studio-quality headphone output and level control.

Ableton Live Lite
Live 9 Lite is a customized version of the music making software Ableton Live, and is included with every AI-1 interface.

More +

Product Specs

Computer Connectivity USB
Form Factor Desktop
Simultaneous I/O 1 x 2
Number of Preamps 1
Phantom Power Yes
Bit Depth 24-bit
Sample Rates 44.1 kHz
48 kHz
88.2 kHz
96 kHz
Analog Inputs 1 x Neutrik XLR-1/4” combo
Analog Outputs 2 x 1/4” (impedance balanced)
1 x 1/4” (headphones)
Direct Monitor Yes
USB 1 x USB Type C
Bus Powered Yes
OS Requirements Mac OS 10.10 or later
Windows 7 or later
Power USB bus-powered
Depth 100mm total (with knobs)
chassis: 88mm
Width 124mm
Height 38mm
Weight 1lb 3.7oz
560g
Advanced Specifications
INPUT
XLR/MIC INPUT
Dynamic Range 104dBA
Equivalent Input Noise @ Maximum Gain (Source Impedance 150 ohms, 20Hz-20kHz, A-weighted) –128dBA
Frequency Response (Measured after ADC) 20Hz – 20kHz better than ±1dB
Gain Range 0dB – >45dB
Input Impedance 1.3k Ohms
INSTRUMENT INPUT
Dynamic Range 99dBA
Frequency Response (Measured after ADC) 20Hz – 20kHz better than ±1dB
Gain Range 0dB – >45dB
Input Impedance 900k Ohms
OUTPUTS
MONITOR OUTPUTS
Maximum Output Level -6dBu
Frequency Response 20Hz – 20kHz better than ±1dB
HEADPHONE
Max output power at 1% THD 32Ohms – >210mW
300Ohms – >390mW

More +
