Description

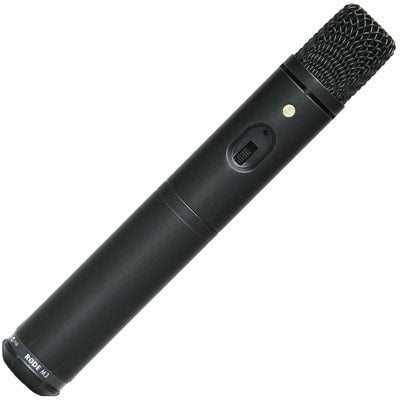

Rode M3 Studio and Location Multi Powered Condenser MicrophoneThe M3 is an extremely versatile microphone that is at home in the studio, on location, or wherever a low-noise wide-response cardioid condenser microphone is demanded. An end address condenser microphone, the M3 features a heavy-duty metal body, category leading low self-noise, three stage PAD (O, -10db, -20db), a battery status LED and a High Pass Filter.
The M3 also comes complete with windshield and a stand mount, and can be powered via a 9V battery or 24-48V Phantom.
- Rugged metal body
- Internal capsule shock mount
- Switchable High-Pass Filter @ 80Hz-12dB/Oct
- Three step PAD - Flat, -10dB and -20dB
- Low handling noise
- Heat treated high strength head mesh
- 9V battery power or 24/48V phantom power
- Battery status indicator
Power | P48 (48V), P24 (24V) phantom supply or 9V battery |
Acoustic Principle | Pressure gradient |
Directional Pattern | Cardioid |
Frequency range | 40 Hz - 20 kHz |
Output impedance | 200Ω |
Signal noise ratio | 73dB SPL (A - weighted per IEC651) |
Equivalent noise | 21dBA SPL (A - weighted per IEC651) |
Maximum SPL | 142dB (@1kHz, 1% THD into 1kΩ load) |
Maximum output voltage | +9.22dBu (@ 1kHz, 1% THD into 1KΩ load) |
Sensitivity | -40 dB re 1 Volt/Pascal (10 mV @ 94 dB SPL) +/- 3 dB @ 1kHz |
Weight | 390gm |
Dimensions | 225mmH x 33mmW x 33mmD |
