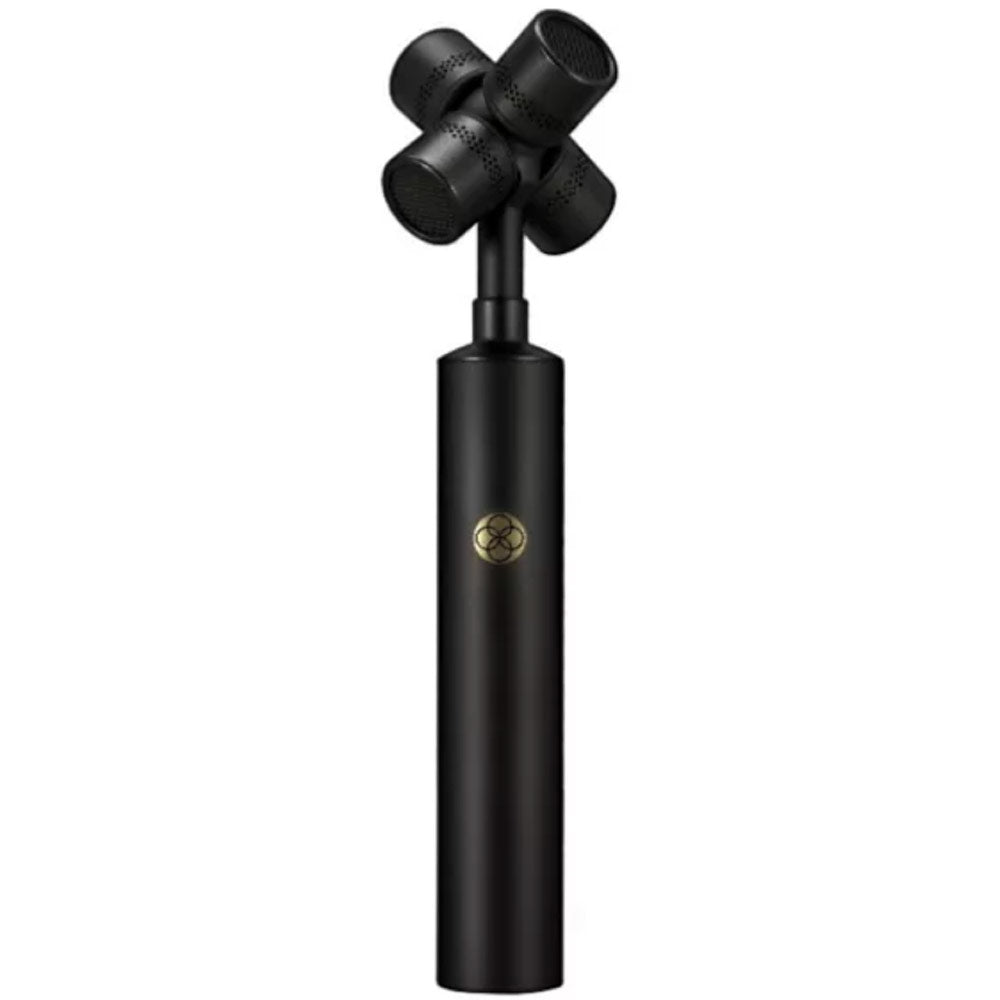

RODE NT-SF1 - SoundField 360-Degree Ambisonics Microphone Kit
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
SoundField invented the ambisonic microphone, A-Format™, and B-Format™ audio, revolutionizing 3D audio production. RODE revolutionized the microphone industry, using advanced manufacturing techniques to deliver broadcast-quality precision microphones at accessible prices. Now, for the first time, the magic of these two iconic brands has come together.
Record. Everything.
The NT-SF1 records the entire spherical sound field. Every sound, every direction, perfectly. This means that later, in post-production, you can manipulate the sound. Alter the mic directivity, position, and rotation. Create a full 7.1.4 surround mix. Create a fully head-tracked 360-degree soundscape for immersive video. Whether recording opera, a swamp or a feature film, the NT-SF1 offers unparalleled quality and flexibility.

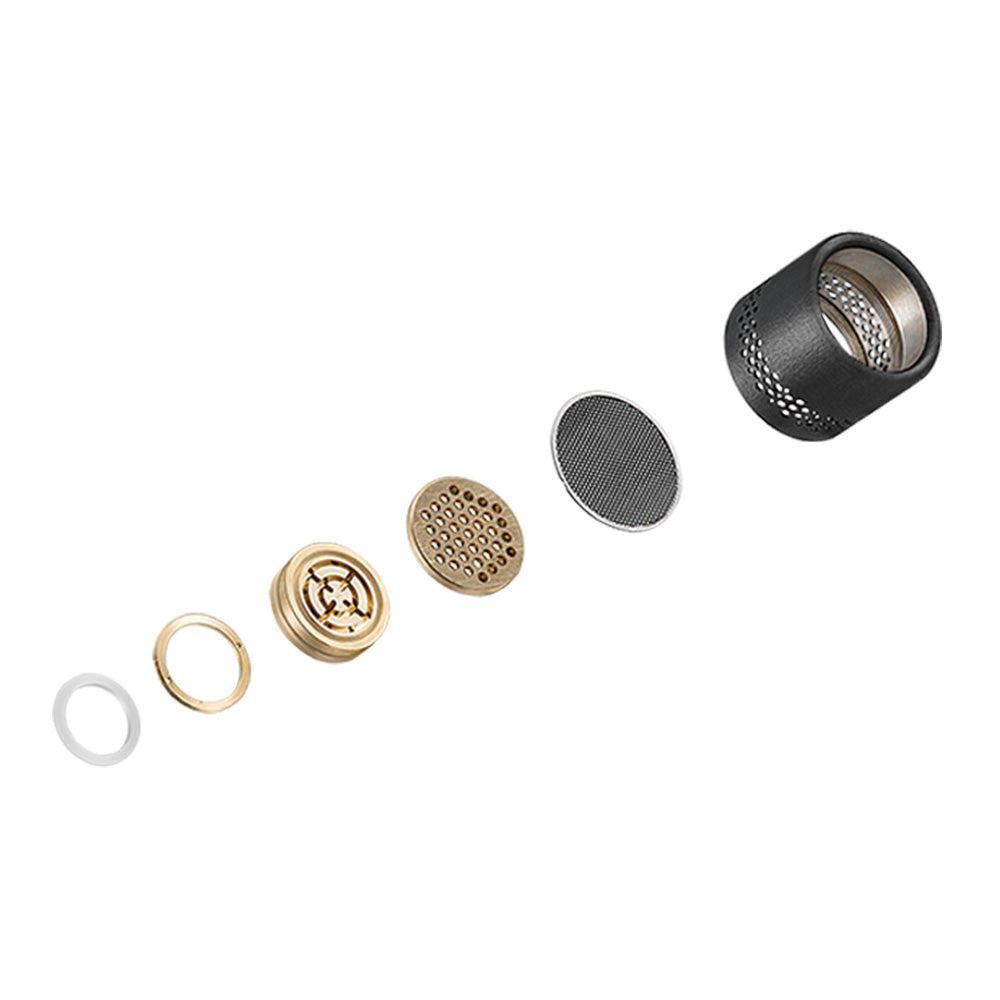

The TF-45C Capsule
At the heart of the NT-SF1 is the brand-new TF-45C true condenser capsule. This completely new design breaks new ground in precision manufacturing. Created in-house at RODE's Sydney HQ, it is machined to tolerances of less than 1 micron in their state of the art fabrication facilities. The result is a capsule with breathtaking clarity, sonic purity and exceptionally low noise.

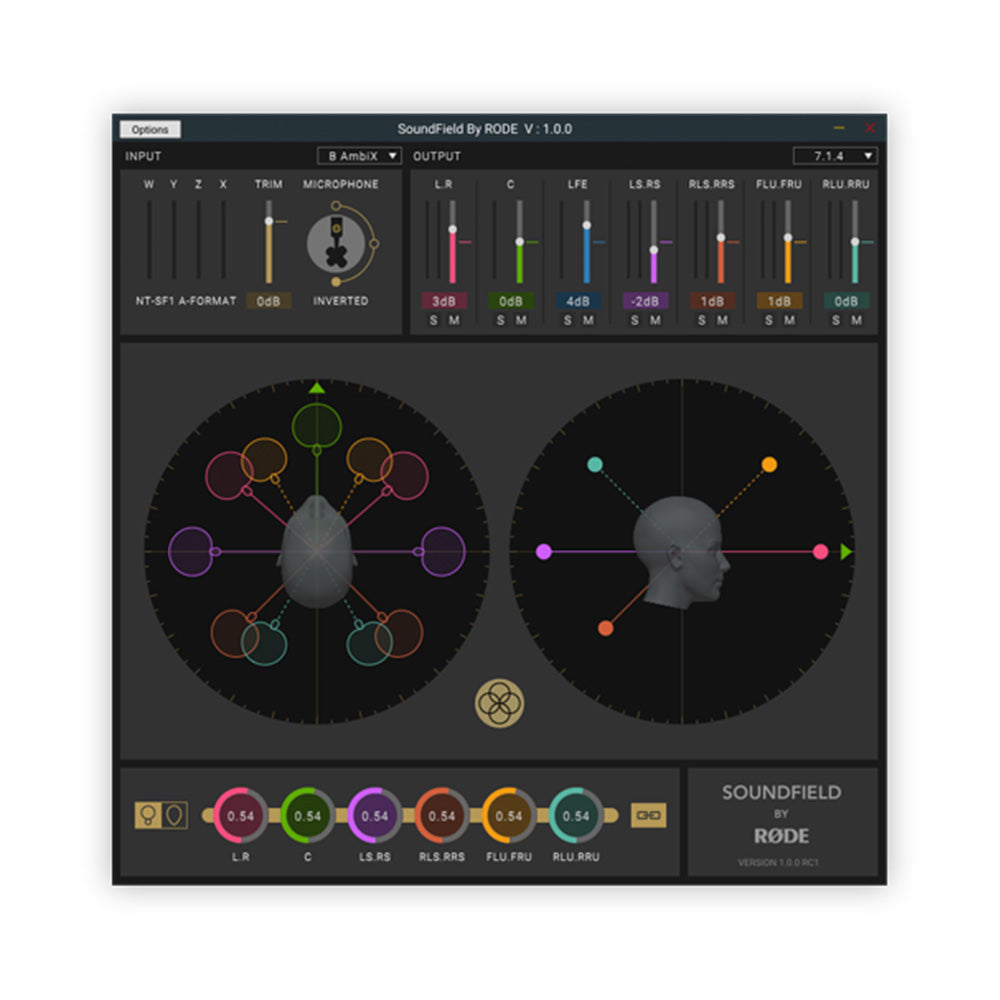

The SoundField by RODE Plugin processor
The new NT-ST1 is perfectly matched to the new SoundField by RODE plugin ambisonic processor. The new SoundField by RODE plugin has been designed to offer the most accurate spatialization and sound reproduction when used with the NT-SF1.
Accessories

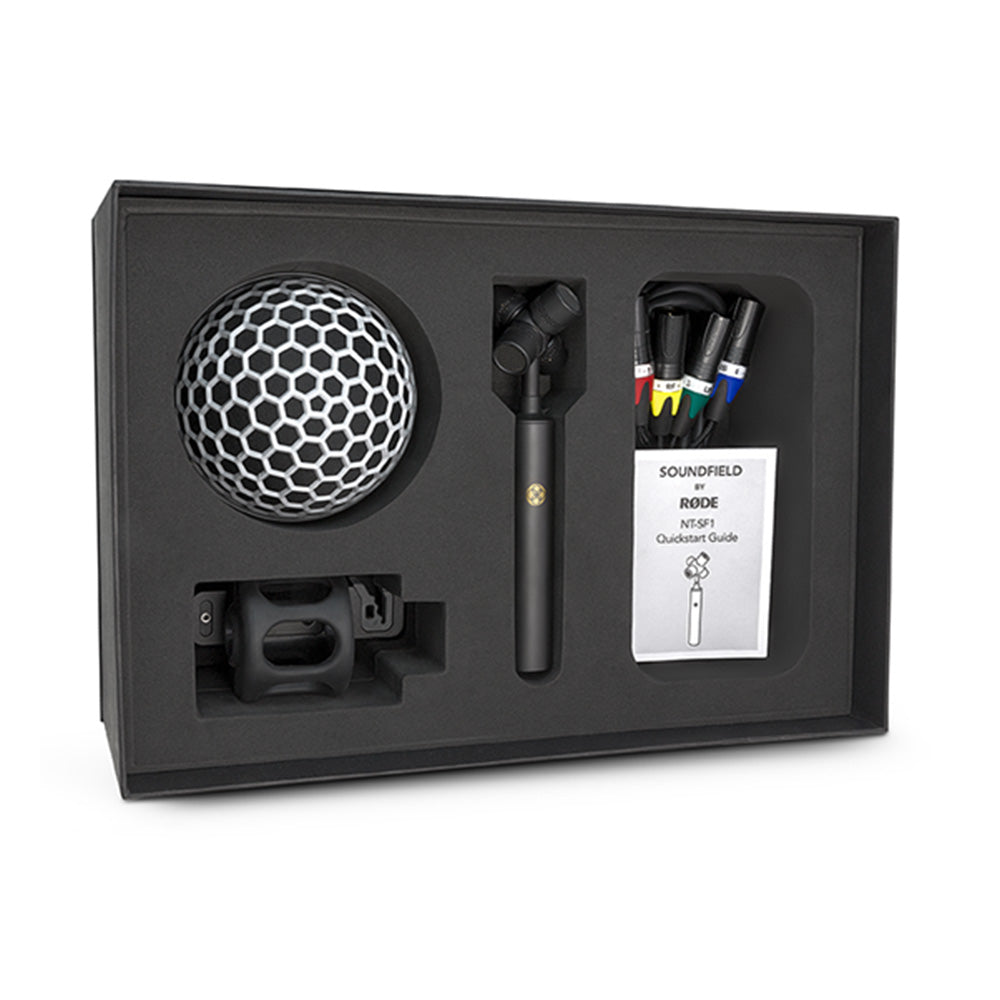

The NT-SF1 comes in a full kit, including custom suspension shock mount, blimp-style windshield and furry wind cover. It is all shipped in a beautiful presentation box.
Applications
The NT-SF1 is the perfect mic for a range of applications, from music recording through to capturing 3D soundscapes for VR applications. As productions increasingly require the use of surround or multi-channel spatial reproduction, the NT-SF1 should be part of every sound recordist's arsenal.
In The Box:
- NT-SF1
- NT-SF1 Shock Mount
- Pop Shield (Blimp Style)
- Dead Cat
- 4-Way Mic Cable
| ACOUSTICS / ELECTRICAL SPECIFICATION | |
| Acoustic Principle | Externally Biased Condenser |
| Active Electronics | Active Electronics JFET impedance converter with bipolar output buffer |
| Polar Pattern | Cardioid x 4 |
| Frequency Range | 20Hz - 20kHz |
| Output Impedance | 63? |
| Equivalent Noise (A-weighted) | 15 dBA |
| Maximum SPL | 129 dB SPL |
| Sensitivity | -30.4 dB re. 1 Volt/Pascal (30mV @ 94dB SPL, 1kHz) |
| Power Requirements | 6.2mA @ 48V (Per Channel) Phantom Power |
| MECHANICAL SPECIFICATION | |
| Material | Brass |
| Colour | Black |
| Weight (g) | 286 |
| Dimensions (L x W x H, mm) | 45.7 w 192.3 x 45.7, diameter of body: 25.1 |
SoundField invented the ambisonic microphone, A-Format™, and B-Format™ audio, revolutionizing 3D audio production. RODE revolutionized the microphone industry, using advanced manufacturing techniques to deliver broadcast-quality precision microphones at accessible prices. Now, for the first time, the magic of these two iconic brands has come together.
Record. Everything.
The NT-SF1 records the entire spherical sound field. Every sound, every direction, perfectly. This means that later, in post-production, you can manipulate the sound. Alter the mic directivity, position, and rotation. Create a full 7.1.4 surround mix. Create a fully head-tracked 360-degree soundscape for immersive video. Whether recording opera, a swamp or a feature film, the NT-SF1 offers unparalleled quality and flexibility.
The TF-45C Capsule
At the heart of the NT-SF1 is the brand-new TF-45C true condenser capsule. This completely new design breaks new ground in precision manufacturing. Created in-house at RODE's Sydney HQ, it is machined to tolerances of less than 1 micron in their state of the art fabrication facilities. The result is a capsule with breathtaking clarity, sonic purity and exceptionally low noise.
The SoundField by RODE Plugin processor
The new NT-ST1 is perfectly matched to the new SoundField by RODE plugin ambisonic processor. The new SoundField by RODE plugin has been designed to offer the most accurate spatialization and sound reproduction when used with the NT-SF1.
Accessories
The NT-SF1 comes in a full kit, including custom suspension shock mount, blimp-style windshield and furry wind cover. It is all shipped in a beautiful presentation box.
Applications
The NT-SF1 is the perfect mic for a range of applications, from music recording through to capturing 3D soundscapes for VR applications. As productions increasingly require the use of surround or multi-channel spatial reproduction, the NT-SF1 should be part of every sound recordist's arsenal.
In The Box:
- NT-SF1
- NT-SF1 Shock Mount
- Pop Shield (Blimp Style)
- Dead Cat
- 4-Way Mic Cable
| ACOUSTICS / ELECTRICAL SPECIFICATION | |
| Acoustic Principle | Externally Biased Condenser |
| Active Electronics | Active Electronics JFET impedance converter with bipolar output buffer |
| Polar Pattern | Cardioid x 4 |
| Frequency Range | 20Hz - 20kHz |
| Output Impedance | 63? |
| Equivalent Noise (A-weighted) | 15 dBA |
| Maximum SPL | 129 dB SPL |
| Sensitivity | -30.4 dB re. 1 Volt/Pascal (30mV @ 94dB SPL, 1kHz) |
| Power Requirements | 6.2mA @ 48V (Per Channel) Phantom Power |
| MECHANICAL SPECIFICATION | |
| Material | Brass |
| Colour | Black |
| Weight (g) | 286 |
| Dimensions (L x W x H, mm) | 45.7 w 192.3 x 45.7, diameter of body: 25.1 |
