Rode NT6 Compact Condenser Microphone with Detatchable Capsule for Versatile Placement
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

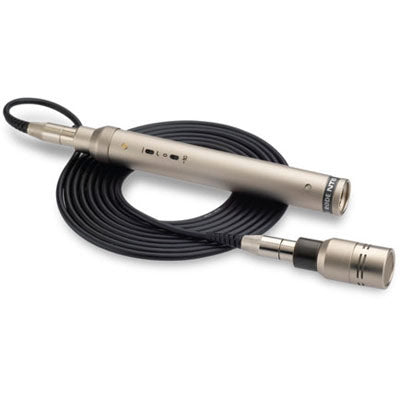

The RODE NT6 Compact 1/2" Condenser Microphone with Detachable Capsule (head) is specifically designed for difficult mounting applications. Although clearly relevant to instrument miking, the new NT6 is extremely well suited to any situation where a small 'unobtrusive' but powerful microphone system is required.
The 1/2" (externally biased) gold sputtered capsule is designed to attach to a custom made, multi-position swivel mount allowing it to be independently positioned with ease. The capsule is connected to the remote pre-amplifier (body) by a custom 3m Kevlar fibre reinforced cable.
The surface-mount pre-amplifier circuit also incorporates a two position variable pad: 0 dB and -10 dB attenuation, and a 2-position variable high-pass filter that enables you to step from a flat response to 80Hz high pass filter; both conveniently located away from the capsule, providing additional control without the need to move the capsule once in position. Features:
- Externally biased condenser
- Gold sputtered 1/2" capsule
- Two position PAD - 0dB and -10dB
- Two position High-Pass Filter - flat and 80Hz
- Convenient two-axis swivel mount and 3m Kevlar fibre reinforced cable included
- Heavy-duty satin-nickel plated body
- Surface mount circuitry
- Low noise and full frequency response
%20is%20specifically%20designed%20for%20difficult%20mounting%20applications.%20Although%20clearly%20relevant%20to%20instrument%20miking,%20the%20new%20N...
){kind=link}
| Power | P48 (48V), P24 (24V) phantom supply |
| Acoustic Principle | Pressure gradient |
| Directional Pattern | Cardioid |
| Frequency range | 40Hz-20kHz, selectable HPF @ 80Hz/12dB/octave |
| Output impedance | 200Ω |
| Signal noise ratio | 75 dB SPL (A - weighted per IEC651) |
| Equivalent noise | 19 dB SPL (A - weighted per IEC651) |
| Maximum SPL | 135dB SPL (@ 1kHz, 1% THD into 1KΩ load) (145dB with maximum PAD) |
| Maximum output voltage | +6dBu (@ 1kHz, 1% THD into 1KΩ load) |
| Sensitivity | -37 dB re 1 Volt/Pascal (16 mV @ 94 dB SPL) +/- 2 dB @ 1kHz |
| Weight | 386gm |
| Dimensions | 188.4mmH x 64mmW x 20mmD |
The RODE NT6 Compact 1/2" Condenser Microphone with Detachable Capsule (head) is specifically designed for difficult mounting applications. Although clearly relevant to instrument miking, the new NT6 is extremely well suited to any situation where a small 'unobtrusive' but powerful microphone system is required.
The 1/2" (externally biased) gold sputtered capsule is designed to attach to a custom made, multi-position swivel mount allowing it to be independently positioned with ease. The capsule is connected to the remote pre-amplifier (body) by a custom 3m Kevlar fibre reinforced cable.
The surface-mount pre-amplifier circuit also incorporates a two position variable pad: 0 dB and -10 dB attenuation, and a 2-position variable high-pass filter that enables you to step from a flat response to 80Hz high pass filter; both conveniently located away from the capsule, providing additional control without the need to move the capsule once in position. Features:
- Externally biased condenser
- Gold sputtered 1/2" capsule
- Two position PAD - 0dB and -10dB
- Two position High-Pass Filter - flat and 80Hz
- Convenient two-axis swivel mount and 3m Kevlar fibre reinforced cable included
- Heavy-duty satin-nickel plated body
- Surface mount circuitry
- Low noise and full frequency response
| Power | P48 (48V), P24 (24V) phantom supply |
| Acoustic Principle | Pressure gradient |
| Directional Pattern | Cardioid |
| Frequency range | 40Hz-20kHz, selectable HPF @ 80Hz/12dB/octave |
| Output impedance | 200Ω |
| Signal noise ratio | 75 dB SPL (A - weighted per IEC651) |
| Equivalent noise | 19 dB SPL (A - weighted per IEC651) |
| Maximum SPL | 135dB SPL (@ 1kHz, 1% THD into 1KΩ load) (145dB with maximum PAD) |
| Maximum output voltage | +6dBu (@ 1kHz, 1% THD into 1KΩ load) |
| Sensitivity | -37 dB re 1 Volt/Pascal (16 mV @ 94 dB SPL) +/- 2 dB @ 1kHz |
| Weight | 386gm |
| Dimensions | 188.4mmH x 64mmW x 20mmD |
